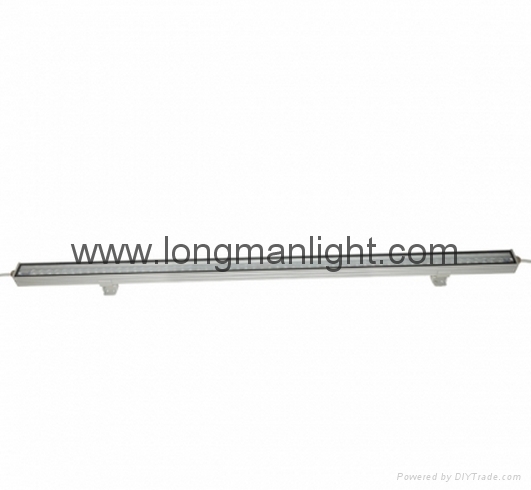

| Model: | Excelsior 60FRG |
|---|---|
| Brand: | Longman |
| Origin: | - |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | ed stage lighting , wall washer |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:18 Apr, 2016 |
Features:
1)3 circuits pubilc positive cable Constant PWM dimming, could connects with 4 cables V+ 4mm, 3*V- 2.5mm.
2)1 D-D-R3 controller could support 25 PCS fixtures.
3)each fuxture with 1 D-D-R3A could controll independently
4)60 PCS LED in 2 layers , better light distribution, 61*19 degree available
5)530Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle
6)Good color mixing, SDC<0.005, wash wall with no sawtooth.
7) Could work with third party CV PWM controller, any signal it work is OK, DMX, SPI, Differential, 10V
8)Field Angle standard 30°, could choose other angle, and also frosted piece and third optical piece.
9)With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.
Specifications:
| Voltage input | DC24V, PF>0.95 |
| Rated Power | 15W（11.8W@24V Full on） |
| Luminaire Efficiency | >45lm/W，with high brightness Green Color |
| LED Lumens | 60pcs*0.2W Full RGB LED each chip 20mA driving total 530 Lumens output |
| LED Color | R=625nm，G=525nm，B=460nm，offer multi-Color mixing，SDC<0.005 |
| Field Angle(10%) | standard 45 °（1173Cd on axis）、8°、15°、30°、61*19°、75*10°Etc optional |
| Control signal | Constant Voltage PWM Dimming, public positive Cable 3 circuits |
| Dimming Curve | 8 bit linear diming, PWM>400Hz, fliker free |
| Housing material | Extrusion 6063, anodized Matte silver, customized other color and barndoor |
| Safty | Class III, 4C*0.75mm2 VDE cable, Flame Rating V-1, Protect Rated IP66 |
| Operate temperature | -20~+45℃, Light board peak temperature 60℃ |
| Cerficated | Product pass CE, Rohs Etc |
| Weight | 2KG，with 2mm thick double bracket |
| Size | 1006*62*41mm |
