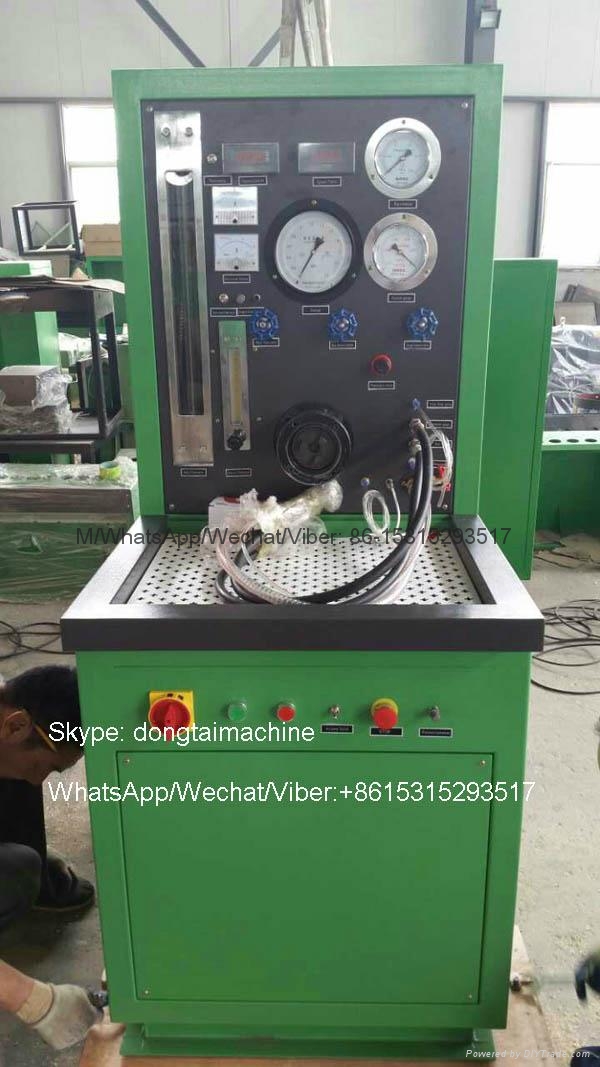

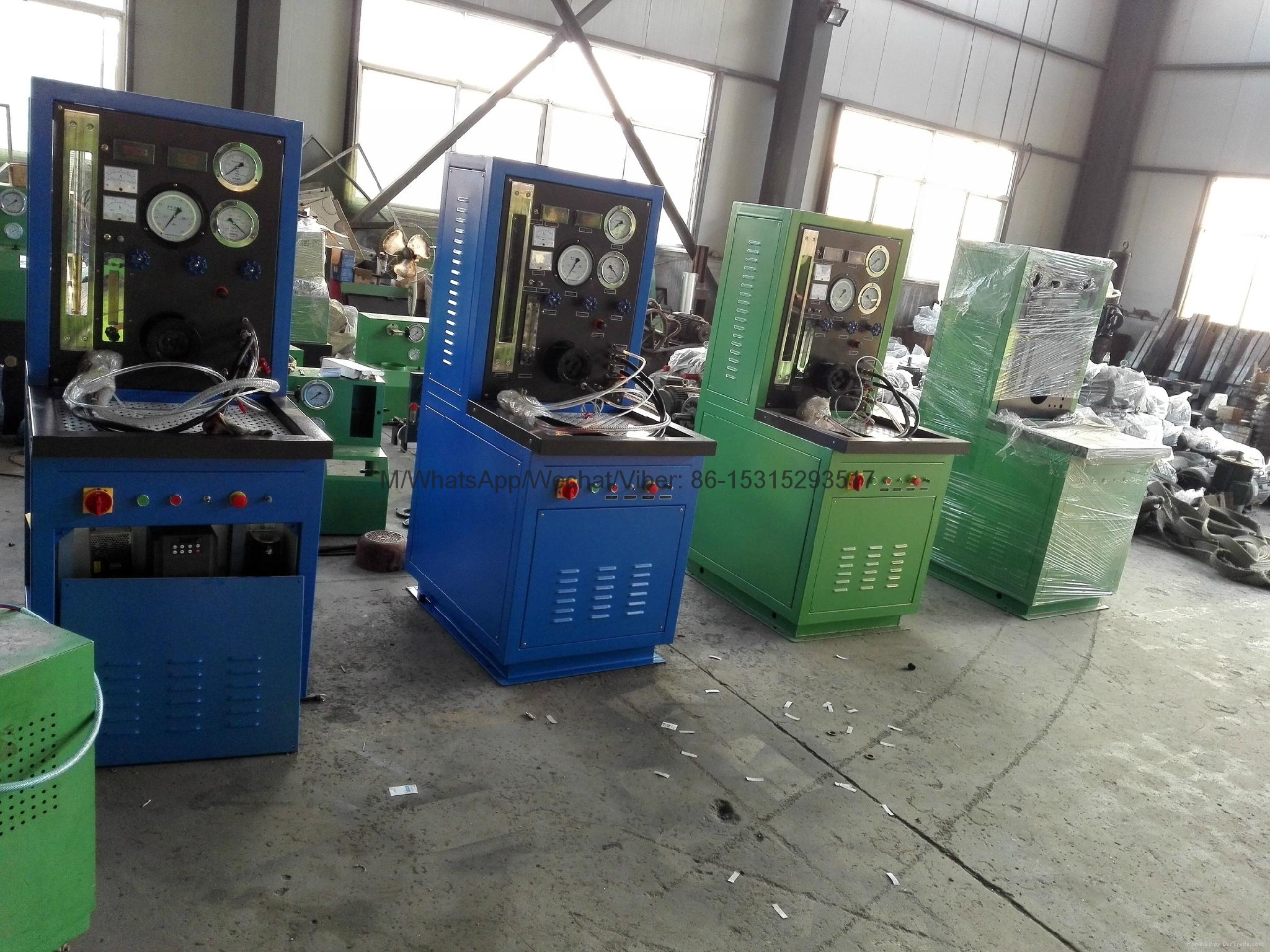

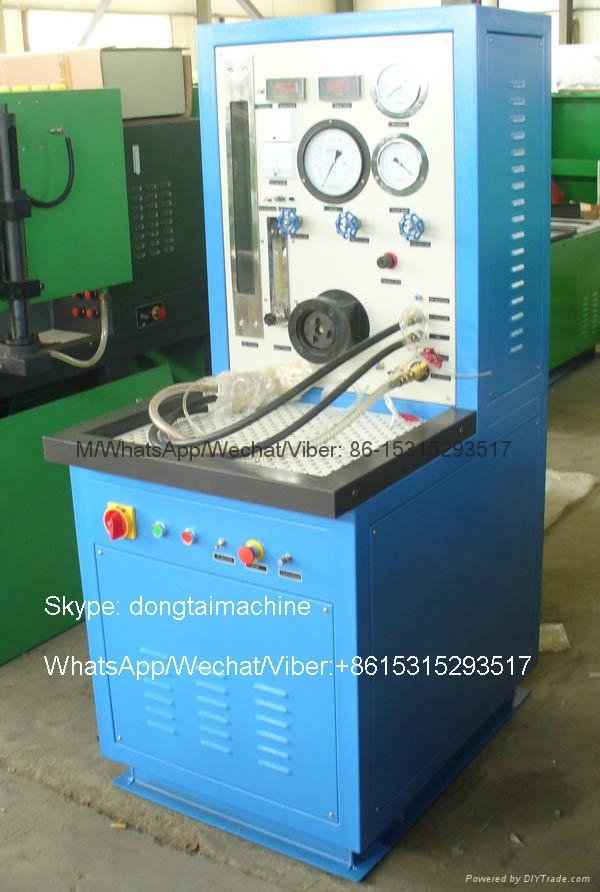

PT212 PT CUMMINS PUMP TEST BENCH

PT 212 PT fuel pump Test bench is special equipment used to provide test and calibration for CUMMINS PT fuel pump. It has abundant functions, high measure precision, and fast sampling.

For instance: Fit for: PT(G), PT(G)VS, PT(G)MVS, PTGSVS, PTGAFC, PTGAFC-VS, PTR, PTH-VS fuel pumps etc and damping ASA valve.

Functions

1.Gear pump pressure and vacuum test

2. Idle speed test

3. Weight assistant pressure test

4. Pressure and flow test in every check point

5.  AFC test

6. Oil stopping test

7. Route test of throttle

8.  Oil return test of throttle

9.  ASA valve test

10. EFC test

11. Shut down valve test

Main technique parameter

1. Number of test pump           1              Set

2. Oil tank capacity              50              L

3. Oil type                     0              Fuel Diesel

4. Temperature of oil            35+/-2

5. Oil test pressure              400              PSI

6. Air test pressure              250              PSI

7. Gear pump test pressure        600              PSI

8. Oil test demarcated flow   75-720, 710-2400         PPH

9. Oil test leak flow            10-760              ML/MIN

10. Air test flow                0-150             ML/MIN

11. Dimension of stand     710*900*1880
