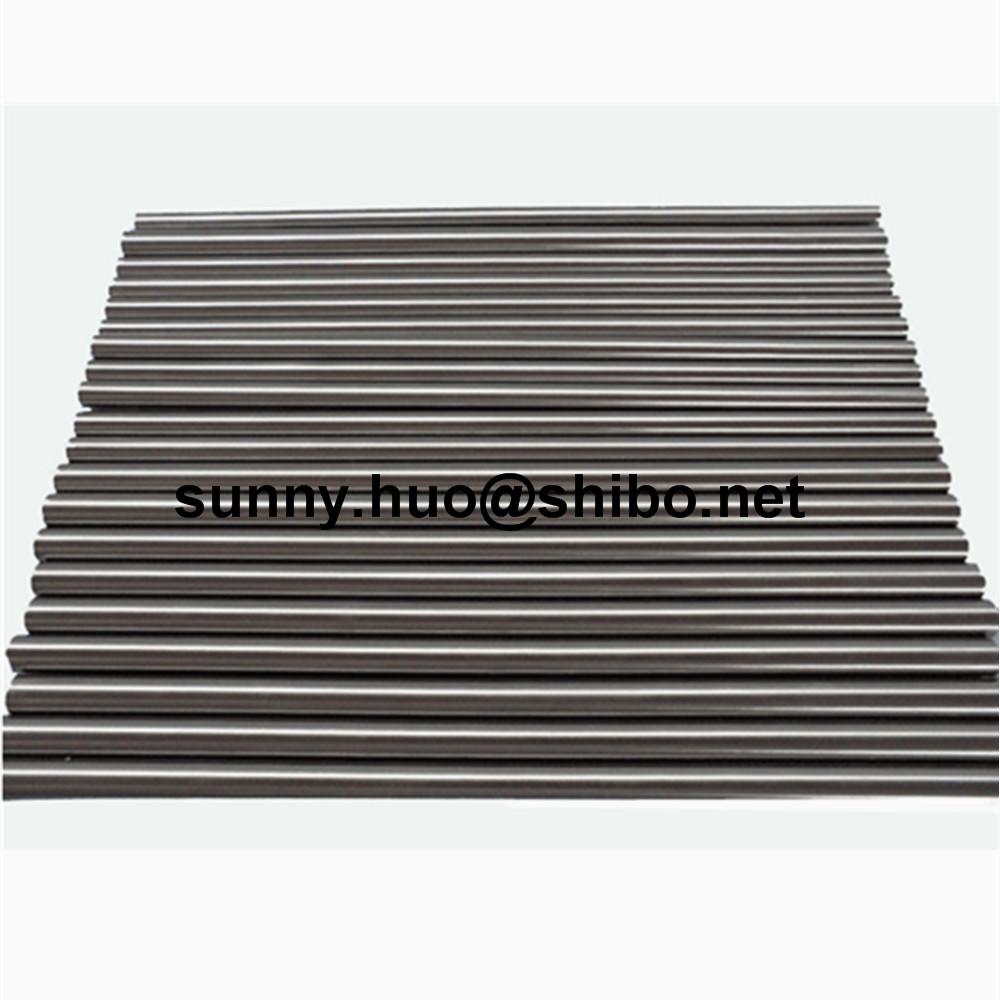

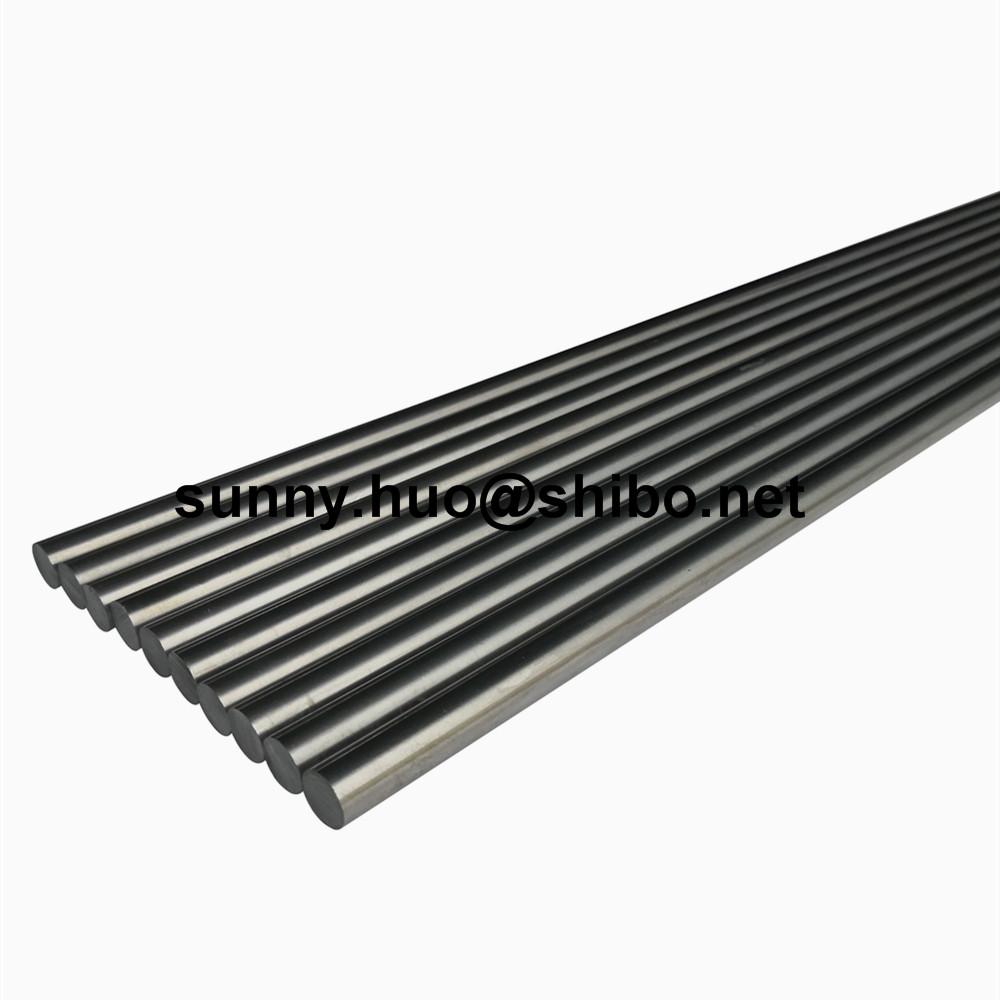

| Model: | SHIBO-moly rod |
|---|---|
| Brand: | SHIBO |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Non-ferrous Metal |
| Label: | molybdenum rod , moly bar , molybdenum |
| Price: |
US $30
/ kg
|
| Min. Order: | 1 kg |
| Live Chat: | Last Online:08 Jul, 2016 |
1) Specification:
Mo content: Mo>=99.95%
Density:>= 10.2g/cm3
Dia: 2.5-120mm
surface:polished,ground,cleaned
2) Surface Finish
Black – Surface is “as swaged or “as drawn”; retaining a coating of processing lubricants and oxides.
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is centerless ground to remove all coating and to achieve precise diameter control
3)Size and tolerance:
|
diameter(mm) |
tolerance of diameter |
length(mm) |
tolerance of length |
|
16-20 |
+1.0 |
300-1500 |
+2 |
|
20-30 |
+1.5 |
250-1500 |
+2 |
|
30-45 |
+1.5 |
200-1500 |
+3 |
|
45-60 |
+2.0 |
250-1300 |
+3 |
|
60-100 |
+3.0 |
250-800 |
+3 |
4)Chemical Composition:
|
Element |
W/% |
Element |
W/% |
|
Pb |
＜0.0001 |
Al |
＜0.0001 |
|
Bi |
＜0.0001 |
Si |
＜0.001 |
|
Sn |
＜0.0001 |
Ca |
＜0.001 |
|
Sb |
＜0.0001 |
Mg |
＜0.001 |
|
Cd |
＜0.001 |
P |
0.0002 |
|
Fe |
0.0050 |
C |
0.0016 |
|
Ni |
0.0007 |
N |
0.0020 |
|
O |
0.0050 |
Mo |
≮99.98 |
5)Applications:
Suitable for producing ion implatation parts
For producing electric light source parts and electric vacuum components
For producing heating elements and refractory parts in high temperature furnaces
Used in glass and glass fiber industry, it can serve a long life in melted glass liquid at 1300℃
Used as electrodes in the field of rare earth metal industry
The advantage of us
1) leading producer, more than 20 years producing experience
2) factory direct sales, low price in the market
3) the whole production line from powder to finished products, top and steady quality assured
4)fast delivery and best sale service
| Payment Terms: | T/T, L/C, western union, paypal |
|---|---|
