| Model: | FV8000L |
|---|---|
| Brand: | RAINBOW |
| Origin: | Made In China |
| Category: | Industrial Supplies / Food, Beverage & Cereal Machine |
| Label: | beer fermenter , fermentation tank , conical fermenter |
| Price: |
US $12000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 Nov, 2022 |
FEATURES:
-Total capacity: 10000L
-Useful capacity: 8000L
-Material:
Inside wall,SUS 304, 3mm
Outside wall, SUS 304, 2mm
-Insulation: polyurethane 100mm
-100%TIG welding with pure argon gas shield
-Cone bottom, 60-72 degree
-Cooling jackets on both cylinder and cone, SUS304, 1.5mm
-Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner
-Dry hopping port on top

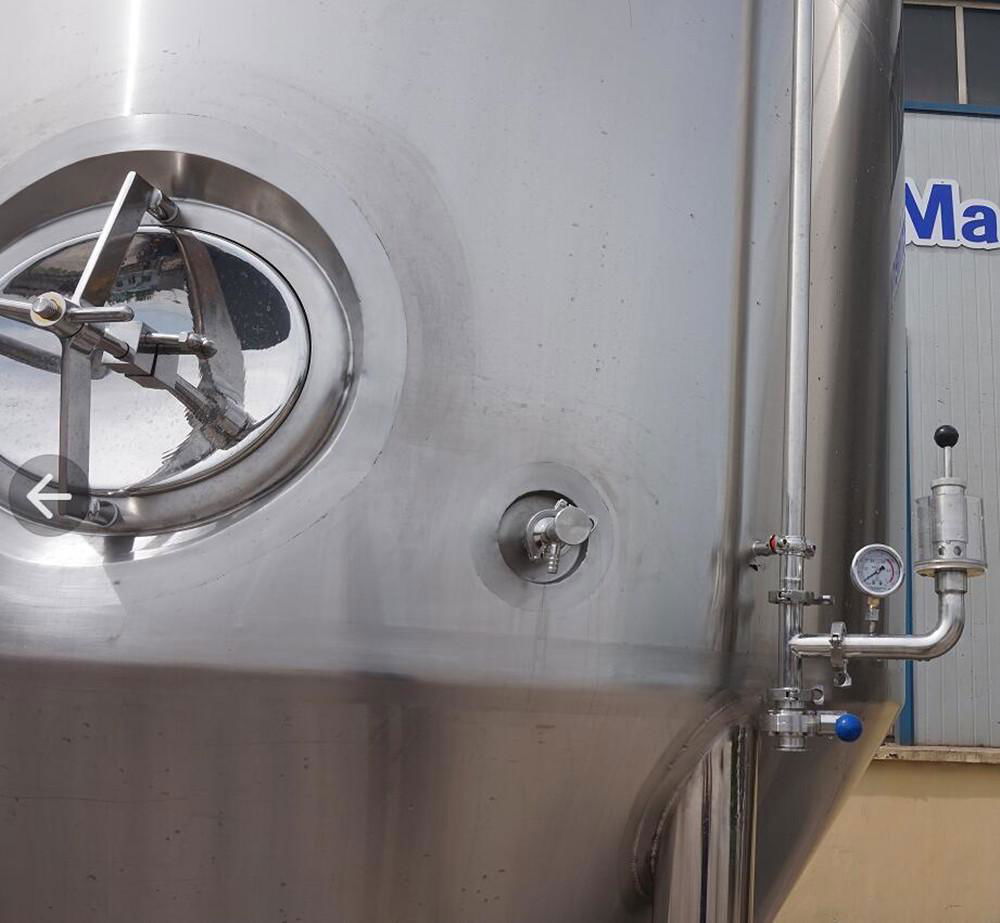

-Side mounted manway
-Carbonation stone(optional)
-Safety&vacuum valve on top
-Sample valve on side
-Test Pressure:0.3 Mpa,Working pressure 0.2Mpa.
-Rotating racking arm on cone with butterfly valve
-Discharge arm with butterflyvalve
-CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperaturesensor: PT100
Optional:
Capacity scope: 100L to 20000L per patch, can be customized
complete beer brewing system, include malt miller, brewhouse system, fermenting system, cooling system, CIP system, controlling system, filter system.
| Payment Terms: | TT/LC |
|---|---|
