| Model: | RM700L |
|---|---|
| Brand: | RAINBOW |
| Origin: | Made In China |
| Category: | Industrial Supplies / Food, Beverage & Cereal Machine |
| Label: | beer machine , brewery line , brewing equipment |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 Nov, 2022 |
COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
MAIN CONFIGURATIONS:
This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.
Optional configuration: 1- mash/brew kettle, lauter tun/whirlpool
2- mash tun, lauter tun, brew kettle/whirlpool
3- mash tun, lauter tun, brew kettle, whirlpool
This is the 500L brewing system configuration for your reference.
|
ITEMS |
EQUIPMENT LIST |
CAPACITY |
QTY |
|
Malt miller |
Malt Miller |
300kg/h |
1 |
|
BrewHouse System |
Mash Tun & Lautering Tun |
500L |
1 |
|
Brew Kettle & Whirlpool |
500L |
1 |
|
|
Hot Liquor Tank |
500L |
1 |
|
|
Plate Heat Exchanger |
5m2 |
1 |
|
|
Wort pump |
3m³/h |
2 |
|
|
Working platform |
|
1 |
|
|
Fermentation System |
Fermentation Tank |
500L |
6 |
|
Yeast Adding Tank |
20L |
1 |
|
|
Wort Oxygenator |
|
1 |
|
|
Cooling System |
Glycol Water Tank |
1000L |
1 |
|
Chiller |
5hp |
1 |
|
|
Cooling water pump |
3m³/h |
1 |
|
|
CIP Washing System |
Alkali Tank |
100L |
1 |
|
Sterilization tank |
100L |
1 |
|
|
CIP water pump |
3m³/h |
1 |
|
|
Control System |
PID controlling system |
1 |
|
Heating source: electric, baine-marie heating, gas fired or steam
Material: stainless steel 304 or copper
Warranty: 36 months for tanks
Main specs of brewhouse and fermentation:

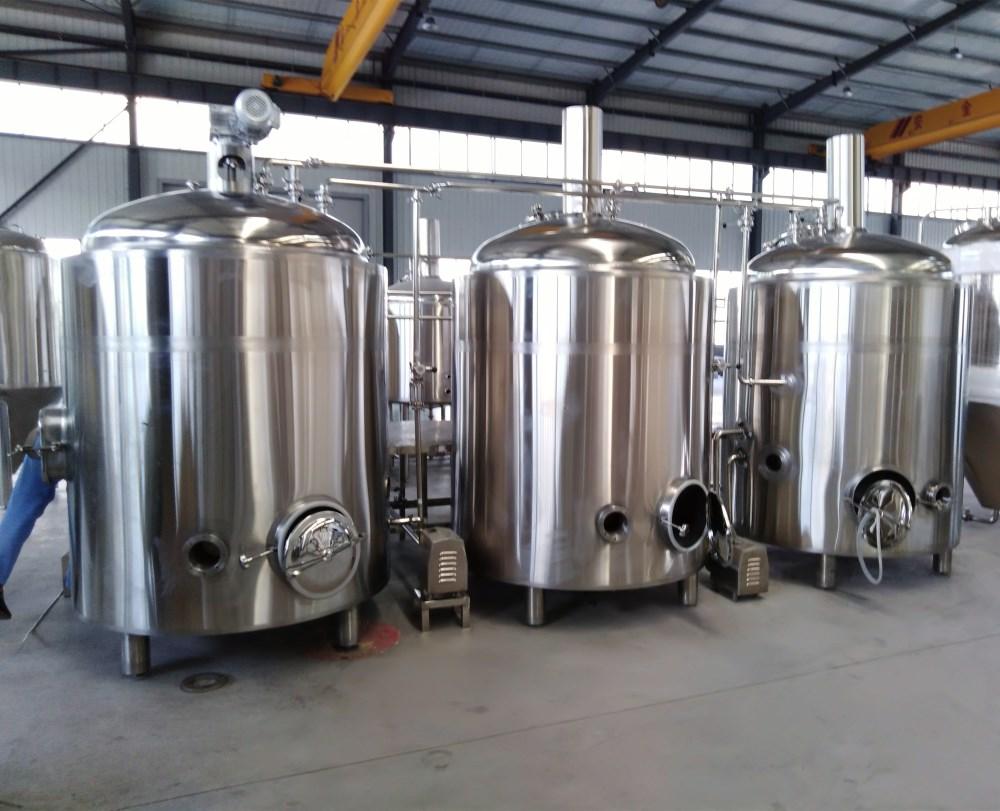

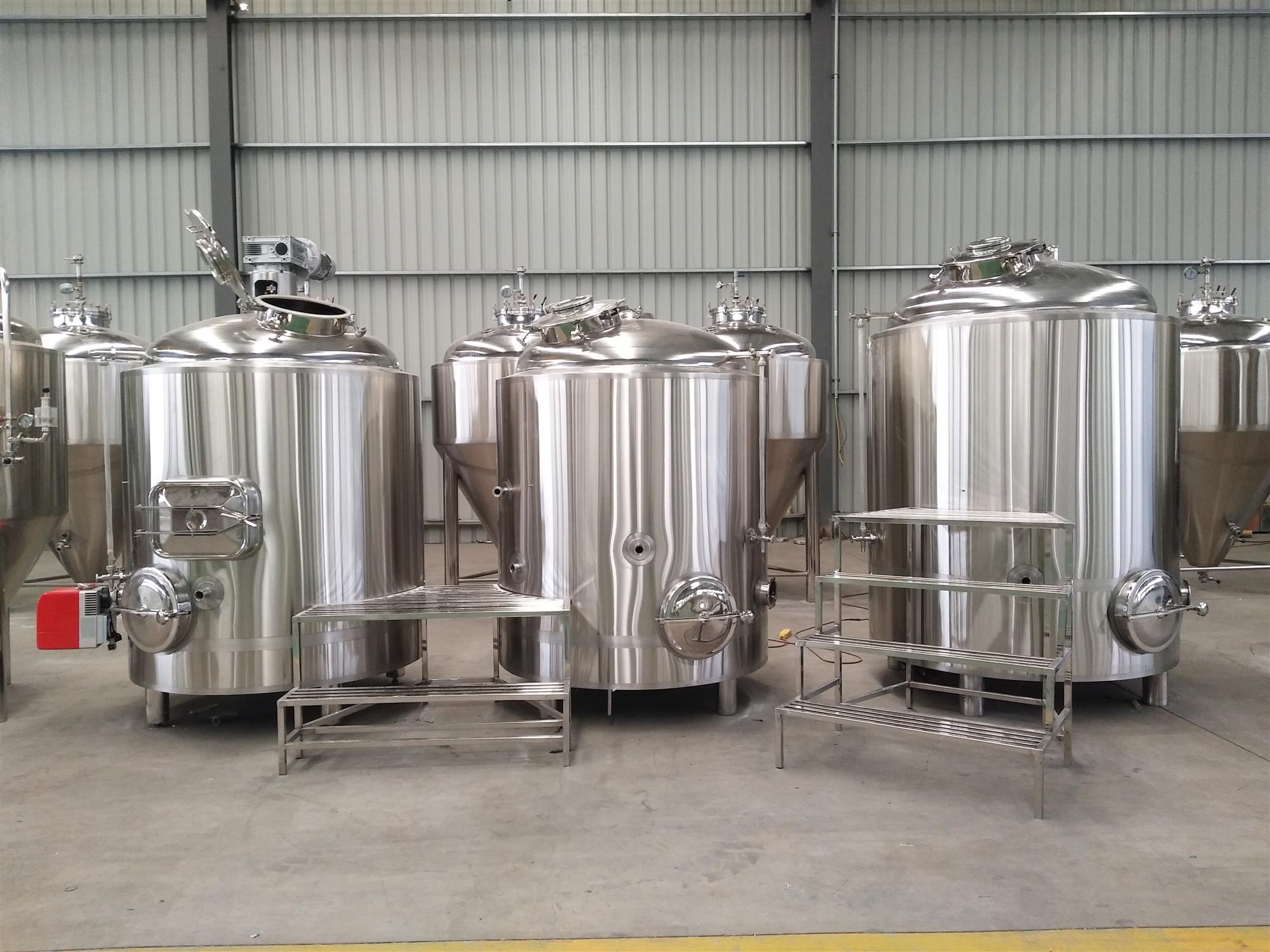

Brewhouse system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304 or copper, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) - insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

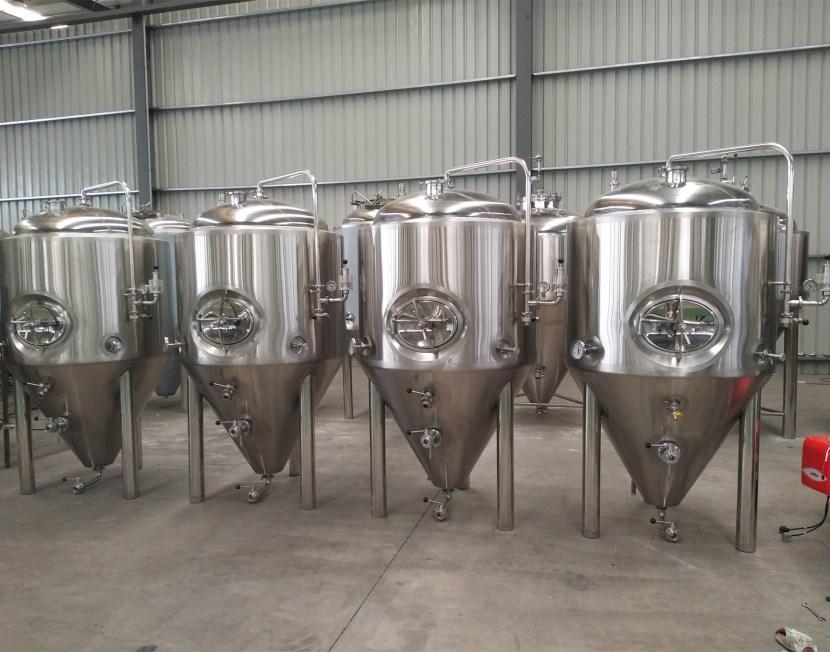

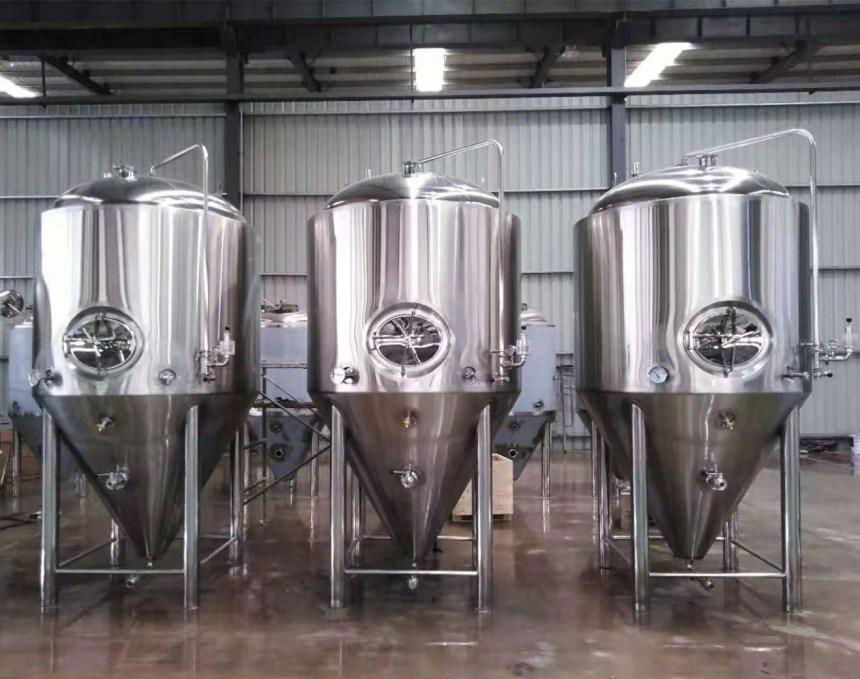

Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Top mounted manway
3) - Insulation: polyurethane 100mm
4) - Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Bung device
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
- dry hops port
-carbonation stone (optional)
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
Tips:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material(SUS304/316/red copper), voltage(like 380v, 50Hz, 3phases), heating method(gas fired, electric or steam heating), etc.
2. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB, UL standard, etc.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine, labelling machine.
Kegs washer and filler
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
| Payment Terms: | TT/LC |
|---|---|
