High-speed 3D Body Scanner 1
  • High-speed 3D Body Scanner 1

High-speed 3D Body Scanner

Model:-
Brand:MH
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:3d body scanner , body scnner , 3d scanner
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

MH Electronics

Free MemberShaan Xi - China
Live Chat:Last Online:16 May, 2016

Product Description

As a world leader for 3D body scanning, we are offering an efficient three dimensional scanner system with highly accurate methods for the acquisition of body dimensions. With a simple calibration procedure and specifically developed hardware and software to handle the system, it enables the contact-free and fully-automated acquisition of body dimensions and an exact, three-dimensional image of the human body. The scanner is unbeatably efficient and gives constant quality in body measurement, and also performs automated measurement based on anatomical reference points.

Fields of Application

Combined with the measuring experience of industrial measuring device and speckle strain gauge, RDS BODYSCAN defines a state-of-the-art machine providing a full range of digitalization for human body .Dynamic and static 3D digitization of the human body and color data acquisition are best achieved within 1.25 Ms. Measurement problems of black hair being successfully solved, this device offers a high-resolution facial scan. With light projectors which are safe and comfortable for people and invisible infrared wavelengths, RDS BODYSCAN has been widely utilized in numerous applications, such as 3D printing, crystal engraving, medical treatment, clothing design, custom clothing, human motion analysis, etc.

Technological Advantage

1)The most-advanced and safest 3D body scan: Projecting on objects surface the optical speckle texture or the flash and invisible infrared wavelengths which are safe and comfortable for people, this device can achieve 3D digitization of the human body and color data acquisition, simultaneously solving black hair problems.

2)High-speed Scan: Multiple sensors, synchronization control and data collection. 3D body scanning is best achieved within 1.25 MS (1/800 sec), an effective solution to the problem of human body shaking.

3)High-performance Scan: High accuracy (0.1mm ~ 0.2mm). Local data density and accuracy can be adjusted according to user needs.

4)Color Scan: simultaneously obtain 3D body geometry data and color texture data.

5)Modular Flexible Combination: Multi-probes modularly assembled and synchronous controlled, the machine can accomplish the human face, head, upper body, local or full-body scanning.

6)Integrated Automated Processing: Multi-sensors, multiple scanning, automatic data fusion, high-speed data processing.

Practical Value

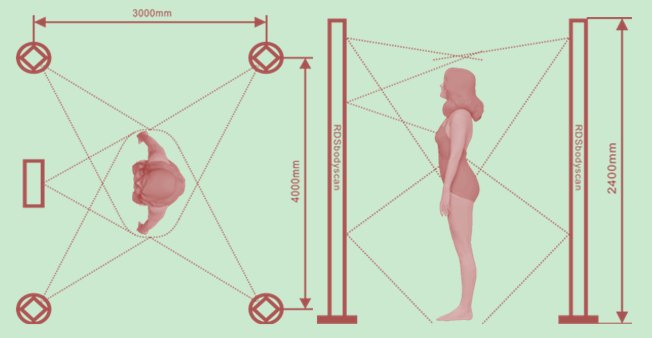

Principles of Measurement

Compared with laser scanners, RDS BODYSCAN does completely no harm to human body, especially to human’s eyes. People can keep eyes open during the whole scanning process.

MHRDS BODYSCAN projecting speckle patterns to body surface, several sets of optical 3D measurement components are simultaneously controlled by computer to complete the image acquisition from all cameras within 100ms. With color images captured by the camera, parameter files of high-precision multi-camera calibration, stereo matching and reconstruction algorithm with independent intellectual property, a 3D color model of the human body can be quickly reconstructed. No stitching is necessary. With high-performance data acquisition, the body scanner supports different 3D data output formats such as .asc, .ply, .stl,.obj, etc.


Product Image

High-speed 3D Body Scanner 1
Img 1
