Labyrinth Irrigation Tape Production Line
Product Description
Equipment Specifications and Technical Parameters:1.�� Extrusder;2.�� Mould;3.�� Forming device;4.�� Cooling system;5.�� Haul-off unit;6.�� Duplex winder.Drip Irrigation tape is widely used in agricultural,Website:http://www.tradehonesty.com, field, and greenhouse cultivation and irrigation to save water and increase production, etc.EquipmentsXRS-?XRS-?Diameter of dripper tube(mm)16mm16mmThickness of dripper tube(mm)0.18-0.2mm0.18-0.2mmExtruding screw60/3065/32Production speed(m/min)(double)60m/min80m/minForming wheel size477.5mm478mmThe main motor power:18.5kw22kwOverall length of the equipment(m)15m�2.5m�2m16m�2.5m�2mFull weight of the equipment(kg)2300kg2500kg
Product Image

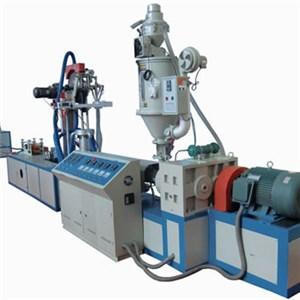

Img 1
