Four wall Polycarbonate sheet

Origin:Made In China
Category:Construction & Decoration / Soundproof Materials
Label:bright-sun pc sheet , Multiwall PC sheet , Polycarbonate sheet
Price: ¥3.9 / kg
Min. Order:3000 kg
Inquire Now Add to Basket

Member Information


Foshan Bright Sun Building Material Co., Ltd.

Free MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:30 Apr, 2017

Product Description

1. Description:

 Item Name: Polycabonate Four-wall sheet
 Thickness: from 6mm to 20mm
 Size: Max width: 2.1m, no limit on length
               Standad size: 2.1m x 5.8m / 2.1m x 11.8m
 Color: Clear, Bronze, Blue, Lake-blue, Green, White, Red, Grey, Yellow, Purple, Orange, etc
☆ Packing: both sides covered with PE protective film, the two sealed with PE sealing tape
 Material: Makrolon Bayer in Germany, Lexan Sabic in Middle East, Dow and Samsung in Korea
 UV: UV layer protection on 1 / 2 sides.
 MOQ: 1000m2 / color / thickness for production, 1x20’ container for shipment
 Delivery time: within 10-15 days.
 Customized colors and dimensions are available.

Products dimension:

Technical Data:

2. Features:

◆ High transparency: 25% - 92% according to different colors.
◆ UV-Protection: co-extrude 50 Micron of UV layer on 1/2 sides, it can absorb 98% of ultra violet radiate, and with anti-condensation      treatment, it's highly weather resistant, durable and non-yellowing.

◆ Light Weight: it’s only 1/12 than that of glass for Hollow sheet, and 1/2  than that of glass for solid sheet in the same thickness. which can save the cost of transportation, unloading, installing and frame supporting.
◆ Impact Strength: 80 times as that  of glass for Hollow sheet, and 200 times as that of glass for Solid sheet. it's unbreakable, and not easy to be damaged during installation.
 Inhibiting Condensation: When outdoor temperature is 0℃, indoor is 23℃, the sheet will not get condensation with Relative humidity as high as 80%.
◆ Thermal Insulation: the K-value of glass is 1.7 times that of Hollow sheet, and 1.2 times that of Solid sheet.
 Sound Insulation: PC sheet have excellent sound insulation capability, especially for PC Hollow sheet. at the same condition of thickness, the sound insulation of PC sheet improve 3-4DB than that of glass. the sound proof feature depends on its hardness, wight, structure,etc. it's wide used for highly sound barrier screen.
◆ Flame Resistance: The self-ignite temperature is 630℃ (wood is 220℃), it’s rated Class B1 according to GB8624-1997. It'll self-extinguishing apart from fire, it does not produce poisonous gases when burned and not contribute to the spread of fire.
◆ Easy Installation: can be bent and easy to cut. Normal cutting tools available, no need special equipment. it can be installed arch, semi-circular roof according to the design. The minimum curving radius is 175 times of same thickness. It can be cold or hot bent for installation, suitable for various shapes.
 Enviromental Friendly: No dangerous for health or the environment according to the definition of ECdIRECTIVES 2006/121/ec or 1999/45/EC and their valid adaptations and delivered national regulations.

3. Application:

★ Sky light system for public and civil.
★ Roof light for office buildings, department stores, hotels, villas, stadiums, schools, amusement centers, hospitals etc.
★ Rain tents, pagodas, hallway tents, corridors, passages, subway entries, walkways.
★ Sound absorption wall for freeways, high-speed railway, Light Rail Transit and MRTS.
★ Indoors swimming pools, sun bath pools, and sidings.
★ Subway exits, parking lots, garage tents, bus-stops, terminals, shopping arcades, large stadium.
★ Robbery counters in banks, bank ATMS, jewelry counters, police Anti-riot shields, bullet-proof material.
★ Safety roof light for airports and plants.
★ Agricultural greenhouses, Conservatories, sun house, zoos, botanical gardens, ecological restaurant.
★ Sign boards, advertising lamp box, Sky-lighting cover.
★  Housing glasses, balcony, indoor partitions, glazing walls, sidewalk, sight window, sunshade, terraces and shower doors.
★ Equipment cover, LED display, Lighting, Basketball backboard, Sightseeing Elevator, Sky-Lighting cover.
★ Use for control panel for Electronic operation control, Touch pad, Temperature controller, Electric water heaters, Electric touched heaters,etc.
★ DIY Awning Canopy.

4. Notice:

There's various of sealants in the market couldn't be suitable for PC sheet installation, it'll be harm to the PC sheet, some of the performance or lifespan can not be synchronized to the PC sheet, that cause the sheet cracked or leaked, here we recommend the following standard requiprement:
1) Neutral silicon  sealants, no smells, ensure non-corrosive to PC sheet or metal.
2) Low modulus of elasticity.
3) High glutinosity, no changed by the attack of wing or snow, ensure tight airpoof effect.
4) Have an excellent extrusion feature and flexibility in the temperature from -20 ℃ to +40℃. The glue gun extrusion can be applied directly.
5) Low shrinkage, no wrinkle during solidify.
6) After solidify, it doesn't become brittle, hardening or cracking at low temperature of -40℃, doesn't soften or degradation at high temperature of +150℃, it always maintain the excellent flexibility.

5. Our Catalogue:

Our main products: Polycarbonate Twin-wall sheet, Triple-wall sheet, Four-wall sheet, X-Structure sheet,Honeycomb sheet, Frosted sheet, Anti-fog sheet, Solid sheet, Embossed sheet, Abrasive sheet, Anti-scratch sheet, and other function products like: PC Diffusion sheet, IR sheet, Canopy, Skylight cover, Anti-Riot shields,etc.

Foshan Bright Sun Building Material Co., Ltd.
Add: Linshang Road, Shunde district, Beijiao Town, Foshan City, Guangdong Province, China. P.O.Box: 528311
Tel: 86-757-2210 1926
Fax: 86-757-2210 1926
E-mail: bright-sun@gdbright-sun.com
Web: http://www.gdbright-sun.com

Payment Terms:T/T, Cash, Western Union

Product Image

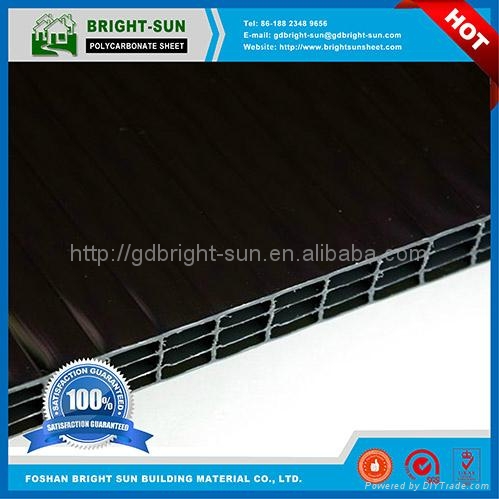

Four wall Polycarbonate sheet 1
