| Model: | H13 |
|---|---|
| Brand: | BY |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Metal Mineral |
| Label: | H13 , 4Cr5MoSiv1 , alloy tool steel |
| Price: |
US $1700
/ tn
|
| Min. Order: | 1 tn |
| Live Chat: | Last Online:13 Apr, 2016 |
Product Show
Customer Satisfaction H13 Tool Steel Material
Good price
Quick delivery
Quality guarantee by SGS
Flexible MOQ

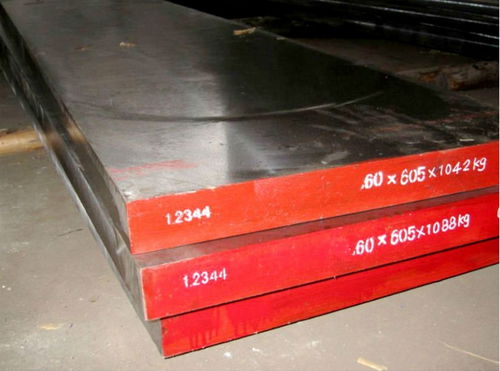

H13/1.2344/SKD61 is a kind of hot work die steel. With features of high endurance of hot and hardness, also excellent in toughness, thermal fatigue, wear resistance with normal temperature. It is always used in manufacturing kinds of mould.die cast mould for aluminum, copper, alloy.
Chemical Composition(%)
| steel grade | C | Si | Mn | Cr | Mo | V |
| AISI H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| DIN 1.2344 | 0.37-0.42 | 0.90-1.20 | 0.30-0.50 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| JIS SKD61 | 0.32-0.42 | 0.80-1.20 | ≤0.50 | 4.50-5.50 | 1.00-1.50 | 0.80-1.20 |
Sizes Available: Dia 50-500mm Length 2-5m.
Sizes Available: Dia 50-500mm Length 2-5m.
Hardness: MAX 229HB.
Tolerance: 0/+1mm for machined/turned surface; 0/+3mm for grinded/peeled surface.
Payments: T/T,L/C
Contact
We warmly welcome clients from all over the world to cooperate with us and develop worldwide market together. Also we hope we can have chance to establish long term business relationship with you on the basis of mutual benefits.
Please contact with me , thanks !!
whatsapp:086-13409889816
skype:pennywang
| Payment Terms: | T/T ,LC |
|---|---|
