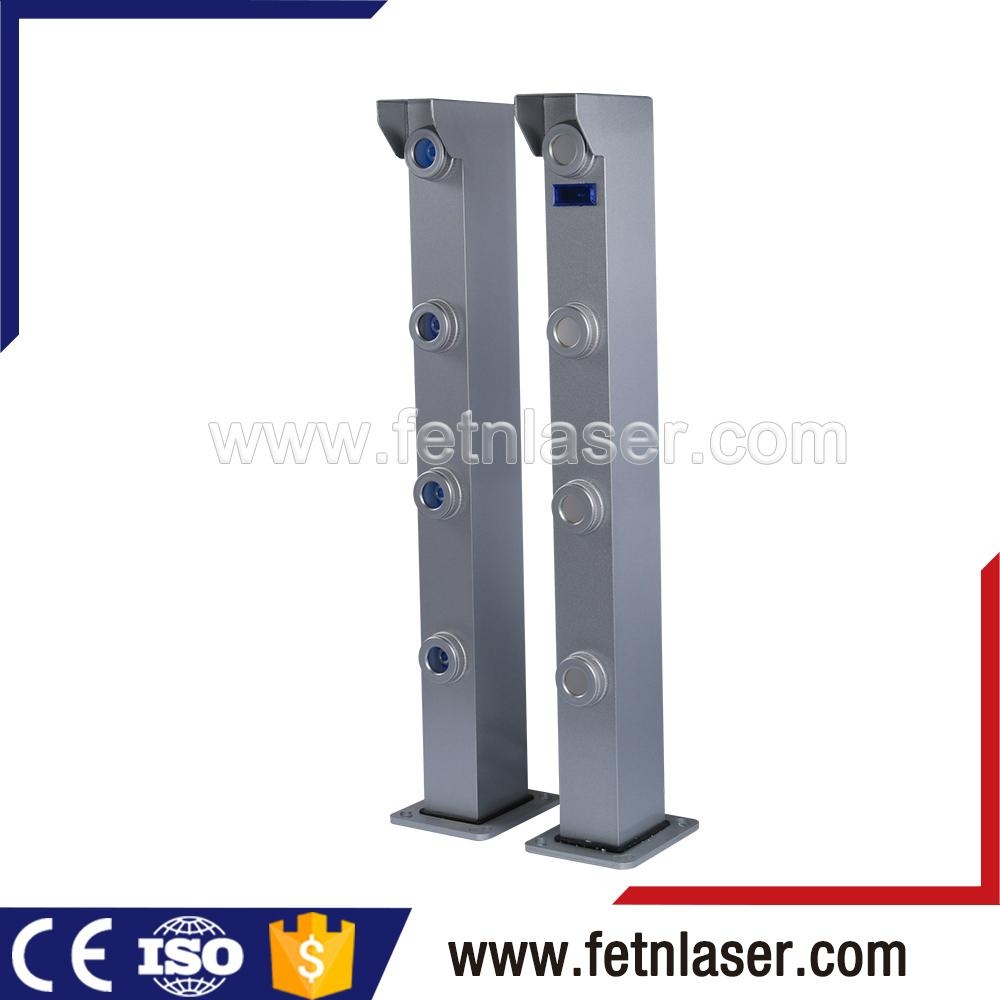

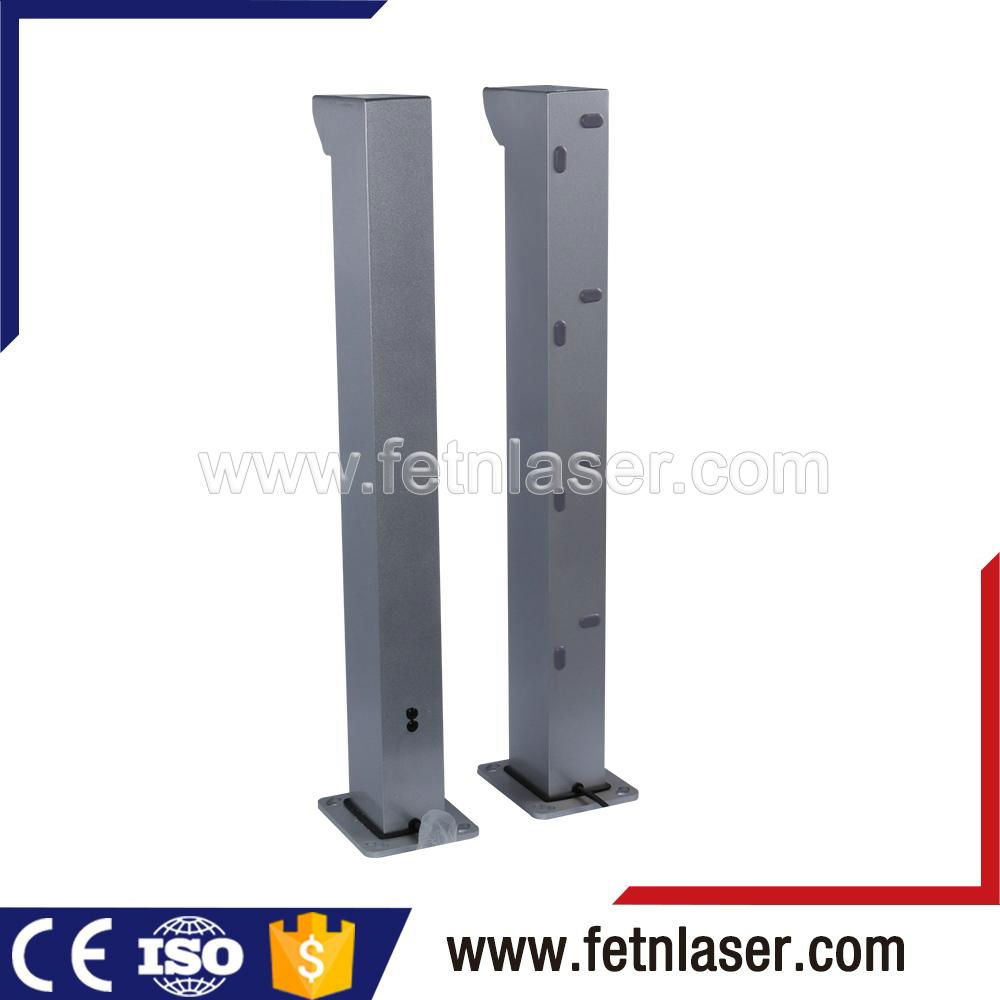

| Model: | XD-B100D |
|---|---|
| Brand: | Fetnlaser |
| Origin: | Made In China |
| Category: | Security & Protection / Alarm |
| Label: | perimeter fence sec , laser fence security , perimeter security |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:22 Nov, 2016 |
|
Item |
Technical indexes |
|
Model |
XD-B 50/100/200/300/500 D |
|
Laser wave length |
650nm, 808nm, 980nm |
|
Alert distance |
0- 500m |
|
Alert level |
Four-layer alert |
|
Alarm mode |
Beam blocking alarm |
|
Working voltage |
DC12V±10% or AC220V |
|
Working current: |
360mA when transmitting 240mA when receiving alarm |
|
Alarm output mode |
A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A,DC24V/2A |
|
Anti-dismantling output pattern |
A set of normal close contact. Contact capacity: AC125V/0.5A,DC24V/2A |
|
Angles at the transmitting and receiving ends |
Divergence angle:<3′ Receiving angle: >10° |
|
Optical axis adjustment angle |
Horizontal 30° Vertical ±30° (range adjustable.) |
|
Product dimension |
60mm (L) × 80mm (W) × 644 (H) |
|
Chassis dimension |
110mm (L) × 130mm (W) × 6mm (H) |
|
Material |
Aluminum alloy |
|
Product weight |
5.88KG (transmitting end:3.2KG, receiving end: 2.68KG) |
|
Dimension of installation hole |
4 diameter 10 holes in even distribution |
|
Alarm time |
2s±1s (1-30s optional) |
|
Response time |
5ms-500ms (adjustable) |
|
Working environment temperature |
-40℃-70℃ |
|
Protection level |
IP67 |
|
Type of laser light source |
Type I safety laser light source, in Class I |
|
MTBF |
> 120,000h |
