high polymer self-adhesive sbs modified bituminous waterproof membrane

Model:Self Adhesive
Brand:WEIPAI
Origin:Made In China
Category:Construction & Decoration / Waterproof Materials
Label:bituminous waterproo , waterproof membrane , sbs modified
Price: US $3.5 / SQ.MS
Min. Order:1000 SQ.MS
Inquire Now Add to Basket

Member Information

Detail

Product Description

high polymer self-adhesive sbs modified bituminous waterproof membrane

GB 23441-2009



Cover

Cover

Mold

Thickness

Width

Qty. / Roll

Standard

O N

O PET

O I

O 1.2mm

O  1 m

O 10 sq.ms

O GB 23441-2009

O PE

O 1.5 mm

O Double Adhesive

O II

O 2.0 mm

O PY

O 3.0 mm

O Single Adhesive

O 4.0 mm

N-No Base Felt

PY—Polyester

PE—Polyethylene

PET-Polyethylene Terephthalate



Product Specification

Self-adhesive modified bitumen waterproof membrane are produced with advanced production technology and equipment. It has a widely prospect new construction waterproof materials. Good self-adhesion, no leaking, cold flexibility, especially in self-adhesion that is unique product in waterproof and application.



high polymer self-adhesive sbs modified bituminous waterproof membrane


N-Self-Adhesive Polymer Modified Bitumen Waterproof Membrane

Item

Index

P

PY

D

I

II

I

II

Tensile Properties

 Tension  (N/50mm)≥

150

200

150

200

 Elongation at Max
 Tension/ % ≥

200

30

Asphalt Breaking
 Extension % ≥

250

150

450

Shank  Tear Strength /N  ≥

60

110

30

40

Heat Resistance

70 ℃, Slide no more than 2mm

Low Temperature Flexibility / ℃

-20

-30

-20

-30

-20

No Cracks

Impermeability

0.2Mpa, 120min not permeable

Peel Strength/
 (N/mm) ≥

Between Membranes

1

Between Membranes
and Aluminum

1.5

Permeability /Piece   ≤

2

Continued Viscosity /min ≥

20

 Thermal Aging

Rally Retention % ≥

80

Elongation at Max

Tension /% ≥

200

30

400

Low Temperature

Flexibility /℃

-18

-28

-18

-28

-18

No Cracks

Peel Strength Between Membranes and Aluminum /(N/mm) ≥

1.5



 Product Features

1. Self adhesive, safe and environment-friendly;

2.Good tensile strength and elongation;

3.Strong adaptability for substrate shrinkage, deformation and cracks;

4.It will be a high-strength membrane to resist water;

5.Penetration-resisting and corrosion-resisting;

6.Excellent flexibility in low temperature;

7.Strong self healing ability for penetration and cracks



Product Show





Application

Widely used in industrial and civil building roof, basement, toilet waterproof engineering and roof

garden, tunnel, parking lot, swimming pool and other projects of waterproof and moistureproof



Requirements for Construction

 1. The base should be dry and clean. Do not work in rainy or snowy day.

 2. Do not work under heavy wind. (Temperature need be above 5℃)

 3. If it is rain or snow in the process of construction, protective measure to the laid membrane is necessary.

 4. All the workers should put on special uniforms to keep safe when installing. There should be equipment for fire controls.



Packaging & Shipping





Company Information

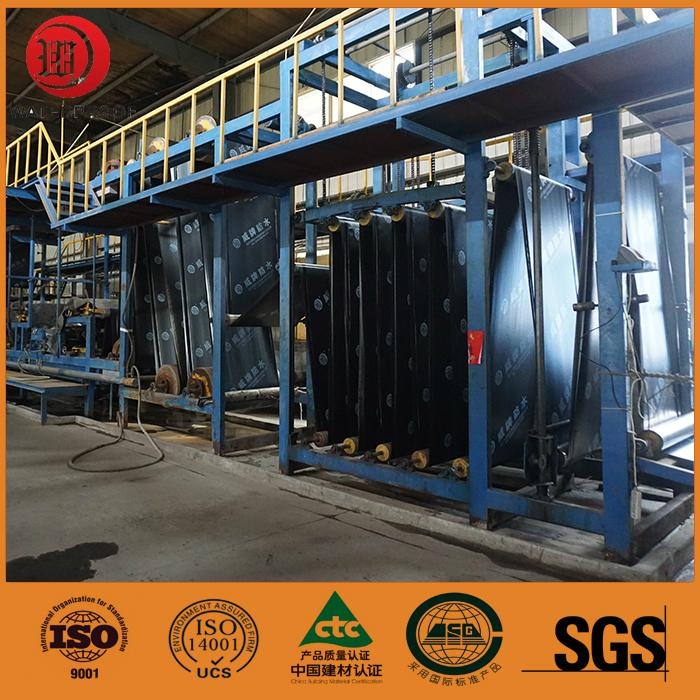

Sichuan Tianqiang Waterproof Insulation Materials Co., Ltd. , a professional waterproofing enterprise, which is focuses on waterproofing material scientific researching, designing, manufacturing, marketing, technical advice and construction services. We have 3 High Polymer waterproofing membrane production lines, 2 APP/SBS Modified bitumen membrane production lines, Self-adhesive membrane production line, Waterproof coating production line. We sincerely welcome friends from all over the world to contact us, visit and cooperate with us.
