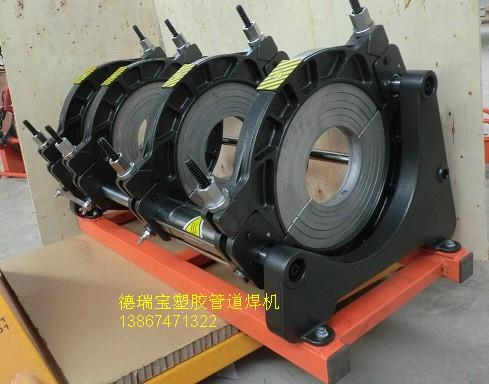

~315-630 hydraulic press is introduced
2. The main electric components of imported or domestic best components.

3. Hydraulic seal system adopts the imported products.Quick joint adopts flat type, more environmental protection and durable.

4. The electric heating plate adopts teflon coating, good stability, independent temperature control system.Temperature control to the domestic machine minimum range.

5. Cutter adopts powerful machine, special material of the blade, the cutting effect more perfect.

Two: the basic technical parameters

Equipment specifications

DRB630

Can be welded pipe

315 mm and 355 mm, 400 mm - 450 mm - 500 mm - 560 mm - 630 mm

The system pressure adjusting range

0 ~ 6.3 Mpa

Working voltage

50 hz, 380 v

The heating plate temperature

0 ~ 270 ℃

The heating plate surface temperature difference

Plus or minus 7 ℃

The heating plate power

9.2 KW

Milling power

1.5 KW

Hydraulic power station

1.5 KW

The total power

12.2 KW

Weight (KG)

About 550

Three: easy to use.

1 electric cutter, safety limit switch, to prevent accidental activation of a milling cutter.

2 for aluminum alloy material, a major part of frame 45 ° inclined design.

3 low starting pressure, high reliability sealing structure.

4 welding position can be transform, convenient welding all kinds of pipe fittings.

Five independent dual channel timer, can record the two periods of heat and cooling, timing alarm over, convenient for the user.

6 big dial, high-precision shockproof pressure gauge, reading more clearly.
