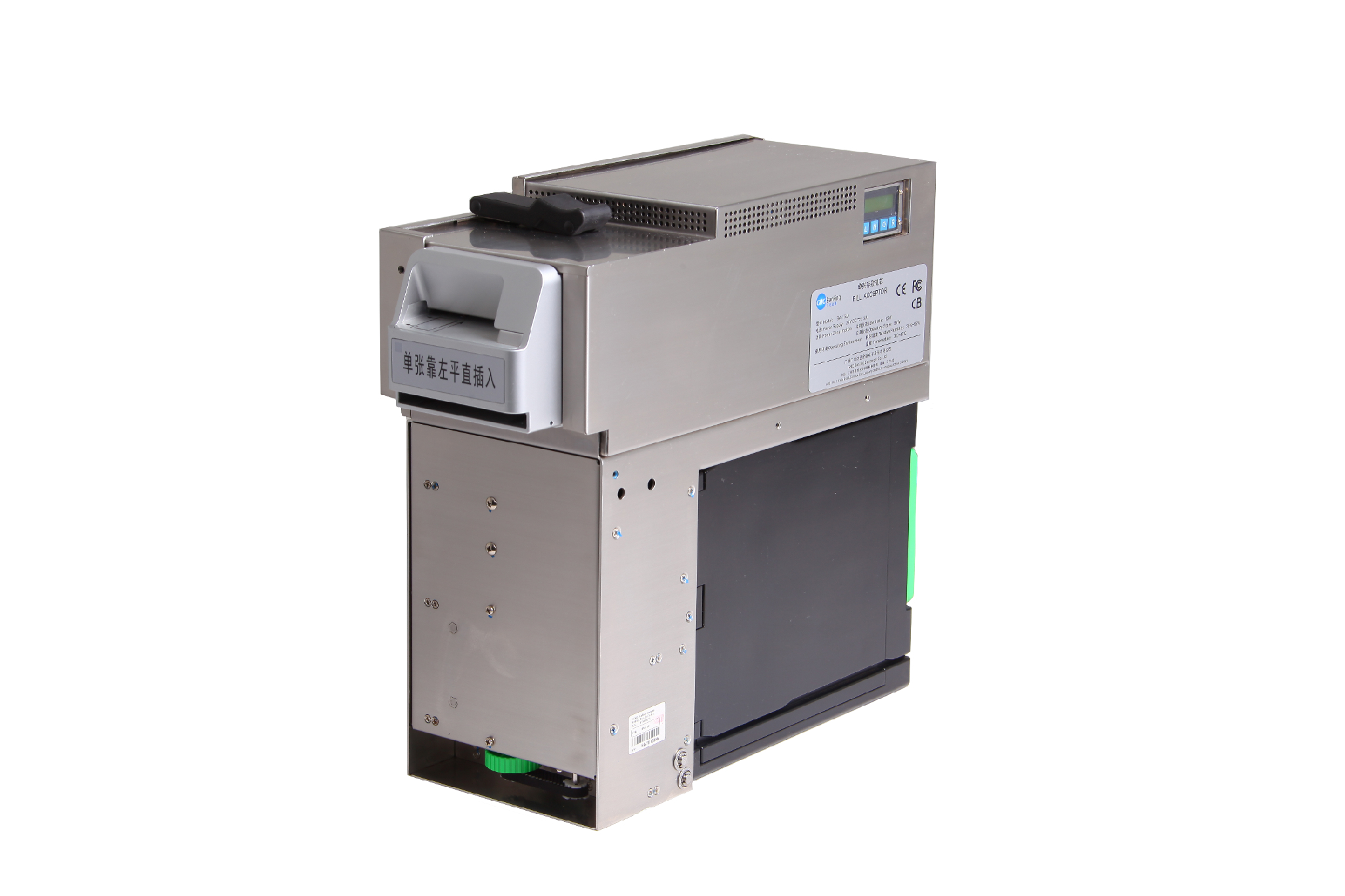

Single banknote acceptor with intelligent full surface detection

Highlights
L financial industrial standard
L full surface cis scanning
L smooth transportation
L off-line diagnosis system
L high performance processor
L dual surface magnetic detection
L escrow with large capacity
L note serial no.Recognition (expandable)

Overview
Ba-15 features leading anti-counterfeit technology, full surface detection and banknote
Serial number tracking.Triple belts in transport unit ensure smooth transportation of worn
Banknotes.This module features friendly maintenance and dust resistant design to withstand
Harsh environment.Ba-15 complies with ecb standard and will surely meet your application demands.

Features

Effective validation
Compliant with financial standard
Highest processing rate of 1.5s per note
Multiple ways of detection such as full surface
Cis scanning and magnetic property detection

Security and reliability
Methods prevent fraudulence such as stringing
Durable cassette doesn't deform to allow
Prying in the drop incident
Software online upgrading promptly embarks
The latest counterfeit

Low maintenance cost
Off line diagnosis system facilitates
Trouble-shooting
Less consumable parts and longer service life
Dust prevent design withstands harsh
Environment

Specifications

Bill insertion
Lengthwise with 4 ways

Detection
Full surface cis scanning and magnetic
Property detection
Banknote serial no.Tracking (optional)

Denominations and dimensions
Simultaneously accept 100 denominations
Length range:80~180 mm
Width range:60~96 mm
Thickness range:0.06~0.18mm

Vault capacity
1000/2000 notes
20 notes escrow

Maintenance direction
Front/ rear/side access

Power supply
Dc 24v±10%, 65w(maximum)

Communication interface
Rs-232

Weight
Total:21.5kg (ba-15c, rear access)
17.5kg (ba-15d, rear access)
Vault:4.2 kg

Environment
Working:0ºc~50ºc, 20%~90%rh
Storage:-20°c~60°c, 20%~90%rh

Mcbf
300, 000cycles
