Conventional Fire Alarm Control Panel with 16 Zones

Model:ck1016
Brand:zc
Origin:Made In China
Category:Security & Protection / Alarm
Label:16zone panel , control panel , fire alarm panel
Price: US $180 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Company Information

Detail

ShenZhen Zoanco Electronics Co ., Ltd

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:19 Jul, 2018

Product Description

Conventional Fire Alarm Control Panel with sixteen Zones

Key Specifications/Special Features

  • Sixteen Style B (Class B) Initiating Device Circuits (IDCs).
  • All zones accept two-wire smoke detectors and any normally-open contact devices.
  • Four built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).
  • Alarm, Trouble and Supervisory, Form-C relays standard.
  • 24-volt operation.
  • Resettable four-wire smoke detector power @ 500 mA.
  • Non-resettable power @ 500 mA.
  • One-man walk-test programmable for silent or audible test.
  • Disable/Enable control per IDC.
  • Reverse polarity protection.

The PANEL is a 4-zone to 16-zone FACP (Fire Alarm Control Panel), which uses conventional input devices.  The panel accepts water flow devices, two-wire smoke detectors, four-wire smoke detectors, pull stations and other normally-open contact devices. Outputs include four Notification Appliance Circuits (NAC, SOUND1-4), three standard Form-A relays (alarm, trouble and supervisory) and an EIA-485 port to interface with remote annunciators and optional remote relay modules. The FACP is field programmable via the panel keypad.  It also supervises all wiring, AC voltage and battery level.

This series of panels are basically the same in application and operation, their differences are shown in Table 1-1. PANEL will be described as the example in the following sections.



Table 1-1

FACP

Number of Detection Zones

Number of Sounder Outputs

Output Delay Settings

PANEL-4

4

1

N/A

PANEL-8

8

2

N/A

PANEL-16

16

4

N/A


Product Image

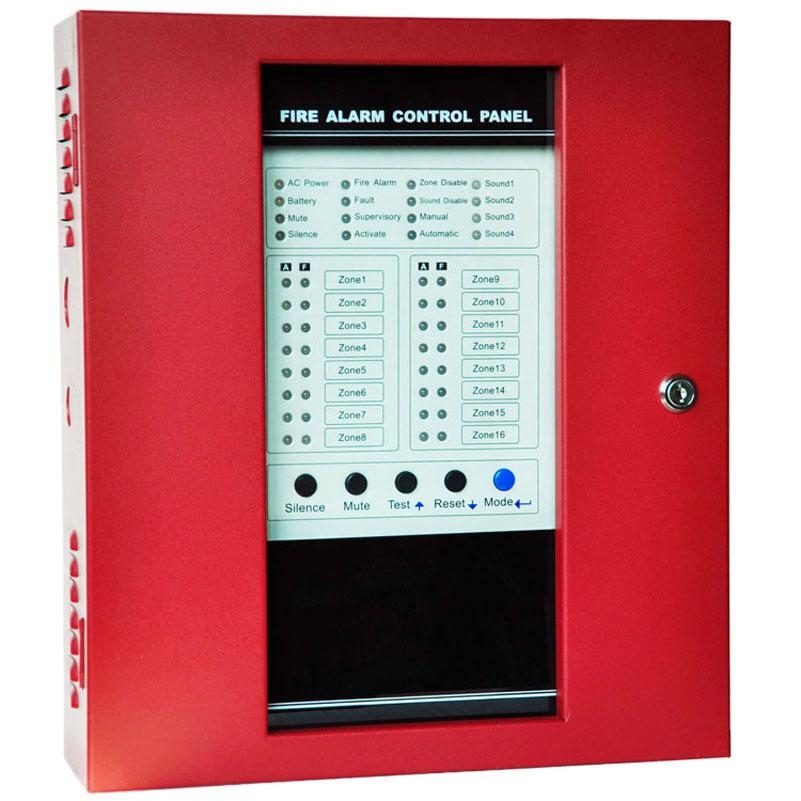

Conventional Fire Alarm Control Panel with 16 Zones  1
Img 1
Conventional Fire Alarm Control Panel with 16 Zones  2
Img 2
