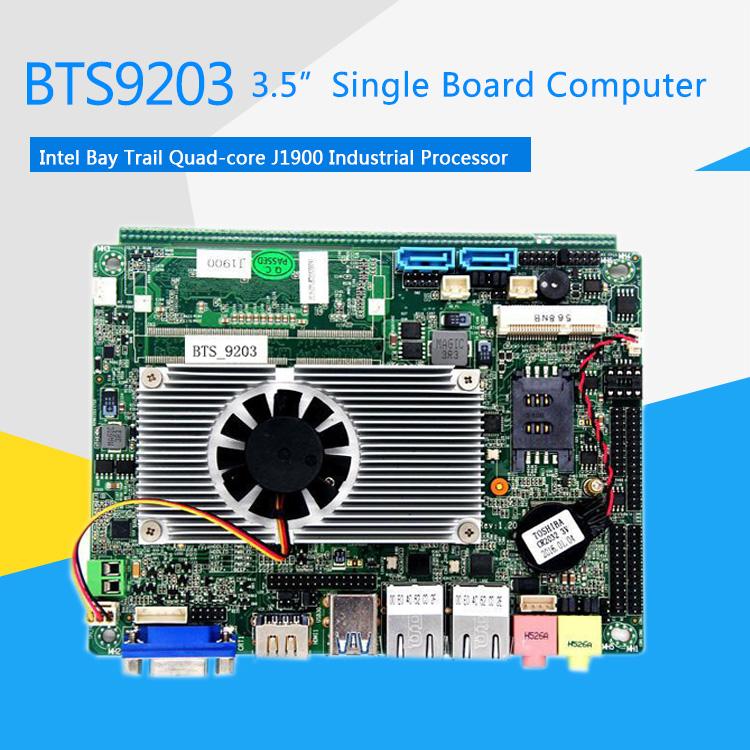

3.5 Inch Industrial Single Board Computer HTX_BTS9203 V2.0-02
HTX_BTS9203 is a 3.5" industrial single board computer based on Inter® BayTrail-D Quad-Core J1900 processor with speeds up to 2GHz, fanless and thin. Supports RGB CRT/24bit LVDS+VGA+HDMI display out, rich I/O 1xMini-PCIE slot,1x Mini-SATA slot(optional),2x SATA 2.0,5x USB 2.0(4x Pin-Type),1x USB3.0, 5x RS232, 1x RS485/RS422.
HTX_BTS9203 feature on high performance, low power consumption and Fanless, can be widely applied on industrial equipment, including self-service terminals, industrial automation, digital signage, IoT, intelligent terminals, industrial human-machine interface, medical electronics, traffic control, robotics, unmanned aerial vehicles, industrial 4.0, etc.
Feature:
l Inter®BayTril Quad-Core J1900 industrial processor, supports Baytril-I/D/M N2900 J1800 N2806.
l On-Board 2GB DDR3L,optional 4GB
l On-Board 1GB DDR3 SODIMM 204 Socket, up to 4GB DDR3L
l Optional 16/32/64G SSD
l Supports 2x 1000M LAN
l Supports HDA ALC662, MIC/LINE-OUT, Pin-Type, 3-Pin SPDIF.
l 1xMini-PCIE slot,1x Mini-SATA slot(optional),2x SATA 2.0,5x USB 2.0(4x Pin-Type),1x USB3.0, 5x RS232, 1x RS485/RS422
l Supports HDMI, RGB CRT, Dual channel 24bit LVDS OUT
l 2x 3-Pin FAN, 8x GPIO(USER)
l Supports 255 level watchdog.
l Support Touch panel(4wire 5wire 8wire)
l Designs Fanless And Thin,<10W Low power
Specification
|
Processor |
|
|
CPU |
Inter® BayTril-D Quad-Core J1900,Support Baytrail-I/D/M series processors N2900 J1800 N2806 |
|
Package |
BGA |
|
Chips |
Supprt Baytrail-I/D/M Series |
|
Memory |
|
|
Technology |
DDR3 1066/1333/1600MHz |
|
Capacity |
On-Board 2GB DDR3, Up to 4GB |
|
Slot |
Can add 1 slot, for maximum 8G expanded memory |
|
Video |
|
|
Graphic Controller |
Inter® HD Graphics |
|
LVDS |
Dual-channel 24bit output, 1920 x 1080 resolution |
|
VGA |
VGA supports 2048x1536 resolution |
|
HDMI |
HDMI supports 1920x1080 resolution |
|
Dual-display |
LVDS + VGA,LVDS+HDMI,HDMI+VGA synchronous or asynchronous display |
|
Network |
|
|
Controller |
2 RTL8111E-V gigabit network cards with RJ45 interface |
|
Audio |
|
|
Controller |
Realtek HD ALC662 audio decoding(left&right channel+microphone) |
|
Super I/O |
|
|
Controller |
NCT6106D |
|
Hardware Monitor |
|
|
Watchdog |
0-255 seconds with watchdog routine provided |
|
Cooler |
Cooler with aluminum fan, optional non-fan |
|
I/O Interface |
|
|
USB |
1*USB3.0, compatible USB2.0 / 1.1, 5*USB2.0, maximum supports +5V/1A |
|
Serial Port |
Optional 5 RS-232 and 1 RS232/485RS485, supports automatic flow control |
|
GPIO |
8 bit, routine provided, free definition for I/O,3.3V@24mA electrical level |
|
Expansion Bus |
|
|
Mini-PCle |
1 Mini-PCIe slot for PCIe and USB devices |
|
Storage |
|
|
SATA |
2 standard SATAII interfaces with maximum transmission rate up to 3Gb/s |
|
M-SATA |
1 Mini-PCIe M-SATA Scoket, supports SANDISK protocol, maximum transmission rate up to 3gb/s |
|
Power |
|
|
Type |
Single input DC power,DC12V, +/-5% |
|
Consumption |
10W |
|
Working Environment |
|
|
Working Temperature |
-20℃ ~ +60℃ |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Working Humidity |
0% ~ 90% relative humidity, no condensation |
|
Storage Humidity |
0% ~ 90% relative humidity, no condensation |
|
Apparent Size |
|
|
Size |
154.8 x 117.4 mm |
|
Weight |
0.5KG |
|
Certification:CE,ROSH,FCC |
|
Packing
|
No. |
Description |
|
1 |
1x I/O baffle |
|
2 |
1x driver DC |
|
3 |
1x SATA |
|
4 |
1x SATA-P line |
|
5 |
1x COM line |
