| Model: | GS20 |
|---|---|
| Brand: | HISEER |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Water Heater |
| Label: | geothermal heat pump , brine to water , water to water |
| Price: |
-
|
| Min. Order: | 5 pc |
| Live Chat: | Last Online:20 Mar, 2024 |
Smart phone App. control WiFi module is optional .Control your heat pump from anywhere at any time.
Heating and domestic hot water;

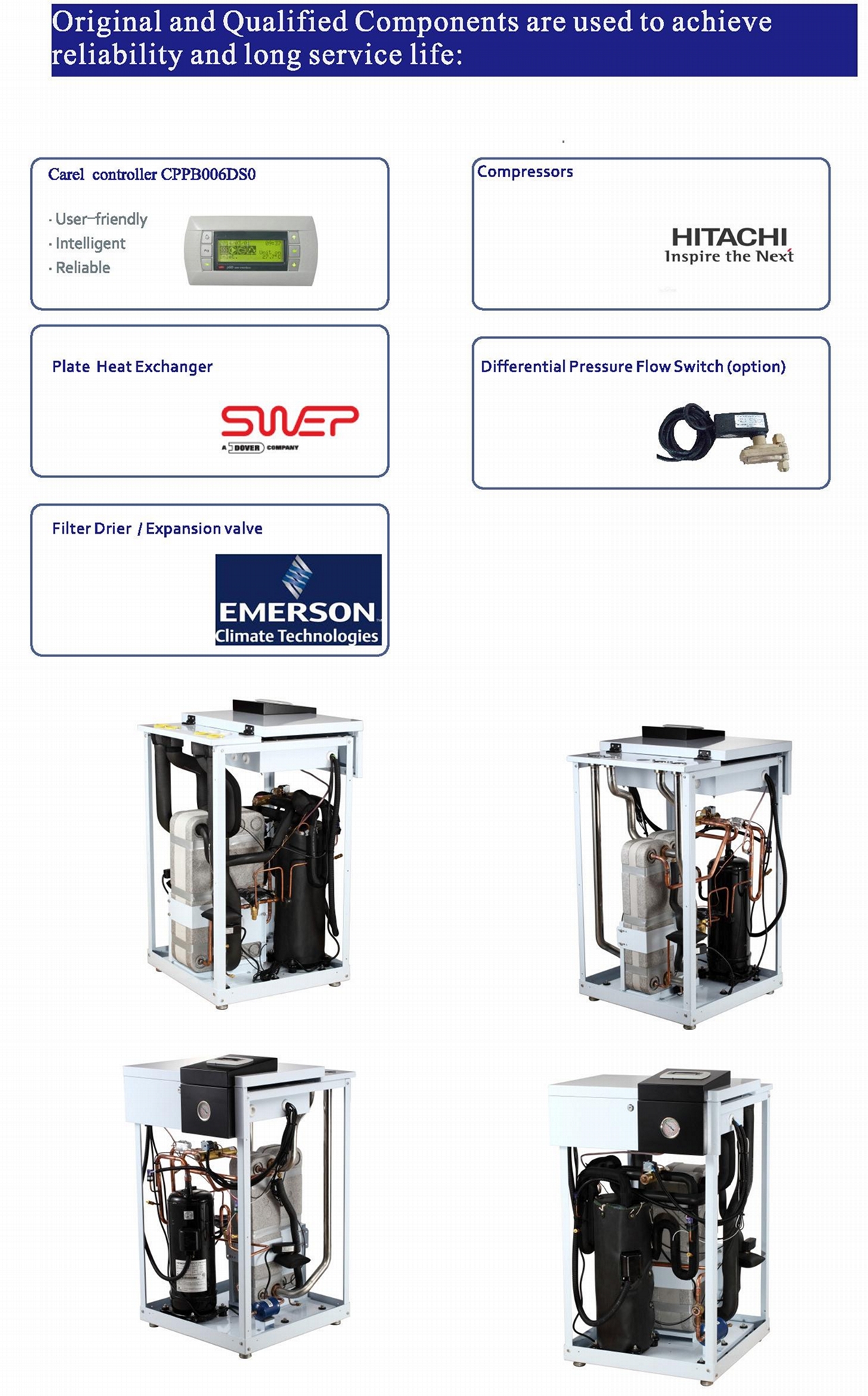

Hitachi R410A scroll compressor;
Swep/Gea Plate type heat exchanger;
Emerson Expansion valve
Carel controller, easily understandable control
Internal 3 way revert valve and hot water pump are optional
Internal Electric heater backup is optional
Differential pressure flow switch is optional
Rust free galvanized sheet case
Varied heat curve
Quite running design for indoor installation.
All components are tested to achieve long time reliability and durability.
Erp energy efficiency class: A++ .
Technical specification:
| Heat pump | Type | GS20 | |||||
| Dimensions,weights,connection dimensions | |||||||
| Dimensions | HxWxD | 1040x640X600 | |||||
| Weight | kg | 160 | |||||
| Refrigerant | Type | R410A | |||||
| Filling weight | kg | 2.15 | |||||
| Permissible operating pressure | Mpa | 4.2 | |||||
| Pipe connector-hot side | Inch | G11/2” | |||||
| Pipe connector-cold side | Inch | G11/2” | |||||
| Evaporator | Type | Brazed plate heat exchanger | |||||
| Condenser | Type | Brazed plate heat exchanger | |||||
| Compressor | 1xScroll | ||||||
| Running current at B0/W35 | A | 9.35 | |||||
| Starting current compressor (with stalled rotor) | A | 80 | |||||
| Performance Heat pump | |||||||
| Heat output | at B0/W35 | kW | 19.4 | ||||
| Power consumption | kW | 4.92 | |||||
| Performance factor | 3.94 | ||||||
| Indoor side volume flow | m3/h | 3.34 | |||||
| Indoor side pressure drop | kpa | 29 | |||||
| Outdoor side volume flow | m3/h | 4.57 | |||||
| Outdoor side pressure drop | kpa | 34 | |||||
| Heat output | at W10/W35 | kW | 26.0 | ||||
| Power consumption | kW | 4.8 | |||||
| Performance factor | 5.42 | ||||||
| Indoor side volume flow | m3/h | 4.47 | |||||
| Indoor side pressure drop | kpa | 38 | |||||
| Outdoor side volume flow | m3/h | 6.08 | |||||
| Outdoor side pressure drop | kpa | 45 | |||||
| Power | Type | Triple phase with Hitachi compressor | |||||
| Sound power level | dB(A) | 48 | |||||
| The above data is tested by EN14511 | |||||||
| B0/W35 means heating source brine inlet temp. 0℃,heating flow temp. 35℃ | |||||||
| W10/W35 means heating source water inlet temp. 10℃,heating flow temp. 35℃ | |||||||
| The Sound power level is tested by EN12102 | |||||||
