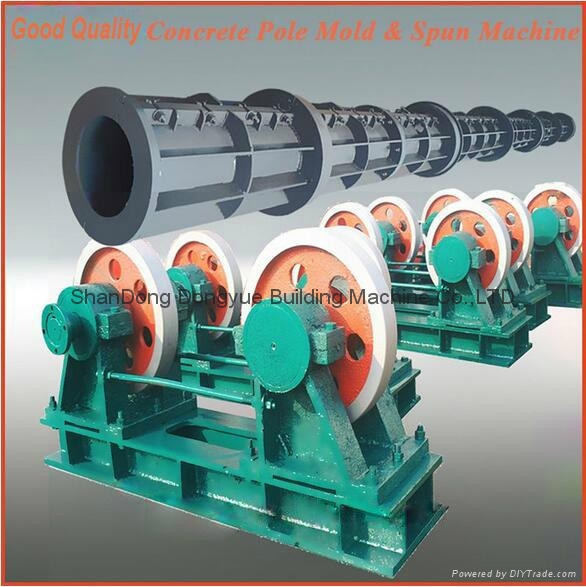

Good quality concrete pole making machines CE approval

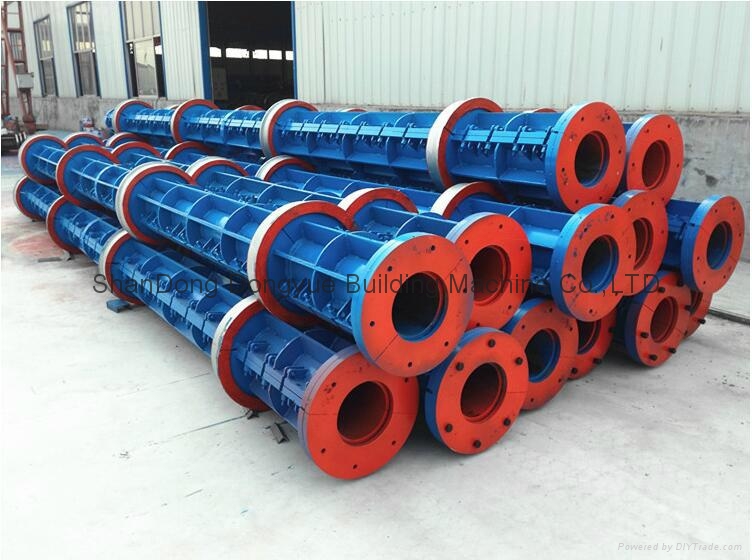

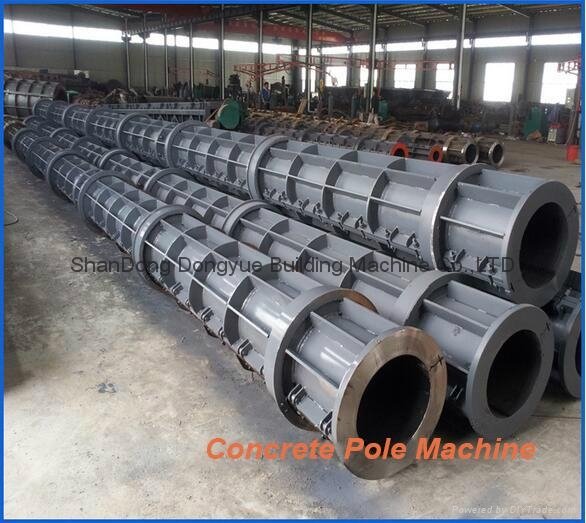

1. Concrete Pole Mold

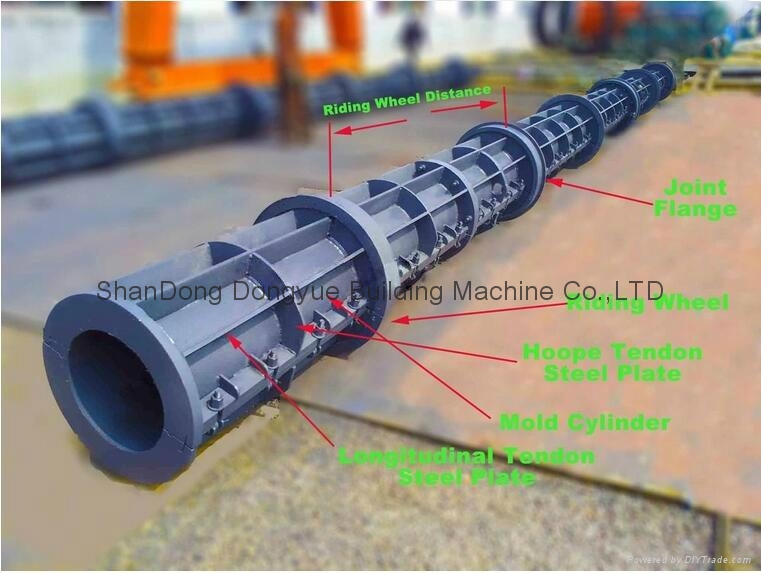

(1) Overview of Concrete Pole Mold
This Prestressed Concrete Spun Pole Mold is used for concrete electrical pole manufacturing. It’s mainly manufacture technology is longitudinal tension by steel wires. Then it can squeeze out the excess water in the concrete under the centrifugal force. Thus, it can greatly improve the concrete density and strength.
(2) Technical Parameter of Prestressed Spun Concrete Pole Molds
|
Concrete Electric Pole Steel Mold |
||||||
|
Inner diameter of top end (mm) |
Length (m) |
Tread (m) |
Running Wheel Diameter (mm) |
Length (m) |
Tread (m) |
Running wheel diameter (mm) |
|
100 |
6~7 |
2 |
600 |
/ |
/ |
/ |
|
130 |
6~8 |
|||||
|
150 |
6~11 |
|||||
|
170 |
7~12 |
|||||
|
190 |
7~15 |
15 |
2 |
650 |
||
|
230 |
6~10 |
12 |
||||
|
270 |
6 |
9 |
||||
|
270 |
6 |
9 |
||||
|
283 |
6 |
/ |
/ |
|||
|
310 |
6~10 |
650 |
/ |
/ |
||
|
350 |
6 |
9 |
700 |
|||
|
390 |
6 |
700 |
9 |
750 |
||
|
430 |
6 |
750 |
/ |
/ |
||
|
470 |
6 |
780 |
/ |
/ |
||
|
510 |
6 |
800 |
9 |
850 |
||
|
550 |
6 |
850 |
/ |
/
|
||

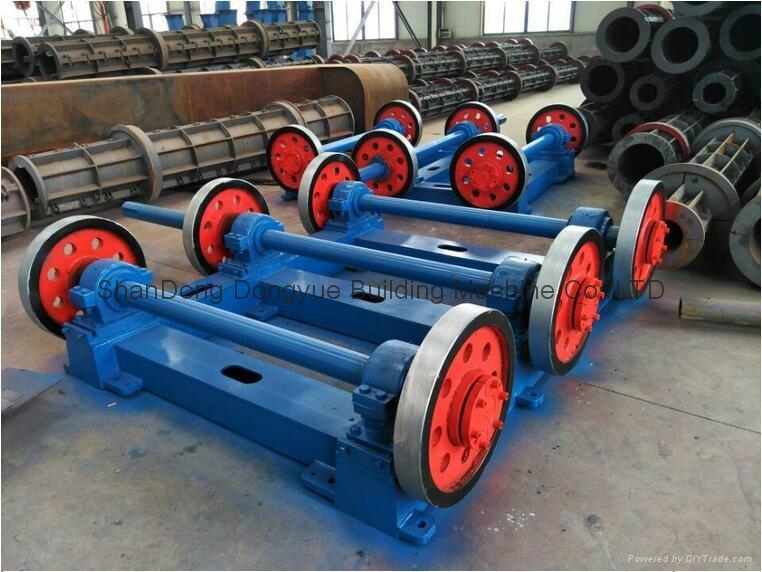

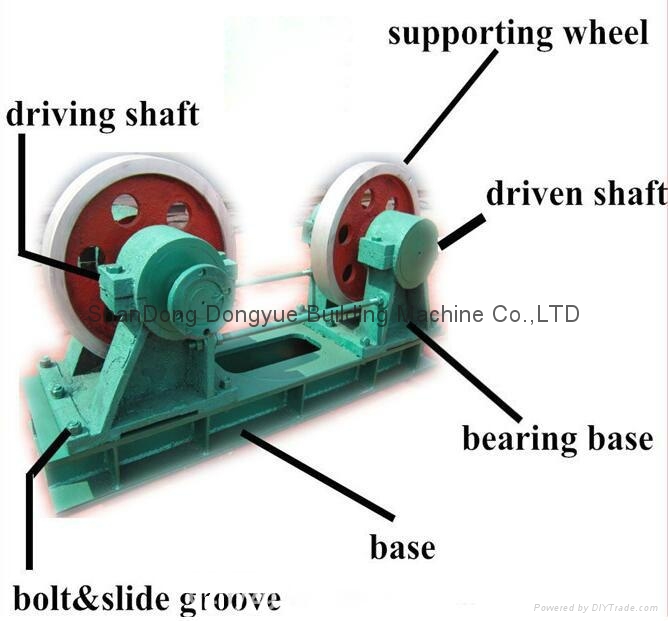

2. Concrete Pole Centrifugal Spinning Machine
(1)Overview of Concrete Spun Pole Spinning Machine
Centrifugal spinning machine for prestressed spun concrete electrical pole is a kind of mold equipment, which is used for producing reinforced concrete poles and other cement products with a variety of different diameter and length.
(2)Technical Parameter of Concrete Spun Pole Spinning Machine
|
Pole Mold Diameter (mm) |
Spinning wheel pitch(mm) |
Running wheel diameter (mm) |
Mold Length (m) |
|
150 |
2000 |
600 |
7-12 |
|
170 |
2000 |
600 |
7-12 |
|
190 |
2000 |
650 |
7-15 |
|
230 |
2000 |
650 |
6-9 |
