| Model: | PFL-890 |
|---|---|
| Brand: | PFL |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | hot knife cutting , cutting machine , hot cutting machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:28 Feb, 2017 |
Features:

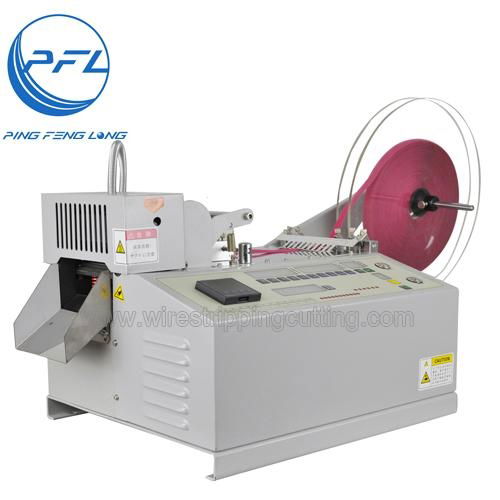

Automatic Full Computer Tape Cutting Machine
Adopt 18 digital display,16 function key,11 light coupling input,4 cut-off protector,1 servo motor pulse output technology.
It is a kind of numerical control equipment.
1.Easy operation,it can cut automaticlly once set up the cutting length and quantity.
2.Self protection function,it will stop automaticlly if the materials run out during the operation.
3.High speed,100-120 pcs per minute(50mm length for example)
4.High accuracy,the cutting length is accurate according to a stepping motor.
5.Hot cut knives,it can cut the tapes with heat sealing the tape edge,and the knive temperature can be adjustable.
Apply for:
Widely used in clothing industry,l age industry,various daily leisure products industry.
Specification:
| Available Tape Width: | 5～110mm | |
| Available Cutting Length: | 5～9999mm | |
| Tape Cutting Speed: | 100～120Pcs/Min | |
| Cutting Tolerance: | ≤0.5mm | |
| Cutting Type: | Hold knives,Straight cut | |
| Knives temperature: | Max 500 degree,Adjustable | |
| Power Supply: | AC220V 50Hz | |
| Available Materials: | Nylon/fabric tapes,plastic/metal zippers,leather,aluminum platinum,PVC tubes,PS material etc. | |
| Measurement: | 380*320*300mm | |
| Weight: | 28kg | |
If anything I can do for you,please contact me any time!
