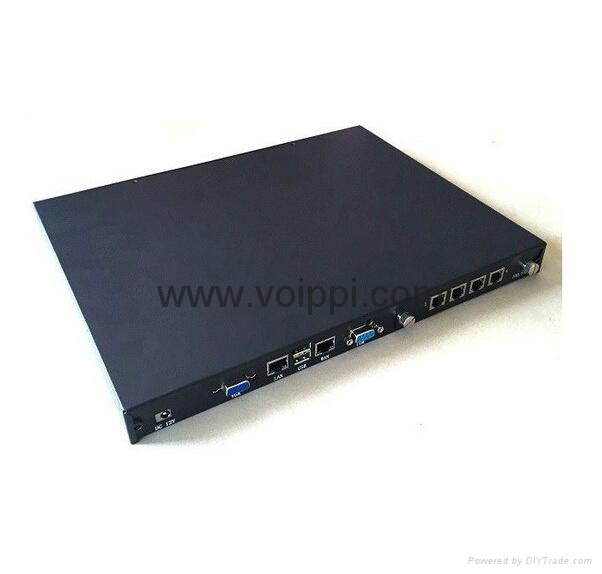

AP1000 Asterisk IPPBX(x86 hardware)

Description:

VL-AP1000 X86 ippbx , support : 4 FXS/FXO board, 8 fxs/fxo board, 1 E1/T1 board, 2 E1/T1 board.

           users may easily setup their customized IPPBX.

AP1000 X86  Asterisk IPPBX base on open source asterisk software IPPBX,use X86 pc board,

AP1000 is an ideal for small and medium hardware development platform, which is based on the integration of Asterisk IPPBX solutions, plug plate design by preclude the use of a modular,

    In a small chassis, it integrates a variety of communication interface imports, including analog access of imported FXO / FXS, digital access of imported E1 / T1.

AP1000 hardware development platform supports comprehensive protocol processing, which is installed in the Linux-based operating system, and completely open to the developers , developers on this platform is very easy to do secondary development, to provide more value-added services unique.

Hardware spec:

      CPU Processor:Intel® Celeron® Processor 1037U (2MCache, 1.80 GHz)

      RAM:2GB DDR3 SDRAM (Maxim can expand to 8GB)

      Hard dish capacity:500G

      2 USB2.0 connector

      2 100Mbps Ethernet interface imports

      1 VGA connector

      1 232 serial port

      Extend board support : 4 FXS/FXO board, 8 fxs/fxo board, 1 E1/T1 board, 2 E1/T1 board.

      Product size : 330mm*260mm*30mm

      Packing size : 410mm*430mm*70mm

      Weight: 3.5KG

Support OS:

       Elastix®,trixbox®,FreeSWITCH,FreePBX....
