WNS&SZS series coal fired instant pu erized coal steam and hot water boiler

Model:WNS/SNS series
Brand:DONGYUE
Origin:Made In China
Category:Industrial Supplies / Machinery / Boilers
Label:boiler , hot water boiler , coal fired boiler
Price: US $9800 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

shandong dongyue building machine co.,ltd

Biz MemberShan Dong - China
Live Chat:点击这里给我发消息Last Online:23 Sep, 2021

Product Description

WNS&SZS series coal fired instant pu erized coal steam and hot water boiler

WNS/SZS series pu erized coal steam and hot water boiler



Product features

1. Central supplying of pu erized coal: pu erized coal shall be centralized ground and integrated supply in the factory, ensuring high quality of pu erized coal.

2. Friendly work environment: the whole system shall use closeness running, automatic-coaling, and centralized ash discharge without dust to spill.

3. Easy in starting and stopping for boilers: the boiler system shall achieve start-and-stop. It shall run normally following cutting off ignition source in 30 seconds. As soon as it cuts off coal dust supplying, the boiler system shall achieve blowing out.

4. High level of measuring and controlling: automatic monitoring shall be sused, as well as adjusting working parameter, as a result, the system shall be at its best running state, reducing the risk of boiler running on which labor intensity and human factor effect.

5. High-efficiency&energy-saving: the boiler shall featuret the following: pu erized coal burning brightly, excellent heat transfer effect of boiler, low excess air coefficient of boiler, as well as high thermal efficiency of system. House-service equipment with high power shall use frequency-changer, economizing on electricity obviously.

6. Discharge kept shall be clean: furnace desulfurating shall be performed in the pu erized coal boiler. Burner shall be equiped with cryogenic iar classifier with uniform ignition temperature field.avoiding high-temperature, so the content of SO2 and NOX produced in combustion process is low. Fume shall employ bg filter with a low smoke dust level. Fly ash, collected by bog filter, shall be expelled form closed system, resulting in centralized treatment and utilization without eacondary pollution.

7. Optimal land utilization: coal storage and slg dump shall not be heaped around the boiler room, economizing on land and saving investment.



Main performance parameters of WNS&SZS series pu erized coal fired boiler

Boiler type





Items

SZS1.4-0.7/95/70-AIII

SZS2.8-0.7/95/70-AIII

SZS4.2-0.7/95/70-AIII

Rated thermal power (MW)

1.4

2.8

4.2

Rated effluent pressure(Mpa)

0.7

0.7

0.7

Rated effluent temperature

95

95

95

Rated return water temperature

70

70

70

Combustion mode

Chamber combustion

Chamber combustion

Chamber combustion

Application fuel

Pu erized coal

Pu erized coal

Pu erized coal

Maximum weight of transportation cargo(t)

15

23

37

Maximum dimension of transportation cargo(L x W x H)mm

5620x2890x3470

6330x3060x3525

8290x3080x3510



Boiler type





Items

SZS5.6-0.7/95/70-AIII

SZS7.0-1.0/115/70-AIII

SZS14-1.25/130/70-AIII

Rated thermal power (MW)

5.6

7.0

14

Rated effluent pressure(Mpa)

0.7

1.0

1.25

Rated effluent temperature

95

115

130

Rated return water temperature

70

70

70

Combustion mode

Chamber combustion

Chamber combustion

Chamber combustion

Application fuel

Pu erized coal

Pu erized coal

Pu erized coal

Maximum weight of transportation cargo(t)

40

43

bulk

Maximum dimension of transportation cargo(L x W x H)mm

8790x3200x3572

9544x3580x3572

10080x4850x4825



Boiler type





Items

WNS1.4-0.7/95/70-AIII

WNS2.8-0.7/95/70-AIII

WNS4.2-0.7/95/70-AIII

WNS7.0-1.0/115/70-AIII

Rated thermal power (MW)

1.4

2.8

4.2

7.0

Rated effluent pressure(Mpa)

0.7

0.7

0.7

1.0

Rated effluent temperature

95

95

95

115

Rated return water temperature

70

70

70

70

Combustion mode

Chamber combustion

Chamber combustion

Chamber combustion

Chamber combustion

Application fuel

Pu erized coal

Pu erized coal

Pu erized coal

Pu erized coal

Maximum weight of transportation cargo(t)

10

23

37

43

Maximum dimension of transportation cargo(L x W x H)mm

5620x2100x2450

7430x2540x3080

8410x2880x3322

11416x3230x3682



Boiler type





Items

WNS2-1.25-AIII

WNS4-2.5-AIII

WNS6-1.25-AIII

WNS10-1.25-AIII

Rated output (t/h)

2

4

6

10

Rated working pressure(Mpa)

1.25

2.5

1.25

1.25

Steam temperature

Saturated

Saturated

Saturated

Saturated

Feedwater  temperature

20

20

105

105

Combustion mode

Chamber combustion

Chamber combustion

Chamber combustion

Chamber combustion

Application fuel

Pu erized coal

Pu erized coal

Pu erized coal

Pu erized coal

Maximum weight of transportation cargo(t)

11

27

39

45

Maximum dimension of transportation cargo(L x W x H)mm

5865x2894x3426

5860x3060x3525

8865x2894x3426

11400x3230x3700



Main performance parameters of WNS,SZS and SHS series pu erized coal fired boiler

Boiler type





Items

SZS2-1.25-AIII

SZS4-2.5-AIII

SZS6-1.25-AIII

Rated output(t/h)

2

4

6

Rated working pressure(Mpa)

1.25

2.5

1.25

Steam  temperature

Saturated

Saturated

Saturated

Feedwater  temperature

20

20

105

Combustion mode

Chamber combustion

Chamber combustion

Chamber combustion

Application fuel

Pu erized coal

Pu erized coal

Pu erized coal

Maximum weight of transportation cargo(t)

17

27

39

Maximum dimension of transportation cargo(L x W x H)mm

5865x2894x3426

63700x3060x3525

8290x3080x3514



Boiler type





Items

SZS8-1.25-AIII

SZS10-1.6-AIII

SZS20-1.25-AIII

Rated output(t/h)

8

10

20

Rated working pressure(Mpa)

1.25

1.6

1.25

Steam  temperature

Saturated

Saturated

Saturated

Feedwater  temperature

105

105

105

Combustion mode

Chamber combustion

Chamber combustion

Chamber combustion

Application fuel

Pu erized coal

Pu erized coal

Pu erized coal

Maximum weight of transportation cargo(t)

42

48

Bulk

Maximum dimension of transportation cargo(L x W x H)mm

8790x3200x3576

9560x3580x3580

10100x4850x4825






Price Terms:FOB QIngdao
Payment Terms:TT/LC
Packing:suitable for sea shipping
Lead Time:45 days
Standards Certificate:CE ISO9001

Product Image

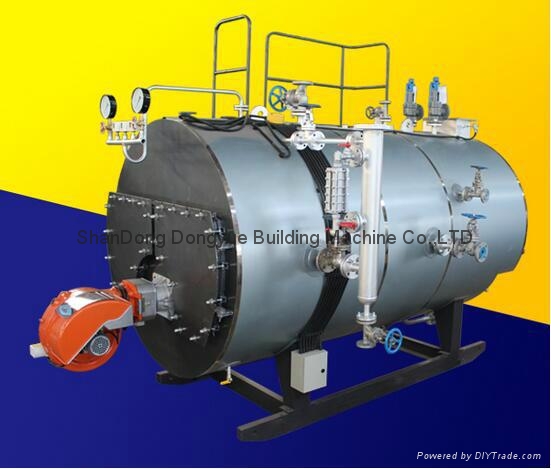

WNS&SZS series coal fired instant pu  erized coal steam and hot water boiler 1
