Good price SZL series small automatic packaged hot water boiler

Model:SZL series
Brand:DONGYUE
Origin:Made In China
Category:Industrial Supplies / Machinery / Boilers
Label:hot water boiler , packaged boiler , automatic boiler
Price: -
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

shandong dongyue building machine co.,ltd

Biz MemberShan Dong - China
Live Chat:点击这里给我发消息Last Online:23 Sep, 2021

Product Description

Good price SZL series small automatic packaged hot water boiler

SZL series packaged hot water boiler



Product features

1. The boiler shall be equipped with horizontal cyclone reburning chamber of an original creation in the home market, featuring the obvious effect of increasing combustion efficiency and decreasing smoke discharge density which is lesser than 80mg/Nm3, and at the same time, cleaning fume, of which the blackness is less than I lingemann, meeting the requirements’ of grade I environmental protection area.

2. The boiler thermal efficiency is high, every kind of which shall exceed 5 per cent of national standard.

3. The water tube boiler features the following advantages: rational structure,safe operation, and long boiler life.

4. The air register shall use cone seal structure of machining equipment, and the uniform blast duct structure shall be applied to air distribute device of wind chamber, which is environmental patent technology of state.

5. Many kinds of fuel shall be applicable,including ii and iii coal.

6. Because of compact structure, small floor area, and monolayer arrangement of the boiler room, the cost of the boiler house and installation shall be economized.

7. The boiler was awarded the following title: first class products of mechanical and electrical department, environmental products trusted by the national users, excellent energy-saving products promoted by state, excellent energy-saving products of shandong province.

8. According to the customers’ requirements, the layering burn device and other energy saving equipments, implemented in state, shall be matched.



Main performance parameters of SZL series packaged hot water boiler



Boiler type





Items

QXG0.35-0.7/95/70-AII

SZG0.35-0.7/95/70-AII

SZL0.7-0.7/95/70-AII2

SZL1.4-0.7/95/70-AII2

SZL2.8-0.7/95/70-AII2

SZL4.2-0.7/95/70-AII2

SZL4.2-1.0/115/70-AII

SZL5.6-0.7/95/70-AIII

Rated thermal power(MW)

0.35

0.35

0.7

1.4

2.8

4.2

4.2

5.6

Rated working pressure(Mpa)

0.7

0.7

0.7

0.7

0.7

0.7

1.0

0.7

Effluent temperature

90

95

95

95

95

95

115

95

Return water temperature

70

70

70

70

70

70

70

70

Combustion mode

Double reversal combuation fixed grade

Double reversal combuation fixed grade

Chain layer combustion

Chain layer combustion

Chain layer combustion

Chain layer combustion

Chain layer combustion

Chain layer combustion

Applicable coal(bituminous coal)

AII AIII

AII AIII

AII AIII

AII AIII

AII AIII

AII AIII

AII AIII

AII AIII

Grate area(m2)

1.0

0.93

1.29

3

4.6

7.23

7.23

8.6

Heated surface of boiler proper(m2)

17.2

22.59

33.39

69.4

115.3

157.6

137.6

196.9

Economier heating surface(m2)

/

/

/

/

/

/

55.5

/

Maximum size of transportation cargo(L x W x H)mm

2620x1650x1780

2750x1840x2970

4080x2150x2862

5960x2690x3462

6510x3130x3462

7830x3480x3462

7830x3480x3462

8820x3480x3462

Maximum weight of transportation cargo(t)

4.5

6

15

20

28

36

36

45

Installed exterior size(L x W x H)mm

3000x2000x2000

3000x1840x3000

5355x3550x3262

6495x4963x3862

7045x5197x3862

8365x5332x3862

10040x5332x3862

9380x5332x3862






Payment Terms:TT/LC

Product Image

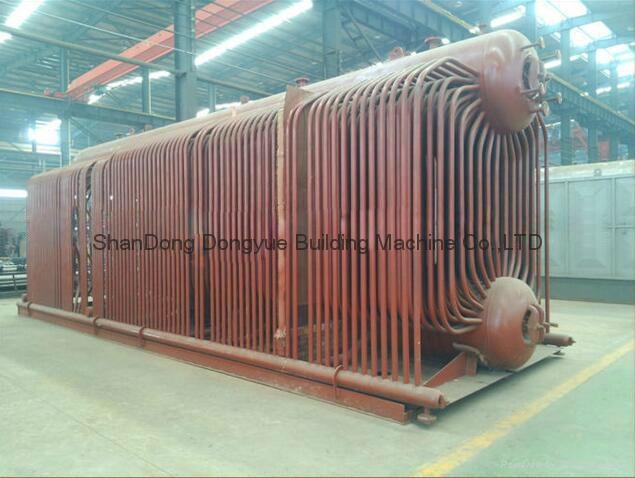

Good price SZL series small automatic packaged hot water boiler 1
