Outside Single Beam Electric Hoist Gantry Crane

Model:MH
Brand:Jinrui
Origin:Made In China
Category:Transportation / Logistics / Lifting Systems
Label:Electric Hoist Crane , Gantry Crane , Single Beam Crane
Price: US $70000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Henan Jinrui Machinery Co., Ltd.

Free MemberHe Nan - China
Live Chat:Last Online:05 Aug, 2016

Product Description

WHY CHOOSE US

1. Factory establish in -- 1981. With 34 years fabrication experience, we are professional.

2. Factory area -- 600000m². Large production capacity, help customer improve the factory construction time and saving more cost.

3. Exporting to more than 50 countries. Rich exporting experience make us provide a better exporting service, and help our customer avoid more troubles during every step.

4. Rich exprience cooperate with different application industry -- we can provide more reasonable s estion during the process of solutions confirm. Help our customer get a best money performance equipment.

5. 2 years warranty, no worry about the aftersale service.

6. Provide Overseas installation. To make sure the crane can service better for the working.

                                                               PRODUCTION DESCRIPTION

MH Type Electric Single-girder Gantry Crane forms a complete set with electric hoist. The surface of facing wind is very small, because of its steel-piping leg. It is the best light crane, which is used both in multi-wind area and workshop. It also has ground-controlling and emote-controlling. Lifting capacity is 2-20t(Gn),and the span is 10-30m, working system is 25% and ambient temperature no more than 40°C. Wind pressure is lsee than 125pa.












Features:

  •      Material Q235B or Q345B. (Similar to the international steel Fe360 or Fe520)
  •      Whole length CNC cutting for complete web plate, high deflection accuracy.
  •      High quality automatic welding and NDT inspection..
  •      Shot-blasting Sa2.5 for complete girder after welding, stress release.
  •      Epoxy zinc rich high quality painting, 2x2 with 140μm.
  •      10.9 class High tension bolts mounting between girder and legs, life time safe connection.
  •      Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors.
  •      Fulllength service platform along the crane bridge is supplied, where it is equipped with protective hand railing      and toe strips.

    Specification:

  •     Lifting capacity is 5 ton to 32 ton.
  •     Span is 7.5m to 30.5m.
  •     Lifting height is 6m, 9m, 12m, etc.
  •     Working duty is A3-A5.
  •     Working temperature is -25°C to + 40°C.



                                                               PRODUCT CLASSIFICATION







   Single girder box gantry crane

  • Used together with CD MD model electric hoist.
  • Lifting capacity is 5 to 20 ton.
  • Span is 12 to 30 meters
  • Working temperature is -20°C to + 40°C.
  • Appication: used at open or room ground and warehouses, yards etc.
  • Control: ground controlling and room controlling.



     Single girder truss gantry crane

  • The best light crane
  • Application: used both in multi-wind area and workshop for inside and outside.
  • Composed of metal structure, cart operating mechanism, electric device and trolley (electric hoist).
  • Control model: ground-controlling and remote-controlling.



     Single girder semi gantry crane

  • Lifting capacity: 2 to 10 tons
  • Span: 10~20m
  • Application: it could be used in outdoor or indoor warehouse for loading and unloading.
  • Features: saving the investment and space, reasonable structure, favorable performance, easy installation, reliable traveling etc.



     L type single girder gantry crane

  • Track traveling mid-light type crane,
  • Loading capacity is from 5 to 32t
  • Span is from 12 to 30m, and the
  • Working temperature within -25 to 40°C.
  • Features: compact in frame, light in weight, steady in performance and facilitated in operation.

  Main parameters of single girder gantry crane:


                                                                    MAIN COMPONENTS       In order to let you know single girder gantry crane well, we have point the main comonents as follows:



                                                                  FACTORY & WORKSHOP                                                                        OUR MAIN CERTIFICATES
                                                                     PACKING & DELIVERY




1. Delivery time

  Within 15 ~20 business day after the receipt of deposit.
2. Packaging

 Wood case for electric parts, accessories;large sections will be loaded onto bulk cargo ship after packing.

3. Payment terms

   FOB, CFR and CIF are common trade terms. We can accept payment terms: TT, L/C, west unit, DUP, DUA and other.

4. Installation

   the installation team can be sent to local site to install for customer.

5.Warranty

   We'll be responsible for maintenance if our product itself has quality problem during one year after receiving.

                                                                       OUR SERVICE

1. Customers Visit:

       a. We will help customers apply the offical invitation letter and booking the hotel.

       b. Give the resonable s estion, we will company with you.

       c. If you are interested in China, we will arrange to visit China.

2. Product Services:

       Design---Production---Deb ing---Inspection---Shipment---Installation

3. General Service:

a. 14 months warranty when products leave the factory, or 12 months warranty after installation and

commissioning in addition to the human damage factors.

b. 2 years spare-parts provided for better maintenance.

c. Professional technical staffs provide installation, commissioning and training services.

d. Delivery with English user manual, parts manual, product certification and other relevant certificates.

e. Technical advisory for any time.

                                                              COUSULTANT GUIDE



Please tell us your specification according the above instruction, if difficult to you, kindly see the

below the basic parameters or tell us your questions. We will choose a suitable products for you.



Or Just tell me where you will use, then it is my turns.



• Load capacity:   (2t, 5t, 10t, 16t, 20t, .....)

• Lifting height:    (2m, 3m, 4m, 5m, 8m.......)

• Span? with cantilever or not? (18m, 22m, 26m, 31.5m..........)

• Working voltage: ( 3-Phase 380V 50HZ, 3-Phase 440V 50HZ,......)

.

http://www.jrcrane.com

http://www.jrbridgecrane.com/

http://www.jinruicrane.com/

http://www.jrgantrycrane.com/

http://www.gkqzjx.com/


Product Image

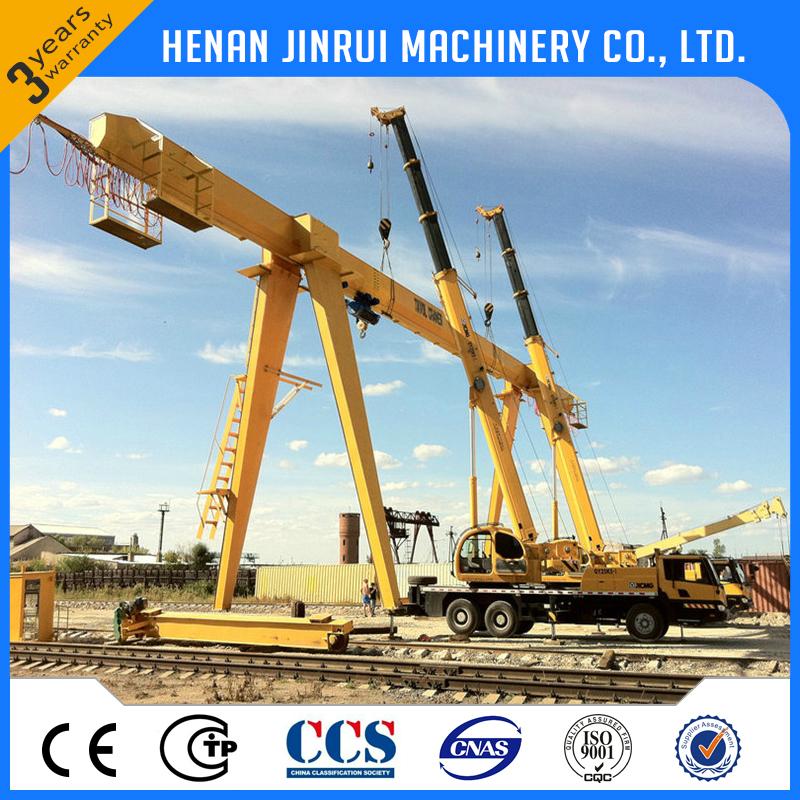

Outside Single Beam Electric Hoist Gantry Crane 1
