Inspection Services Gantry Shipping Container Mobile Gantry Crane

Model:MH
Brand:Jinrui
Origin:Made In China
Category:Transportation / Logistics / Lifting Systems
Label:Container Crane , Mobile Crane , Crane Machine
Price: US $6000 / SET
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

Henan Jinrui Machinery Co., Ltd.

Free MemberHe Nan - China
Live Chat:Last Online:05 Aug, 2016

Product Description

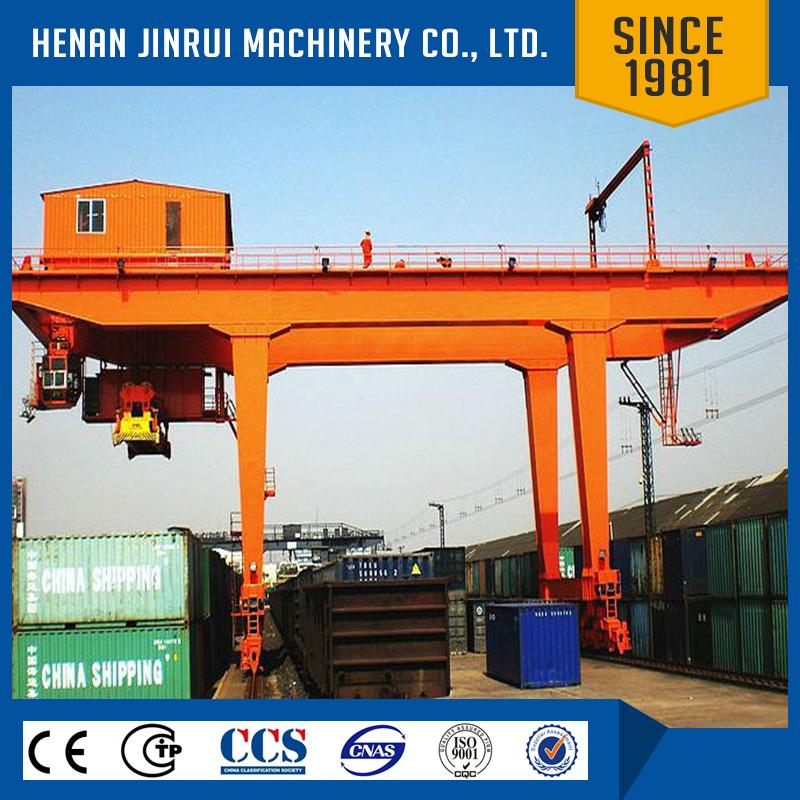

MG type double girder gantry crane composed of gantry, crane crab, trolley traveling mechanism, cab and electric control system, The trolley can move horizontally on a pair of rails on the beam. Cabin used for operating, with seats inside.

Floor adopts insulation pads and toughened glass for windows; extinguisher and fan are equipped. Other accessory equipment like aircondition, buzzer, interphone and etc. can beconfigured according to our client’s request.

Specification:

  • Lifting capacity up to 500ton.
  • span is 12m to 35m.
  • Lifting height up to 12m.
  • Applied outside warehouse or railway sideways.
  • This kind of crane is composed of bridge, support legs, crane traveling organ, winch trolley, electric equipment, strong lifting winch.
  • Crane traveling mechanisms are operated in the driver cabin or remote control.
  • Power is supplied by cable or slide wire.







Main Stucture

  • Double girder, welded box beams, the camber line is according to national standard.
  • High safety, high steel degree.
  • Adopts high quality carbon steel, Q235B or Q345B.
  • The main weld is by submerged arc welding automatic welding, nondestructive flaw detection.
  • The end truck adopts 10.9 high strength bolt connection.
  • The crane traveling mechanism adopts separated driving, and it can use trinity drive too, safe and reliable.
  • End beam equipped with buffer block, orbital cleaning device.



Trolley Part

  • It includes motor, speed reducer, brake, coupling, wheels, coiling blocks.
  • No asbestos brake pad and brake block insert use card outfit, safe and reliable.
  • The speed reducer use hard-toothed surface reducer, compact structure, durable.
  • Trolley travelling use seperate drive;
  • Have high loading ability, long service life moving stable;
  • Equipped with the derailment prevention board;
  • Used for Angle round box, equipped with buffer device;
  • Modular design, meet customer needs



Basic parameters



Lifting Capacity (t)

10

16

20/10

32/10

36/16

50/10

Span (m)

18-35

Lifting Height (m)

10-13

Duty Class

A5-A8

Speed
(m/min)

Lifting

8.5

7.9

7.2/10.4

7.5/10.4

7.8/10.5

6/10.4

Trolley

43.8

44.5

44.5

41.9

41.9

38.13

Crane

40

38

38

40

40

38

Motor

Lifting

YZR180L-6/17

YZR225M-8/26

YZR225M-8/26
YZR200L-6/26

YZR280S-10/42
YZR200L-6/26

YZR280M-10/55
YZR225M-6/34

YZR280M-10/55
YZR200L-6/26

Trolley

YZR132M1-
6/2.5*2

YZR132M2-
6/4*2

YZR132M2-
6/4*2

YZR132M1-
6/4*2

YZR132M1-
6/6.3*2

YZR132M1-
6/6.3*2

Crane

YZR160L-6/13*2

YZR160L-6/13*2
YZR160M1-
6/6.3*4

YZR160L-6/13*2
YZR160M2-
6/8.5*4

YZR160M2-
6/8.5*4

YZR160L-6/13*4
YZR160M2-
6/8.5*4

YZR160L-6/13*4

Weight
(t)

Trolley

9

9.5

12

16

18

24

Total

63.2-100

78-106

79-120

95-108

106-155

195

Wheel Pressure (KN)

225-295

255-373

208-289

324-334

314-363

452

Steel Track

43kg/m

50kg/m

Power Source

3-phase A.C 380V 50HZ (As your demand)



 Packing & Shiping

Packing:

1. Steel structures packed by plastic woven cloth.

2. Electrical and other parts packed by wooden case.

3. All parts will be loaded into 20ft or 40ft container.  If  the parts' length beyond 12.0m, they will be loaded onto bulk cargo ship after package.

Delivery time:

within 35 days after receipt of your deposit.

Payment terms:

FOB, CFR and CIF are common trade terms. We can accept payment terms: TT, L/C, west unit, DP, DA and other.

Oversea Installation:

1.We will arrange professional technical staffs provide installation, commissioning and training services.

2.Delivery with English user manual, parts manual, product certification and other relevant certificates.

After-service:

1. 16 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.

2. 2 years spare-parts provided for better maintenance.

3. Professional technical staffs provide installation, commissioning and training services.

4. Delivery with English user manual, parts manual, product certification and other relevant certificates.

5. Technical advisory for any time and Engineers available to service machinery overseas



 About Jinrui Crane

1. Factory establish in -- 1981. With 34 years fabrication experience, we are professional.

2. Factory area -- 600000m². Large production capacity, help customer improve the factory construction time and saving more cost.

3. Exporting to more than 50 countries. Rich exporting experience make us provide a better exporting service, and help our customer avoid more troubles during every step.

4. Rich exprience cooperate with different application industry -- we can provide more reasonable s estion during the process of solutions confirm. Help our customer get a best money performance equipment.

5. 2 years warranty, no worry about the aftersale service.

6. Provide Overseas installation. To make sure the crane can service better for the working.



 Consultant guide

Please contact us and hope have a chance to cooperate with you and your esteemed company.

Main Parameters: What should I do if I want to buy a portal crane?

    Answer:  please try to finish the main specification as below:

    1)  Max load capacity    ---ton

    2) Span   ---m

    3) Lifting height    ---m

    4) Travelling distance       ---m
