USES:
Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring,
ceramics, beverage and beer etc.
Performance Characteristics:

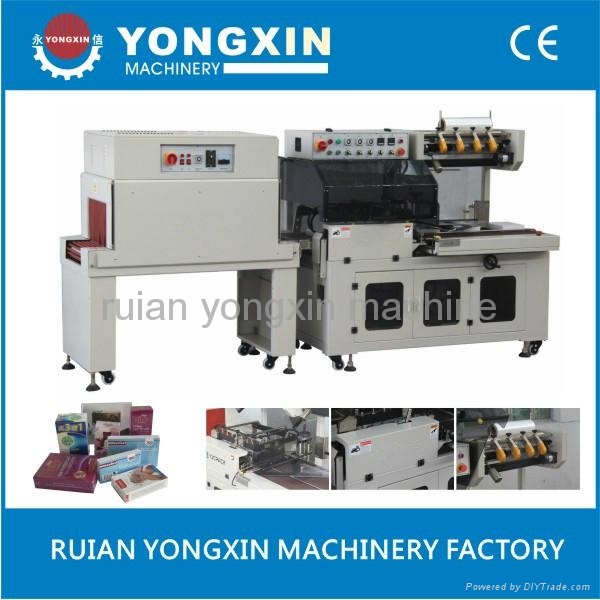

BTA-450A It is a fully automatic L sealer, widely used in pipe lining work for large quantity package with high work
efficiency, installed with pin hole device, adjustable film feeding system and adjustable conveying table, meets different
requirements for different products and it has a kissing device for packing the small products.

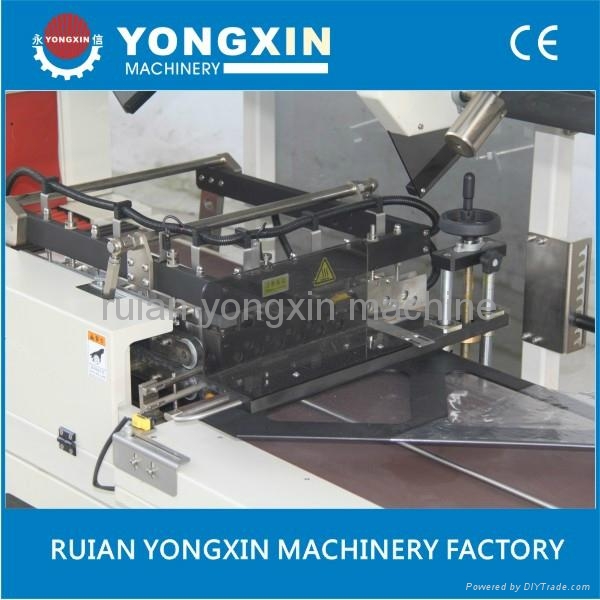

1. Adopts heat resistant alloy cutter plated Teflon, results in good sealing, without melting the film and any smoke
pollution.
2.Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some
thin products, it is also easy to pack them.
3. The length of film feeding, controlled by magic eye and counter, also fixes an inductive motor for collecting wasted film
automatically.
4. When pack different sizes of products, it is simple to adjust, need not to exchange any molds or any bag making
device.
5. To pack different size of products together for sales promotion effect.
6. Adopts OMRON digital temperature controller with PID function, sealing temperature is extremely sensitive and
accurate, can set temperature optionally, the cutter itself has a protective function, avoid from damage the products.
7. The machine fixes an organic safety glass cover, with alarm function, so that the operator is safe.
8. The machine can be connected with the production line, which is no need additional operator.
Main Technical Parameters:
|
Model |
BTA-450A |
BM-500 |
|
Max Packing Size |
(L+H)≤500mm(W+H)≤430mm (H)≤130mm |
(L)700×(W)450×(H)250mm |
|
Max Sealing Size |
(L)550×(W)450mm |
(L)1200×(W)500×(H)300mm |
|
Packing Speed |
15～30 packs/min |
30～50 packs/min |
|
Electric Supply & Power |
220V/50Hz 1.3kw |
380V/50Hz 12kw |
|
Air Pressure |
5.5kg/cm3 |
/ |
|
Weight |
300kg |
220kg |
|
Overall Dimensions |
(L)1850×(W)1000×(H)1600mm |
(L)1350×(W)750×(H)1500mm |
BTA-450A L bar shrink wrapper
|
No. |
Item |
Brand |
Qty |
Note |
|
1 |
Product feeding motor |
SESAME（Taiwan） |
1 |
|
|
2 |
Discharged motor |
SESAME（Taiwan） |
1 |
|
|
3 |
Film unwind motor |
SESAME（Taiwan） |
1 |
|
|
4 |
Film pulling motor |
SESAME（Taiwan） |
1 |
|
|
5 |
Waste film recycling motor |
SESAME（Taiwan） |
1 |
|
|
6 |
Cutting cylinder |
SHAKO（Taiwan） |
1 |
|
|
7 |
Conveyor kissing cylinder |
SHAKO（Taiwan） |
1 |
|
|
8 |
Breaker |
Schneider（France） |
2 |
|
|
9 |
PLC |
OMRON (Japan) |
1 |
|
|
10 |
Temperature controller |
OMRON (Japan) |
2 |
|
|
11 |
Time relay |
OMRON (Japan) |
3 |
|
|
12 |
Auxiliary relay |
OMRON (Japan) |
7 |
|
|
13 |
Solid state relay |
OMRON (Japan) |
2 |
|
|
14 |
Vertical sensor |
BANNER（banner ） |
2 |
|
|
15 |
Horizontal sensor |
BANNER（banner ） |
2 |
|
|
16 |
Electrical magnet valve |
SHAKO（Taiwan） |
2 |
|
|
17 |
Air filter |
SHAKO（Taiwan） |
1 |
|
|
18 |
Approach switch |
AUTONICS（Korea） |
1 |
|
|
19 |
Conveyor |
SIEGLING（Germany） |
2 |
|
|
20 |
synchronous belt |
MITSUBOSHL(Japan) |
2 |
|
|
21 |
Sealing knife |
DAIDO（Japan） |
2 |
Teflon（USA DuPont） |
