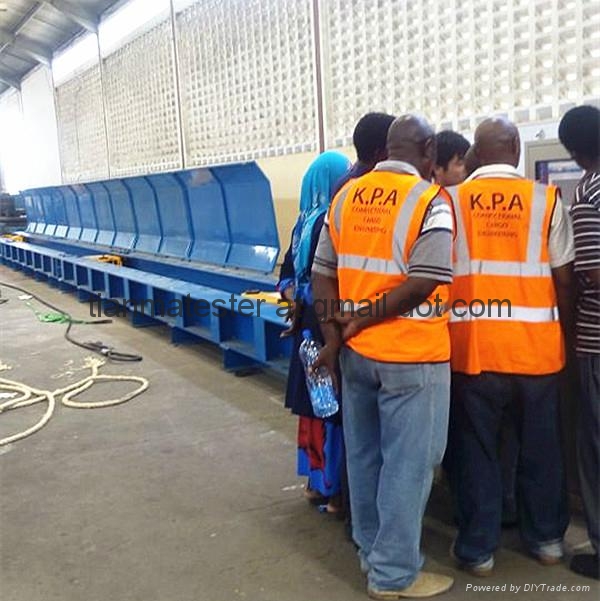

100 Tonnes tensile test machine for chains&slings
Specially designed for tensile test of long material like wire rope, cable, nylon rope, webbing slings, shackels, chain, etc.
Out test bed employs a computer system , analog/digital transmitter.
Automatic print out of test certificate with a diagram.
Fully enclosed hydraulically operated auto protection cover for ultimate safety.
The structure can be taken apart in sections for easy transport, completely modular.
Measurement of elongation.
The computer system based on WIN XP is installed with operator friendly software. Software is very easily operated with keyboard and mouse.
The operator can select the different function (hold test, break test, proof test) by software.
Testing speed and mend speed are adjustable by software.
Testing diagram and data are displayed on the monitor in real time.
Software can operate in English language.
Multi-function selection: Break test, Proof test, etc.
Accuracy: +/- 1%
Computer, printer, and testing software is included, as standard equipment.
Oil tank assembly:two ABB engines, 100L tank, oil filter, cool fan, two pressure gauges, servo va es(Italy), oil tubes, etc
Computer box assembly:one cabinet, one whole set of computer, control software, operation manual, color printer, control buttons, all the circuits
Load cell pad eye:for connection with load cell
Carriages:two carriages suit for the test bed, with 6 pins
Protection cover:3.5-meter protection cover (3 pcs), with 3 pumps and oil tubes
