Detector

Type

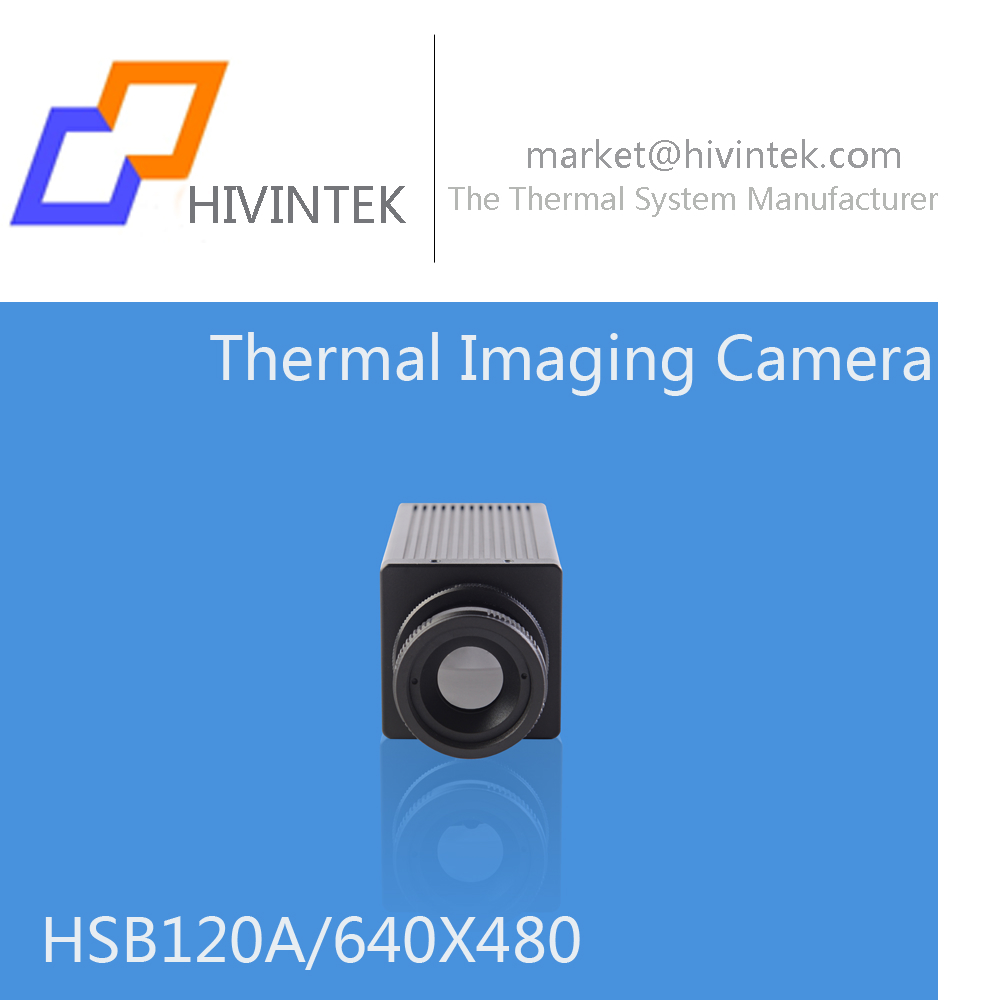

HSB120A

Array format

640×480

Pixel size

17μm

Detector

Uncooled FPA

Spectral range

8~14μm

NETD

≤60mk@30℃


Boot up

≤5S

Calibration

Digital Thermal Imaging NUC

Noise reduce

Digital filtering

Image enhancement

Digital Image Enhance

Electric zoom

2X, 4X, 8X,16X digital zoom

Polarity reversal

Available

Image Flip Option

Horizontal, Vertical , 180° Flip

Frame rate

50Hz

Display

Video output

2 chancels CVBS 50Hz(PAL )/ 60Hz(NTSC)

Digital output

Pseudo-color 8Bit data ; BT656 16Bit Raw data

Palette

12 Palettes

Level adjustment

Automatic/Manual

Brightness/Gain

Automatic/Manual

OSD

Firmware programmable,  Full-screen overlay

Interface

Serial Port

3.3V TTL signal

485

1 port

Analog interface

2 ports

Keyboard control

Available

Digital interface

Pseudo-color 6Bit data;BT656 16Bit Raw data

Power Supply

Operate voltage range

DC 3~12V

Power consumption

<1.5W

Reverse connect protect

Available

Over-voltage protection

Available

Environment

Operating temp.

-40℃~+60℃

Storage temp.

-50℃~+85℃

Humidity

≤95% (non-condense)

Lens

Focal length

(8 ,10 ,15 ,19 ,35 ,50 ,75 ,100 mm optional)

Focus

Fixed, manual, electric (optional)

Physical

Dimension

41mm x 38mm x 38mm(L x W x H) without lens

Weight

<70g(without lens)

Features

Calibration

Digital Thermal Imaging NUC

Image enhancement

Digital Image Enhance

Output & Interfaces

Multiple interfaces, support varies I/O

Boot LOGO

Customize boot LOGO

OSD overlay

Firmware program, Full-screen overlay

Protect

Reverse connect protect,Over-voltage protect

Stronger structure

No moving parts, stronger structure
