| Model: | WT SERIES |
|---|---|
| Brand: | WANTONG |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | ALTERNATOR , BRUSHLESS ALTERNATOR , DIESEL ALTERNATOR |
| Price: |
US $800
/ pc
|
| Min. Order: | 20 pc |
| Live Chat: | Last Online:06 Jul, 2020 |

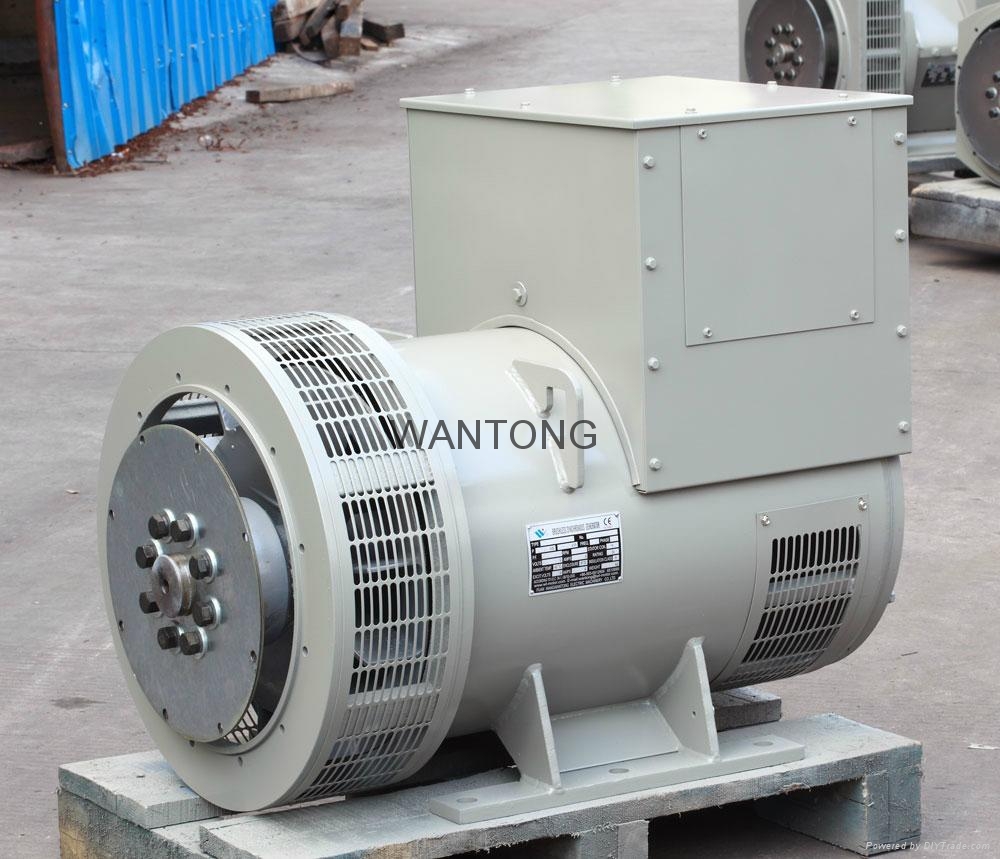

A.C. Synchronous Dynamo
WANTONG WT-C4/C5 series Features:
1) Rated output: 200-536KW (250-670KVA)
2) Rated voltage: 400/230V, 380/220V, etc.
3) Rated frequency: 50 / 60Hz
4) Rated speed: 1,500 / 1,800rpm
5) Three-phase four-wire
6) Protection: IP21-IP23
7) Insulation: Class H
8) Standard: International Electrician Committee Command Standard IEC34,
International Standardization Organization Command Standard ISO8528
NEMA standard
9) Engine can be connected with steel or flexible materials
10) Steel frame cast-iron cover
11) Excellent silicon steel chip
12) Imports all bearing
Parameter
| Brushless Alternator Model | Frame No. | CONTINUOUS DUTY | Form | |||
| Rated Output(KW/KVA) | Specification | |||||
| KW | KVA | Packing Size | G.W/N.W | |||
| WT-C4C | 9#315 | 200 | 250 | 130×70×98 | 770/730 | Rounded
Steel Plate |
| WT-C4D | 9#315 | 240 | 300 | 930/860 | ||
| WT-C4ES | 9#315 | 260 | 325 | 950/880 | ||
| WT-C4E | 9#315 | 280 | 350 | 1180/1100 | ||
| WT-C4FS | 9#315 | 300 | 375 | 1180/1100 | ||
| WT-C4F | 9#315 | 320 | 400 | 1180/1100 | ||
| WT-C5C | 10#355 | 360 | 450 | 145×80×110 | 1500/1420 | |
| WT-C5D | 10#355 | 400 | 500 | 1660/1570 | ||
| WT-C5E | 10#355 | 480 | 600 | |||
| WT-C5FS | 10#355 | 500 | 625 | |||
| WT-C5F | 10#355 | 536 | 670 | |||
| Payment Terms: | TT/LC |
|---|---|
