| Model: | DP4080 |
|---|---|
| Brand: | SANWAY |
| Origin: | Made In China |
| Category: | Computers & AV Digital / AV Equipment / Audio & Sets |
| Label: | digital processor , audio processor , sound processor |
| Price: |
US $360
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:31 Aug, 2017 |
Description

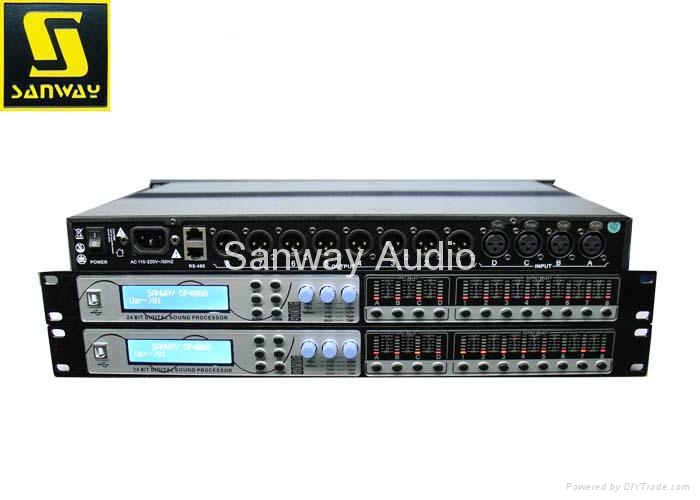

This product is a 1 u rack type programmed 4 input / 8 output 24-bit digital audio processor. The programming is operated through the front panel and a 2 x 20 characters display, with a very intuitive and a user-friendly interface. The Pc system software can be used via a PC platform. This product is more than a frequency divider. It can also provide signal distribution , gain control , balance, decay. The bandwidth is from 0.05 oct to 3.0 oct.
Features
1 . 4 channels signal input , 8 channels signal output
2 . 96KHZ sampling frequency
3 . 24 bits high performance analog-digital converter, the fastest 32 bit floating point computing chip is adopted
4 . Each input channel is equipped with six parametric equalizer, each output channel is equipped with six parametric equalizer, +15 db gain and -30db decay. The bandwidth is from 0.05 oct to 3.0 oct.
5 . Each input and output channel is with mute function editing button.
6 . Delay time can be adjusted using milliseconds as the unit of time , from 0 to 1000 ms, convenient calculation.
7 . 30 programmes can be stored
8 . Password can be set to protect the program
9 . Compression function is provided . You can adjust starting attack and release times independently.
10 .2 lines of 20characters LCD display.
11 . Output channel can be freely chosen , there are A, B, C four patterns of output. Each output is with +15db and -30db gain.
12 . Each channel is with phase selection, namely the positive and negative phase.
13 . Many kinds of high and low pass filter and the slope can be chosen from.
Specification
| MODEL: | DP4080 4IN&8OUT Digital Speaker Processor |
| Input: | 4 channel, 10K ohms balance |
| Output: | 8 channel, 600 ohms balance |
| PC Com Port: | 1 USB Com Port on front panel, 2 RS485 Com Port on back panel (RJ-45) |
| Processor: | 96KHz Sampling frequency, 32-bit Floating-Point DSP, 24-bit A/D and D/A converter |
| Dynamic range: | >108dB |
| Frequency Response: | ±0.25dB, 15Hz --- 20KHz |
| Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
| Signal to noise ratio: | >110dB |
| crossover filter: |
Each output channel can be independently set as LPF and HPF, The parameters canbe adjusted, Filter type:Butterworth, Bessel, Linkwitz Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 db/octave |
| EQ: |
Bandwidth:0.016 to 4.0 oct, Frequency:20Hz to 20KHz, Gain: -30dB to +15dB, step:0.1 dB |
| Delay: | 0ms to 1000ms |
| Gain: | -40dB to +12dB |
| Display: | 2 x 20 LCD |
| Store Settings: | 30 user program dynamic storage |
| Size (H x W x D) : | 45 mm x 483 mm x 288 mm |
| Power supply: | 50/60 Hz, 90 - 240V/AC |
| Power consumption: | < 22 W |
| Net Weight(kg) | 3.3kg |
| Gross Weight(kg) | 4.6kg |
