| Model: | Customized |
|---|---|
| Brand: | Believe Industry |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts |
| Label: | roll forming machine , cable tray machine , cable tray roll form |
| Price: |
US $120000
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:23 Nov, 2017 |
Description:

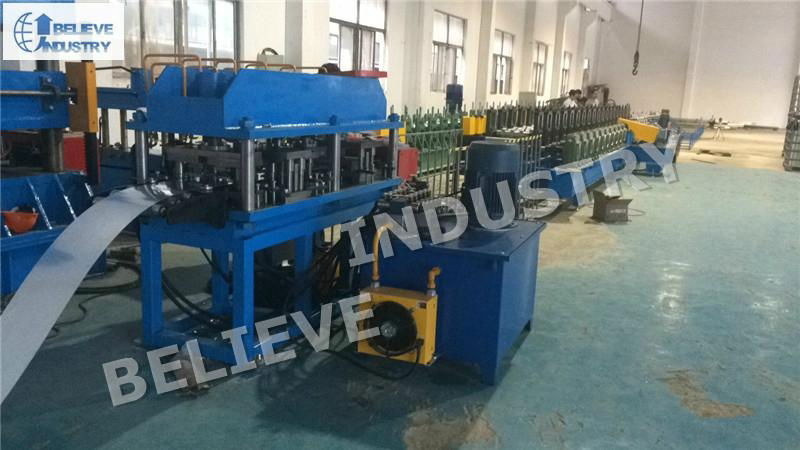

We can manufacture cable tray forming machines with different specifications, and our cable tray forming machine can produce cable trays with 100-900mm width. The main components of the equipment are decoiler, flattener, servo punching device, roll former, cutting device, hydraulic pump station, product table, and control cabinet, etc.
This machine adopts servo punching system, thus high speed and continuous punching is achieved. Controlled by PLC, this equipment enjoys high quality forming and high speed production.
Properties:
The frame of cable tray forming machine adopts formed steel construction and after welded, this machine utilizes integrity processing technology. It enjoys rational and beautiful structure, strong carrying ability, and stable and reliable performance. The forming roller of this machine is designed by professional technicists.
The machine undergoes high precision processing and heat treatment before chromeplate. So this machine is characterized by high forming precision and long service life. The main components of this device are from products of famous brands, thus ensuring the whole performance and quality. Controlled by PLC, this machine is easy to operate, thus workers without special training can operate it very well. This equipment is convenient to debug, and enjoys low noise and high efficiency.
Operation and Points That Need Attention:
The cable tray forming machine is totally controlled by PLC. So only by inputting related production data such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and carry out relevant operation.
Maintenance and Lubrication:
Users should regularly do lubrication for chains, wheels, bearings and speed reducer, etc. And the forming rollers and machine should be kept clean.
Transportation and Packing:
This kind of machine should adopt nude packaging and sea shipping by container.
Parameters of the Machine:
1. Suitable material: cold rolling steel, hot rolled coils, galvanized coils and general carbon steel, etc.
2. Suitable thickness: 1-2mm (offering custom made thickness at requirements of customers)
3. Forming specifications: depending on specific requirements of customers
4. Forming speed: 10-15m/min
5. Main motor power: depending on specific requirements of users
6. Servo feeding, high-speed punching, hydraulic cutting without wastes
7. Hydraulic pump station power: at users' specific requirements
8. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
9. Optional accessories: hydraulic uncoiler, etc
www.believeindustry.com
yoyo@believeindustry.com
What's app:+86 18762653637
| Payment Terms: | T/T (30% T/T as deposit, 70% T/T before shipment) |
|---|---|
