| Model: | ZT-180 |
|---|---|
| Brand: | ZT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Welding Machinery |
| Label: | HIGH FREQUENCY WELD , H.Q. WELDING MACHINE , PLASTIC WELDER |
| Price: |
US $8000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:26 Nov, 2015 |
Double Head High Frequency Welding Machine
Specification:
| Model | ZT-5GK/Y2JB | ZT-8GK/Y2JP | ZT-12GK/Y2JB |
| Oscillation Frequency | 27.12MHZ | ||
| Power Supply | AC380V 50HZ | ||
| Input Power | 8.5KVA | 15KVA | 18KVA |
| Oscillation Tube | 7T85RB | 7T69RB | E3130 |
| Rectifier | silicon detector | ||
| Max Pressure (kg) | 5T | ||
| Max Gap of Electrodes | 70 | ||
| Press Strokes(mm) | 70mm | ||
| Size of Upper Electrode (mm) | 300x160mm | ||
| Lower Electrode Size (mm) | 450x350mm | ||
| Operation mode | Air-Hydraulic Intensifier | ||
| Net Weight(kg) | 760kgs | ||
| Gross Weight(kg) | 840kgs | 900kgs | |
| Packing Measurement(mm) | 2150(L)x1000(W)x1760(H)mm | ||
Features:
High frequency output
High frequency
Synchronous
Hydro-Pneumatic
Double head
Semi-Automatic
Application range:

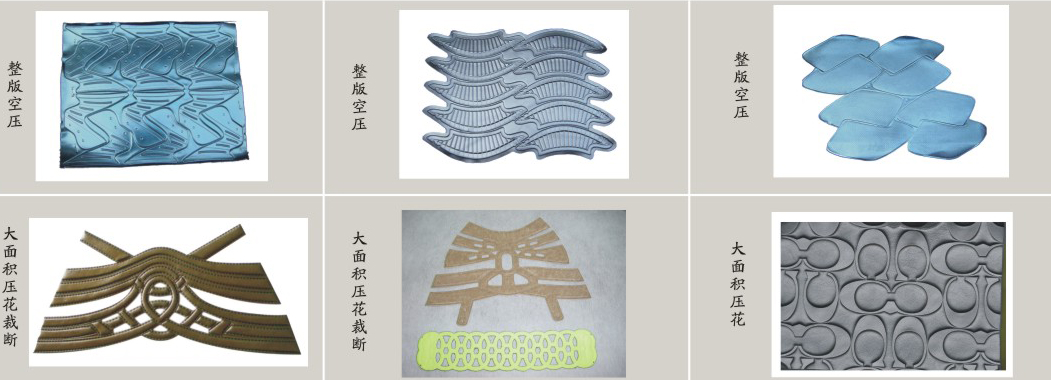

Suitable for PVC PU EVA synthetic and real leather embossing,for making shoe upper,insole,vamp,trade mark,inflatable label,tag,logo,wallet,bag,PVC stretch ceiling,inflatables,etc.
Our service:
The warranty time of all the machines is 12 months,engineer available to service machinery overseas, please feel free to contact us through Trademanager or send inquiry to us at any time.
Picture:
