| Model: | KQHL-2 |
|---|---|
| Brand: | KAI QIAN |
| Origin: | Made In China |
| Category: | Transportation / Transportation Facilities / Parking Facilities |
| Label: | 4 post parking lift , simple parking lift , parking lift |
| Price: |
-
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:06 Jan, 2021 |

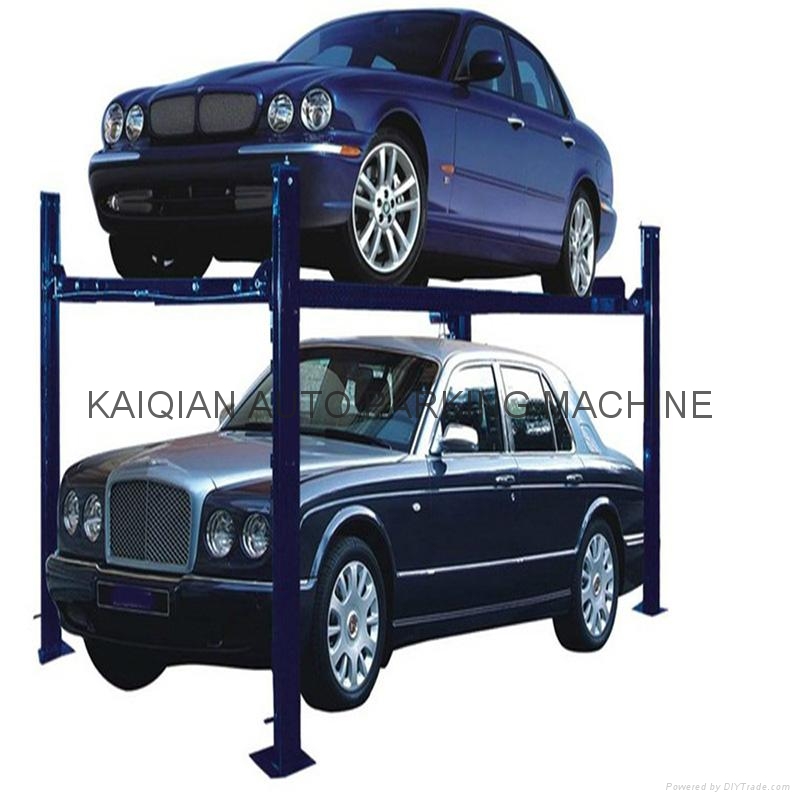

KQHL-2 Four Post Parking Lift
Description :
|
Suitable Parking Cars |
Model |
Small Car |
Mid-Size Car |
Large Car |
|
Car Size |
Length*Width*Height |
Length*Width*Height |
Length*Width*Height |
|
|
(mm) |
≤4400×1750×1450 |
≤4700×1800×1450 |
≤5000×1850×1550 |
|
|
Car Weight |
≤1300Kg |
≤1500Kg |
≤1700Kg |
|
|
Requirement Space |
A(mm) |
4700 |
5000 |
5300 |
|
B(mm) |
1800 |
1880 |
1950 |
|
|
C(mm) |
3500 |
3500 |
3500 |
|
|
D(mm) |
2203 |
2253 |
2303 |
|
|
E(mm) |
2550 |
2600 |
2650 |
|
|
F(mm) |
3022 |
3022 |
3022 |
|
|
G(mm) |
1900 |
1950 |
2000 |
|
|
Motor Power |
Lift Motor |
1.5Kw |
1.5Kw |
1.5Kw |
|
Rated Speed |
Lift Speed |
2.5m/min |
2.5m/min |
2.5m/min |
|
Drive Mode |
Motor,Chain |
Motor,Chain |
Motor,Chain |
|
|
Power |
3 Phase 5 Wire 380V 50HZ |
3 Phase 5 Wire 380V 50HZ |
3 Phase 5 Wire 380V 50HZ |
|
|
Control Mode |
Button and Remote Control System |
Button and Remote Control System |
Button and Remote Control System |
|
|
Surface Treatment |
Galvanized , Painting |
Galvanized , Painting |
Galvanized , Painting |
|
|
Inner Width of Pallet(MM) |
1900 |
1950 |
2000 |
|
Features
1. Save land area and take full use of space, columns can be arranged according to your requirements.
2. Low equipment cost and maintenance cost.
3. Vertical lift and easy cooperation,lift smoothly with low noise,convenient for car goes in or out.
4.Comprehensive security protection system, such as safety anti-falling hook and emergency brake mechanism.
5. Adopt the control system with button and remote control, make operation very easy.
| Payment Terms: | T/T L/C |
|---|---|
