QTP manual crane towers pt5010 Construction cranes prices in Algeria
Product Description
|
QTP manual crane towers pt5010 Construction cranes prices in Algeria
Specification
| Rated Lifting Moment |
500KN.M |
| Rated Loading Capacity |
5t |
| Max. Lifting Load |
5t |
| Tip Load |
1.0t |
| Max. Lifting Height |
120m |
| Free standing height |
30m |
| Rope length |
320m |
| Span |
50m |
| Working range |
3 to 50m |
| Slewing speed |
0.6r/min |
| Trolley peed |
38.6/25.2 m/min |
| Jacking-up speed |
0.4 m/min |
| Counter jib length |
13m |
| Tower height height |
6.2m |
| Power supply |
380V/50Hz or according to client's requirments |
| Power Capacity |
24.9Kw |
| Electric switch box |
Schneider |
| Hoisting speed |
(a=2)65.14/32.57/7.0 ; (a=4)32.14/15.60/3.5 |
| Main Material |
135*135*10mm square steel /Q235B |
| Mast section |
1.6*1.6*2.5m |
|
Technical Features
• The operation modes crane boasts and wide application.
• The complete crane adopts internationally well-received beautiful shape.
• The crane features high working speed and excellent speed regulation performance.
• The cabin is independently installed externally with good vision and large inner space, thus offering a good working environment for operators.
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.
| Payment Terms: | TT/LC/30% deposit and 70% before shipment |
| |

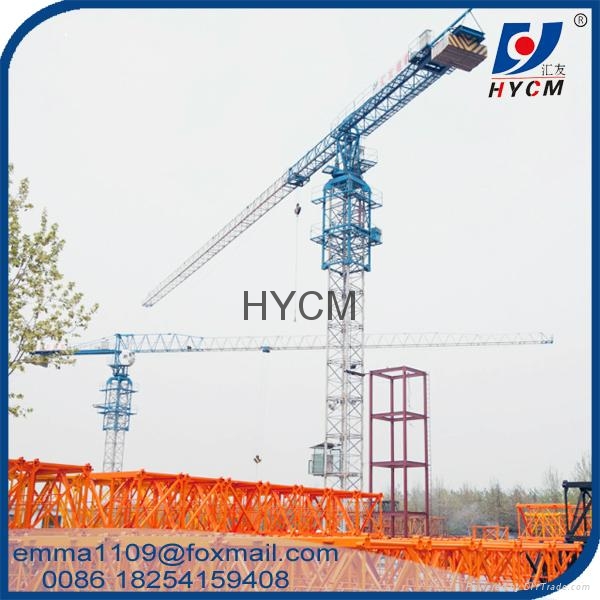

Product Image
