| Model: | - |
|---|---|
| Brand: | KMJ |
| Origin: | Made In China |
| Category: | Transportation / Logistics / Storage Equipment |
| Label: | steel drive in rack , pallet racking , drive in pallet rack |
| Price: |
US $30
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:26 Dec, 2016 |

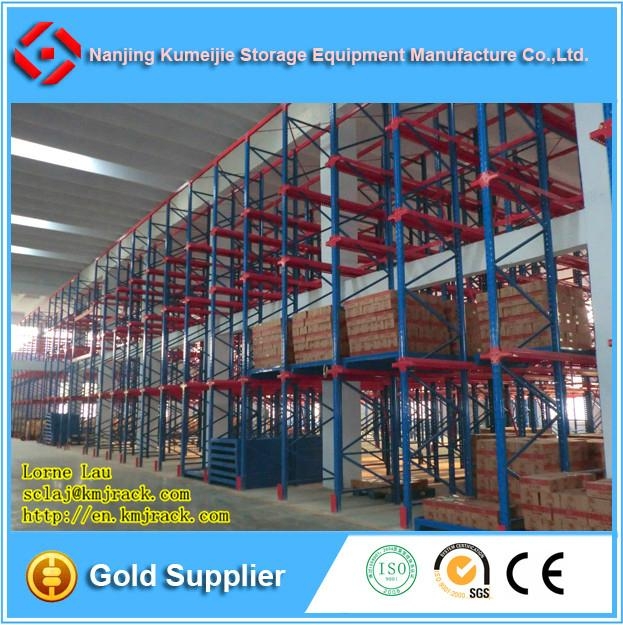

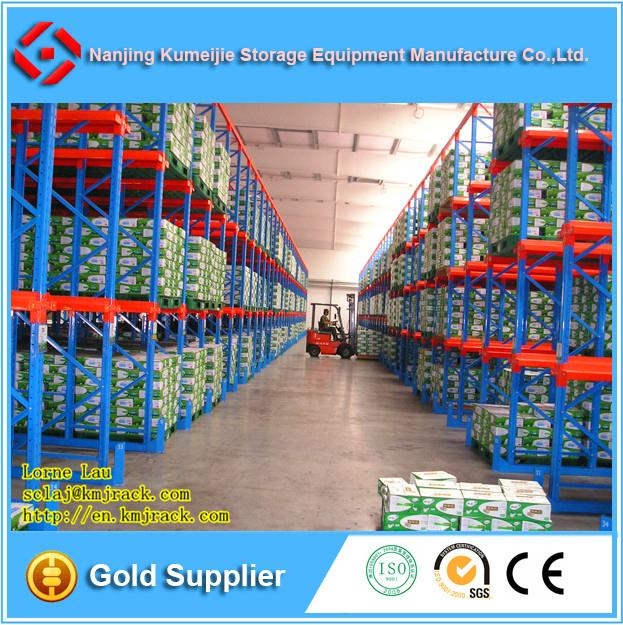

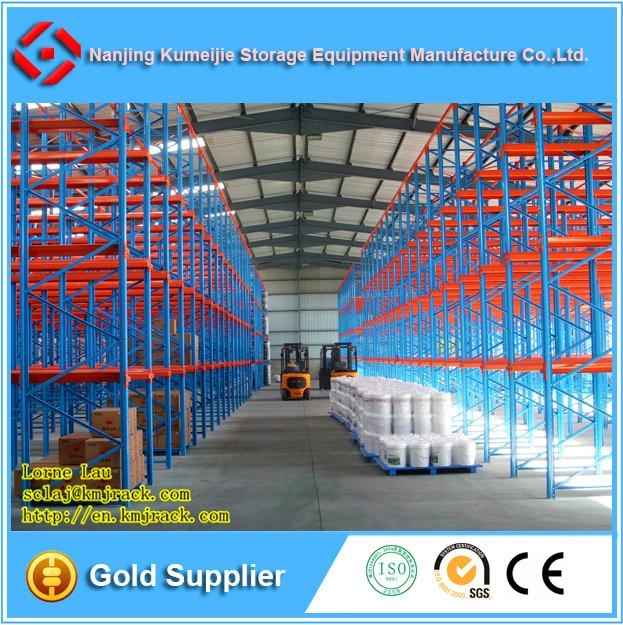

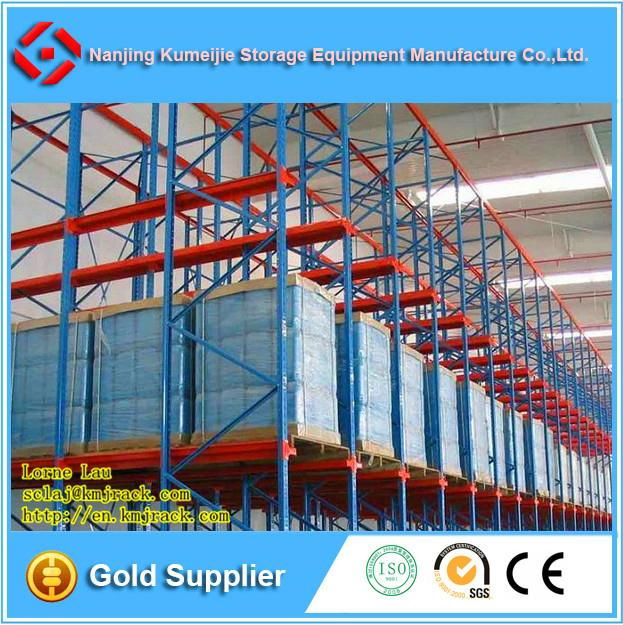

Heavy Duty Drive-in Racking
Heavy-Duty Drive-In Pallet Racks for High-Density Storage:
Drive-In Racks allow a lift truck to enter the rack from one side to pick up or pull out pallets. This is done because pallets can slide backwards on a continuous rail. Forklifts drive into the rack to access pallets two or more deep. You are limited in the depth of storage for a particular bay by the size of your facility. Drive-In racks are typically subject to more abuse than selective racks due to the way they are utilized, so rack integrity and strength are important factors. It is ideal rack for cooler or freezer applications.
This is a last-in, first-out arrangement for your pallets:
Drive-In & Drive-Through Racks offer the ability to store a large amount of similar loads in a smaller area. Selectivity is sacrificed, but storage density is outstanding. Drive In Racking can store up to 75% more pallets in the same space than selective racking -- depending on your application. It requires fewer aisles and is better cubic storage.
Drive In RackS Drive-In RackING Drive In Racking system.
Structure:
Determinant:
1. The weight of your goods (trays, steel containers / boxes are included).
2. The dimension of your goods together with pallets (Length Width Height).
3. The maximum height of your forklift and the available height of your warehouse.
4. The dimension of your forklift.
5. The fork direction.
6. The dimension of your warehouse.
7. The path of the transportation.
Advantages:
1. It is suitable to be used in factories, manufactures, warehouse and logistics center etc.
2. Size (L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm.
3. Perfect for storing categorized products in a neat and tidy way.
4. Heavy-duty shelf set for warehouse shelving.
5. Strong and safe structures.
6. Easy installation.
7. Customization is acceptable
| Length | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
| Beam Specification | Load/kg | |||||||
| 80×50 | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 |
| 100×50 | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 |
| 120×50 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 |
| 140×50 | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 |
Our warehouse and machines:
Packaging and Loading:
Most of our products:
Our service: Design-Manufacture-Install
Our Promise:
1. One-stop-source for all types of industrial racking needs.
2. Accurate evaluation of your requirements and system specification.
3. Wise price for the best value product.
4. Easy ordering process.
5. Products could be customized according to your request or design.
6. Professional packaging and shipment.
7. Expertise after-sales service.
For quick quotation:
In order to know your requirements, provide you more s estions according to your requirements, and give you an offer, we’d like you to provide some information for us, See below:
1) What's the name of your company? Does your company have a website?
2) What specific products does your company sell? What the weight of your product?
3) Racking design drawing (if available).
4) Detail size of your warehouse.
5) Requests of racking:
A. Size of racking (H*W*L)?
B. Loading capacity of each level?
C. Color options (Please check RAL color chart).
