| Model: | 2/3/4P |
|---|---|
| Brand: | VASK |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Commerce & Finance Electronics / Other Commerce Electronics |
| Label: | connector , Luminaire & Lighting , electronic component |
| Price: |
¥0.003
/ pc
|
| Min. Order: | 500 pc |
| Live Chat: | Last Online:11 Dec, 2017 |
Comply with IEC/EN60998-2-2

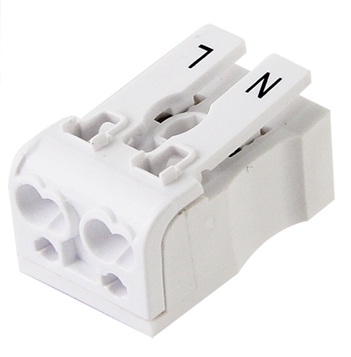

- Pushwire "Quick-Connection" / GLS Earthing Snap
- Easy mounting (with 'fixing - snaps')
- Printing on Press-release Button: upon user's requirement
| Specification | |||||
| Housing : Polyamide 66 | |||||
| Metal Part : Plated Brass / Steel spring | |||||
| Voltage (V) : | IEC / EN 450V ; UL 300V | ||||
| Ampere(A) : | 10 (for operation) | ||||
| Wiring Capacity (mm2) : | Wiring Holes
(a) + (b) 0.5 - 2.5 |
Wiring Hole
( c ) 0.5 - 0.75 |
|||
| Installation / User-side | |||||
| (with press-release button) | |||||
| Factory / Internal - side | 0.5 - 2.5 | 0.5 - 0.75 | |||
| (without press-release button) | solid only |
solid only
|
|||
| Payment Terms: | TT in advance |
|---|---|
