Industrial Flat Front Panel Touch Screen PC with RFID

Model:EB-97FP
Brand:RESUN
Origin:Made In China
Category:Computers & AV Digital / Computers / Embedded Computer & SCM
Label:industrial panel pc , RFID panel pc , panel pc
Price: -
Min. Order:-
Inquire Now Add to Basket

Company Information

Detail

Resun Electronics Co.,Ltd.

Biz MemberHong Kong
Live Chat:
Last Online:21 Oct, 2017

Product Description

This Industrial Panel PC is equipped with strong performance CPU.
No gap between the screen & pc enclosure,
True Flat Panel with projective capactitve touch screen.
Its Front Panel meets IP65, which is the perfect solution for harsh environments.
Windows xp, Wind 7, Windows 8, also Linux operating system support.
Built-in RFID reader.(frequency is optional, like 13.56MHZ, etc.)
Heat-Sink for thermal dissipation through its aluminums housing.



CPU  Intel® Celeron® Processor N2807 (1M Cache, up to 2.16 GHz) Dual core
RAM 2GByte DDR3-1333  /  4GByte DDR3-1333
Hard Drive 16GByte  / 32GByte  / 64GByte  / 128GByte   mSATA SSD
Graphic Intel® HD Graphics 533 MHz
Audio Realtek HD ALC 282  ,   2*2W  loudspeaker
LAN Intel I211AT, 2*10/100/1000Mbps, RJ45 Ports
USB 4* USB 2.0 ports , 2*USB 3.0 ports
RFID 13.56MHz                                                                            ISO14443A/B/ISO15693
Support:                                                                                     Mifare One S50/S70                                                                      Mifare One UltraLight/ UltraLight-C                                           Ntag203/213/216                                                                              I-code2, I-code-x, I-code-s

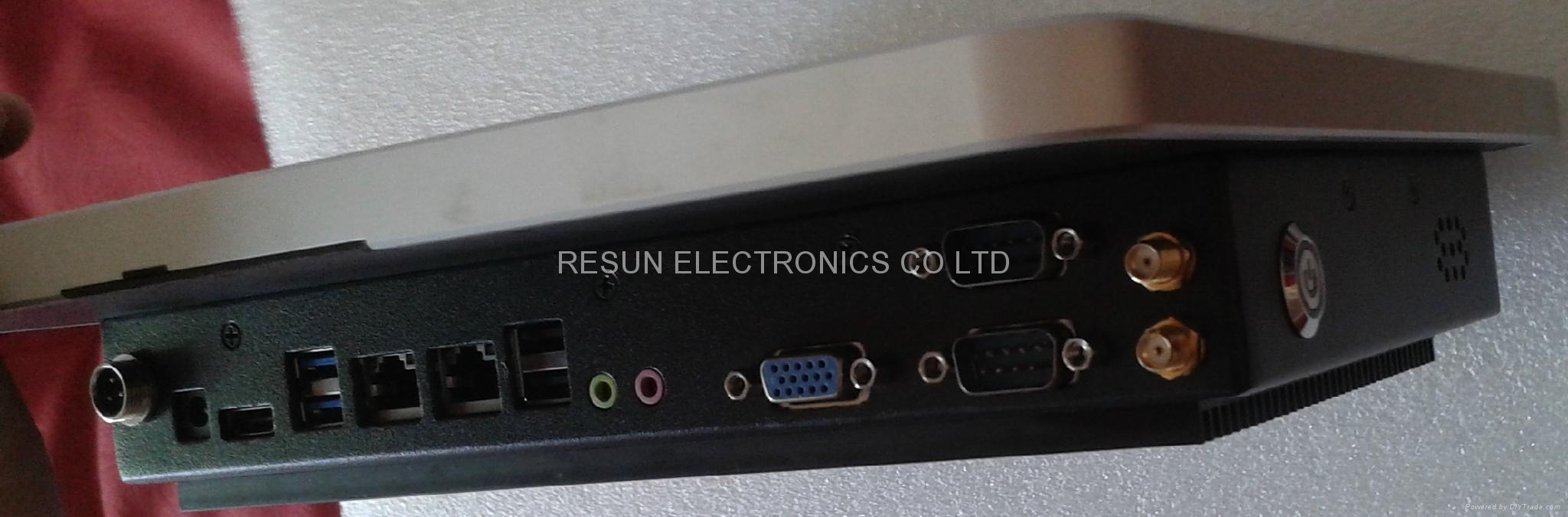

External Ports HDMI
2*USB 3.0
2*USB 2.0
2*RJ45
Audio-in/ Audio-out
VGA
2* COM-RS232
W-LAN-Antenna connectors
Power on/off
2*DC-IN (1*screwable)
SATA (Install from outside SSD/HDD)
Internal port  2*Sata 300MB/S (1*MSATA)
1*MiniPCI-E
GPIO
1*RS485/422
4*COM-RS232
Power consumption 18W
Input Voltage 9V~24V DC-IN (Wide voltage)
OperatingTemperature , -10℃ to +60℃
Storage Temperature ,-20℃ to +70℃
Driver Windows, Linux;
Active Area 196.608x147.456mm
Aspect Ratio 4:3
Physical Resolution 1024(W)*768(H)
Brightness 350cd/㎡
Contrast Ratio 500:1
React time 2ms/6ms
Viewing Angle 70/60/70/70 (Typ.)(CR≥10)(L/R/U/D)
Touch Panel Projected capacitive touch (10 points)
Touch Panel Driver Windows, Linux
React time touch panel <10 ms
Surface Hardness ≥6H
Power Supply  AC100~240V,DC12V
Cooling System Fanless
Front Panel IP65
Install Embedded ,  VESA100, Wall, Desktop
Case Aluminium alloy

Product Image

Industrial Panel PC
Img 1
industrial touch screen panel pc
Img 2
RFID Panel PC
Img 3
