Sierra Wireless smallest module GSM module GPRS Module WS6318 1
  • Sierra Wireless smallest module GSM module GPRS Module WS6318 1

Sierra Wireless smallest module GSM module GPRS Module WS6318

Model:WS6318
Brand:WS6318
Origin:Made In Canada
Category:Electronics & Electricity / Other Electrical & Electronic
Label:ws6318 , GPS MODULE , GSM MODULE
Price: US $18 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Reliance Technology Co., Ltd.

Free MemberGuang Dong - China
Live Chat:Last Online:09 Oct, 2015

Product Description

AirPrime WS6318

The AirPrime WS6318 Intelligent Embedded Module is a highly compact 2G GSM/GPRS 900/1800
module for voice and data connectivity. It includes the radio, baseband, memory, and firmware in a
package specifically designed for M2M applications.



Overall Dimensions

Length: 17.85 mm
Width: 15.05 mm
Thickness: 2.5 mm



GSM/GPRS Features

2 Watts EGSM 900 radio section running under 3.6 Volts (nominal)
1 Watt GSM1800 radio section running under 3.6 Volts (nominal)
Hardware GPRS class 10 capable



Interfaces

Digital section running under 2.8 Volts
1.3V/1V8 SIM interface
2.Complete interfacing and peripheral connectivity:
    VBATT power supply
    10 GPIOs, 1 GPI
     2 Serial links (UART1 and UART2, where UART2 is used for debug purposes only)
    Antenna
    An analog audio that comprise of:
    2 Speakers
    1 Microphone
    Digital audio (PCM)
    2 ADCs
    2 Clock outs
    Debug interface
    ON/OFF
    VCC_2V8 and 2V8_LDO outputs
   Module ready indication
    Reset
    RTC supply input
    2 PWMs
    Buzzer
    TX Burst indication



Firmware

The AirPrime WS6318 is supported with firmware that allows comprehensive control through AT
commands over a serial port and supports the following:

Full GSM/GPRS Operating System stack with standard and dedicated M2M AT commands

FTP and TCP/IP connectivity
Real Time Clock with calendar
Comprehensive usage and control of hardware interfaces



Connection Interfaces

The AirPrime WS6318 has an LGA form factor with 86 solderable pads, including Ground pads, which
provides:

One RF connection pad (antenna connection)
Power supply, module control and interface signals connection




Payment Terms:t/t

Product Image

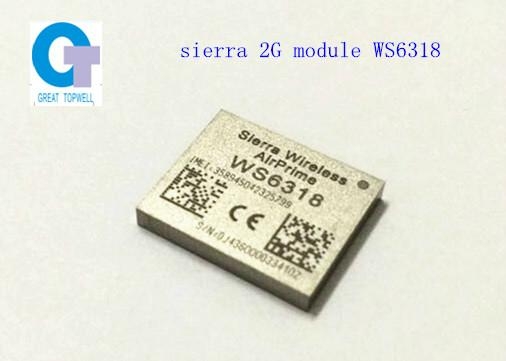

Sierra Wireless smallest module GSM module GPRS Module WS6318 1
