 Brief Introduction

We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Portugal, Finland, Norway, Switzerland, Australia, South Africa, Kenya, Argentina, Taiwan....etc.

Here follows is the specification of 500 liter brewery, please check for reference, if any preference on the configuration, please let us know.

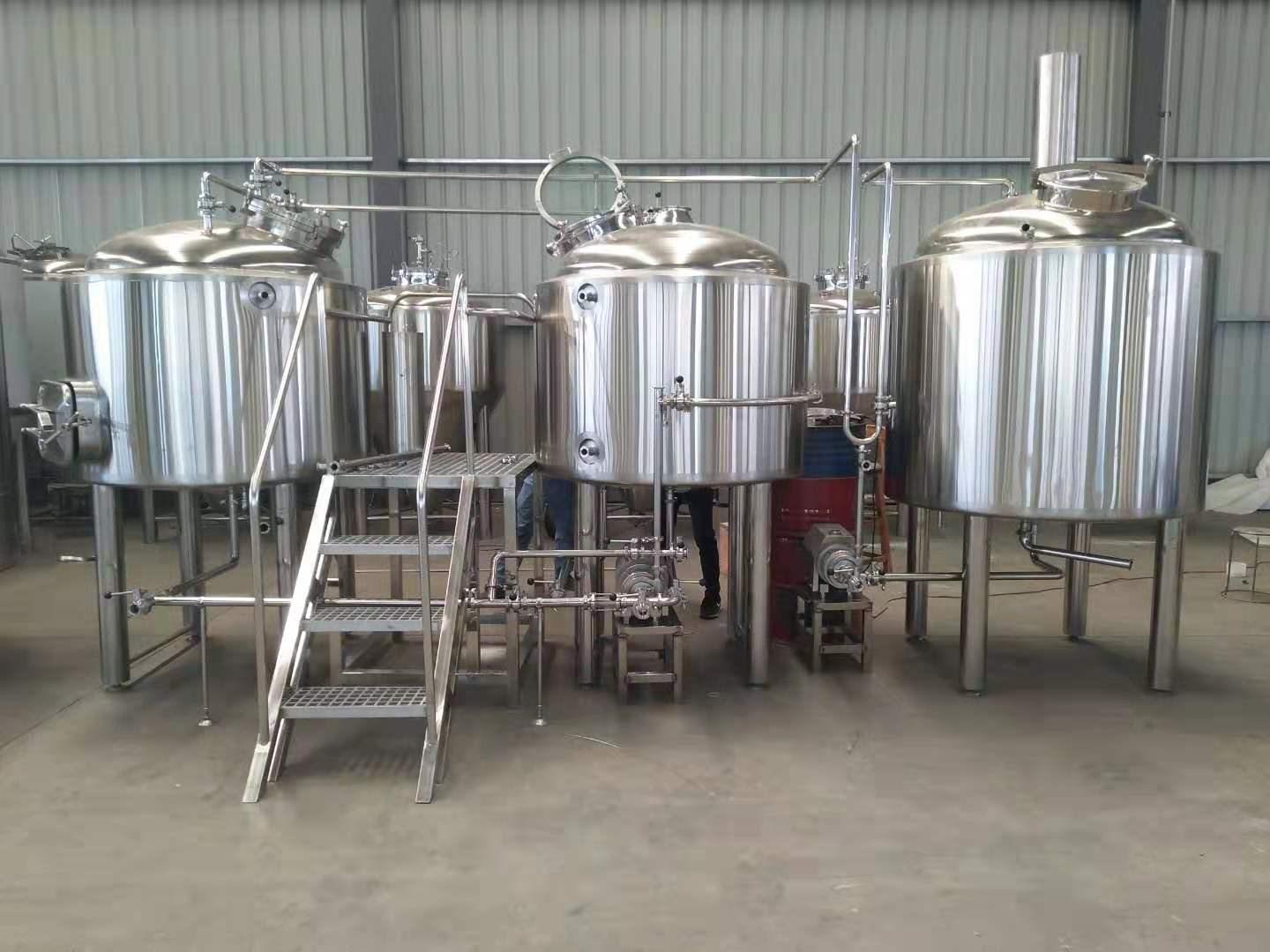

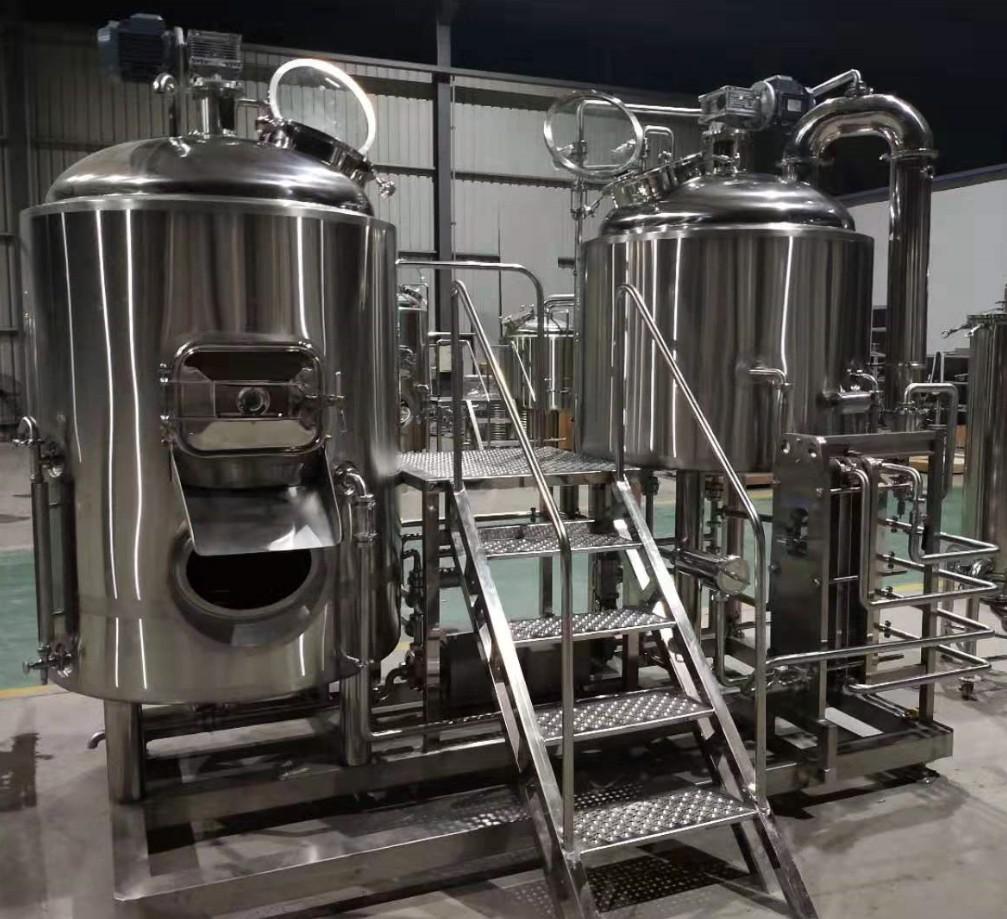

Brewhouse system:

1) - Interior wall stainless steel 304, 3mm;

     -exterior wall stainless steel 304 or red copper, 2mm

2) - Dome top, top manway with glass

    - Side manway, cone bottom 160 degree

3) - Insulation: polyurethane/rockwool 100mm;

    - with inside CIP washing ball

    - agitator

    - removable false bottom

    - sparging arm, sight glass

    -Tangential inlet for whirlpool

    -Thermowell for temperature sensor and thermometer....

    -level tube, auger, grist case, hydrator...(optional)

Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

      - exterior wall stainless steel 304, 2mm

2)  -Dome top, conical bottom

    - Top mounted manway

3) - Insulation: polyurethane 100mm

4) - Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

    - CIP arm

    - dry hops port on top

    - relief&vacuum valve on top

     -sample valve

    - bung device

     -rotating racking arm on cone

     -thermometer

     -carbonation stone (optional)

6)  -Testing pressure: 3 bar

     - working pressure: 1.5-2 bar

     -100% TIG welding with pure argon gas shield

     - Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

Characteristics

1-Brew all kinds of beer: pale beer, brown beer, stout beer....

2-Customized parameter:   a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L, 5000L....)

                                        b. voltage(can be customized)

                                        c. material thickness(genarally inner wall 3mm sus304, outer wall 2mm sus304, insulation PU or rock wool 100mm)

                                        d. dimension(length, height, width)

                                        e. heating source(electric, steam, direct gas fire heating)

3-Water and Pressure Test is made before shipment.

Notice:

Before you inquire, some questions below will be confirmed:

1-How many beer do you want to brewing a batch, 500 liter?

2-What kind of heating source do you prefer, gas direct fire, electric or steam?
