| Model: | DX-PSH-A |
|---|---|
| Brand: | DAZHAO XINYUAN |
| Origin: | Made In China |
| Category: | Transportation / Transportation Facilities / Parking Facilities |
| Label: | parking solutions , car parking system , puzzle parking |
| Price: |
US $2500
/ space
|
| Min. Order: | 1 space |
| Live Chat: | Last Online:24 Sep, 2015 |

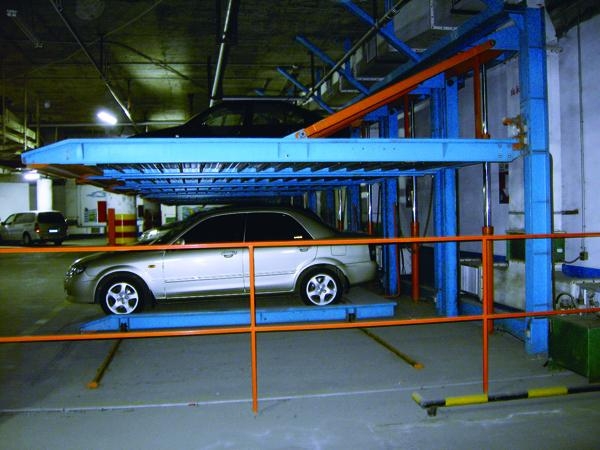

DX-PSH-A PSH(Puzzle type) Double-floor lift-sliding parking system
1. Application of PSH (Puzzle type) Double-floor lift-sliding parking system
1). Lift-sliding mechanical parking system can be widely used by institutions and public services like government agency, CBD, hospital,
school, and theater, as well as residential community.
2). This system can be set up with variable combinations, offering you with different kinds of garage, according to the condition of the
location and your real demand for parking places.
Description & Specification:
|
Suitable Vehicle |
Motor-Chain Type |
Mid sized Vehicle |
Large Size Vehicle |
Oversize Vehicle |
|||
|
Vehicle Size |
4700*1800*1450MM |
5000*1850*1550MM |
5300*1900*1550MM |
||||
|
Vehicle Weight |
≤1500KGS |
≤2000KGS |
≤2350KGS |
||||
|
Space Requirements |
A (MM) |
2300 |
2400 |
2500 |
|||
|
B (MM) |
7100 |
7400 |
7700 |
||||
|
C (MM) |
5300 |
5600 |
5900 |
||||
|
D (MM) |
5550 |
5850 |
6150 |
||||
|
E (MM) |
Second Floor A-440 |
First Floor A-320 |
|||||
|
Equipment Height (MM) |
≥3600 |
||||||
|
Motor |
Lifting |
Power |
2.2KW / 3.7KW |
Speed |
4.2M/Min. |
||
|
Sliding |
0.2KW / 0.4KW |
7.5M/Min. |
|||||
|
Power |
Three-Phase Five Wire AC380V / 50HZ |
||||||
|
Drive mode |
Motor+Chian |
||||||
|
Operation Mode |
Button,Touch Screen, IC Card, Or Manual Operation |
||||||
|
Control System |
PCL |
||||||
|
Entrance&Exit Mode |
Reverse to parking space & Driving exit to parking space |
||||||
|
Average Picking Up |
≤50s |
||||||
|
Showing Video |
|
||||||
3. Feature of PSH (Puzzle type) Double-floor lift-sliding parking system
1). Motor-chain drive mode, you can choose the most suitable combination of system according to the site condition and
requirements, so as to satisfy different customers.
2). Making full use of the effective space, doubling the parking capacity.
3). Modularized assembly: multiple places of several units(modules) can be controlled through one control unit by paralleling
Several units, convenient and flexible.
4). PLC computer controlled, pressing button or swiping card can finish the parking or pick-up, simple and convenient.
5). It can be installed in basement parking lot or outdoors. In front of this system, there must be a lane, and the car shall go
through the lane to the loading board.
6). Possessing completed detection and safety device to ensure the safety of person, car and system.
4. Drawing of PSH (Puzzle type) Double-floor lift-sliding parking system
5. Drawing of PSH (Puzzle type) Double-floor lift-sliding parking system
A single unit will be control separately, or multiple places of several paralleled units will be controlled through one control unit, which
depends on the site condition.
7. Categories Of System PSH (Puzzle type) Double-floor lift-sliding parking system
1).According to the drive mode of lifting, it can be categorized into three types: Motor-chain type, motor-wire rope type, and
hydraulic type.
2).According to the in and out face relative to the system, it can be categorized into two types: ground type and underground type.
3).According to the structure pattern, it can be categorized into two types: framework type and rear cantilever type.
6. Operating principle PSH (Puzzle type) Double-floor lift-sliding parking system
1). The upper loading board of this parking system can only go up and down, while the ground loading board can only
move transversely. One spare place of ground floor for each area has to be reserved for adjusting.
2). You can park or take your car directly while on ground places, and if your car is hung up on upper floor, the corresponding
ground place has to be vacant through adjusting of ground places, thus the loading board can carry your car down.
| Payment Terms: | TT/LC |
|---|---|
