| Model: | AT-HD6008 |
|---|---|
| Brand: | ANTED |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | HDD mobile dvr , 8 channel mobile dvr , 8 ch vehicle dvr |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:22 Jun, 2017 |

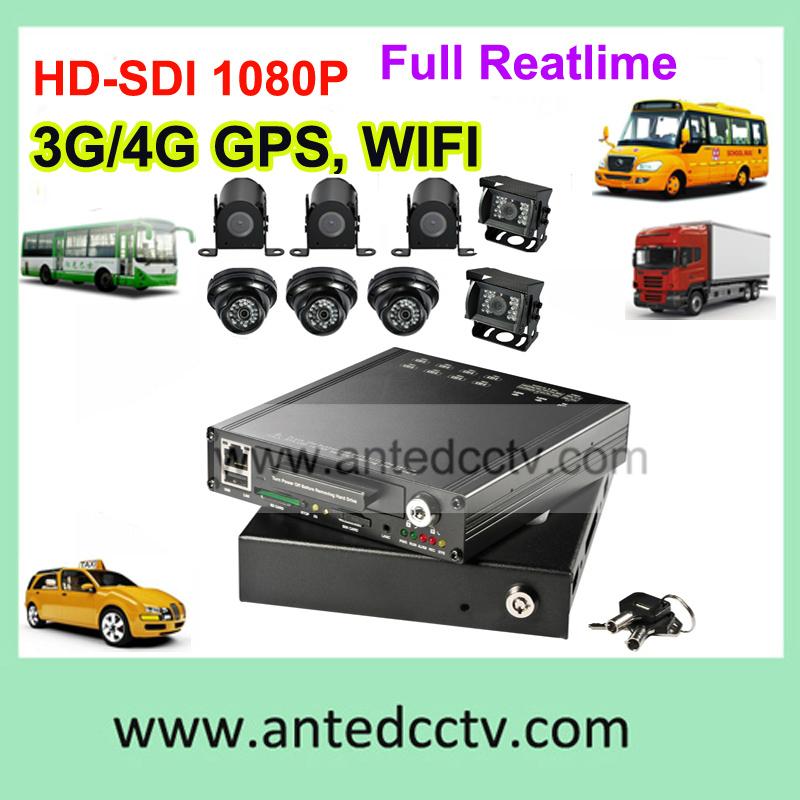

HDD Mobile DVR 8 Channel Full HD 1080p 3G Vehicle DVR systems for buses cars
The 8CH HD Mobile DVR allows up to 8 true high definition (1920*1080) cameras to record the highest video quality. Each camera supports up to 1080p30, ideal for capturing vehicle plate number.
Highlighted features with 3G/4G network
| SPECIFICATIONS of 4/ 8 channel Hard Drive Mobile DVR | ||
| Model | AT-HD6004/ 6008 | |
| System | Operating System | Linux 2.6 |
| Start up Time | 20 seconds (From power on to recording) | |
| Operator Interface | English / Simplified Chinese/Russian | |
| Storage | 2.5" Hard Disc Drive or SSD (up to 2TB), SD Card (up to 128GB) | |
| Video System | H.264 Main/High Profile, HD 1080p30/720p30 Recording for each channel | |
| Voltage Input / Output | Input: 8 V ~ 32 V DC, Output: 12V/1.5A (4 channels) | |
| Video | Video Input | Maximum 8 x 1080p30/720p30 camera inputs |
| Live Video View | PC/Note book/iPhone/iPad/Android Pad/Android Phone | |
| Preview | 1 image / 4 images | |
| Standard Stream | ISO 14496-10 | |
| Recording Resolution | Selectable (1920x1080, 1280x720, 960x540) | |
| Recording | Supports normal, schedule, alarm recording and continuous | |
| Video Compression | H.264 (High profile up to level 4.1) | |
| Max fps (total) | 30fps@1080p/ channel | |
| Audio | Audio Input | 4 channels |
| Audio compression | AAC (16bit, 48KHz) | |
| Interface I/O | LAN | RJ-45 10M/100M Ethernet port |
| USB | Supports USB 2.0 for U-Disk recording | |
| Serial | RS-232×1 | |
| Network | WiFi | Build in 802.11b/g/n AP, speed up to 300Mbps |
| Protocolo | TCP/IP | |
| Communication | 4G/3G/EDGE/GPRS/CDMA (Optional) | |
| Alarm & Sensor | Inputs | 3 Alarm input, 1 ignition, 1 Panic button, G-Sensor |
| Outputs | 1 Beeper, Alarm LED, Email | |
| Multi-mode | Activation by video loss, maximum permissible speed, Collision, SD space, Video Motion, etc.. | |
| Power Supply | Ignition key | Recording starts when ignition is on, stops with delay time when ignition is off. |
| Power Consumption | Average 2.0W (without SD/SSD/HDD and without providing power for the cameras) | |
| Physical Characters | Dimension | 14.3cm x 13.2cm x 3cm (5.63 "x 5.2" x 1.18 ") |
| Weight | 1.08kgs | |
| Others | Backup | By WiFi (300Mbps, Actual download speed up to 150Mbps) |
| Clock | Internal, permanent calendar, Time sync from GPS (if available) | |
| GPS | External GPS module (Optional) | |
| Function Dual Streaming | Allows you to configure the frame rate of different transmission frame rate recording and bandwidth control | |
| Self-protection | Protection against overload, short circuit and reverse polarity | |
| Reset | Option to return to factory default setting | |
| Storage memory | 2.5"SSD/HDD x1, SD card x 1, USB 2.0 x1 | |
| LED’s | Indicates Power, RUN, Alarm, Media Access, Recording status, network and 3G | |
| Method of writing and reading of data | Overwrite ON/OFF selectable | |
| Synchronization time | GPS Time Synch / NTP (Network Time Protocol) Time Synch via networking | |
| Environment | Operating Temperature | -10 ~ 60°C |
| Relative humidity | 5% - 95% | |
| Vibration resistance | < 3 Grms | |
| Resistance to mechanical shock | < 1200 Grms | |
| Embedded Software | Config. FPS per channel | allows (1~30fps) |
| ID records vehicle license plate | allows | |
| USB | Record, Backup | |
| Rename channels | allows | |
| Watermark | fixed | |
| Schedule | Settings year, month and hour | |
| Image Playback | Includes date and time, latitude and longitude, vehicle speed, and vehicle ID plate and name or channel number | |
| Playback Speed | Speed forward 1x ~ 16x | |
| Payment Terms: | TT, Western Union, Paypal |
|---|---|
