5.0MP Network IR IP Dome Cameras 1
  • 5.0MP Network IR IP Dome Cameras 1

5.0MP Network IR IP Dome Cameras

Model:IGV-VD612IP-5MP
Brand:IGreenView
Origin:Made In China
Category:Security & Protection / Burglarproof
Label:5MP IP Camera , 5MP@30fps IP camera , 5MP Realtime camera
Price: US $125 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

IGreenView Optoelectronic Co.,Ltd

Free MemberGuang Dong - China
Live Chat:Last Online:13 May, 2016

Product Description

l 1/1.8" SONY 6.44M-Effective Pixel Color CMOS Image Sensor

l Support network video of H.264 HP/MP/BP 720P,960P,1080P,3MP(2048*1536),5MP(2560*2048),6MP@30fps resolution. Min.illumination (color) : 0.001Lux/F1.2

l With 2Pcs IR LEDs,UP to 7-10 meters IR Distance ,Day@Night surveillance

l 2.8mm Megapixel Lens, Wide Angle

l Built-in Microphone, POE, Micro SD card slot, Audio In/Out Cable,

l Support BNC Testing Output, Reset.

l Support Standard RTSP and FLASH Network, Support Multi Browsers (Internet Explorer, Firefox, Safari, Chrome, Opera etc.) on  Windows and Mac OS.

l Support ONVIF 2.4, P2P Mobile and PC Remote Access

l Water Resistant Rate:IP65,Vandal Proof,Refined Modeling.





Model

IGV-VD612IP-3MP

IGV-VD612IP-5MP

Sensor

1/2.8” CMOS sensor

1/1.8”Sony CMOS sensor

Min. Illumination (Color)

0. 01Lux/F1.2

0.001Lux/F1.2

Shutter

1/5s-1/50,000s

Day&Night

IR-CUT Auto,  Black,  Color

Images Settings

Images, D&N Mode, Automatic Iris, Metering, White Balance, Exposure,

Shutter, Mirror, Noise

Lens

2.8mm Megapixel Lens, Wide Angle.  (4.5mm 12MP HD Lens optional)

IR Distance

7-10 Meters  (23 - 33 FT)

Video Resolution

3M(2048*1536)@30FPS

5M(2560*2048)@30FPS

Codec

H.264 HP/MP/BP

H.264 HP, H.265

Video Frames

Real Time,  Max. 25fps  (50Hz); Max. 30fps (60Hz)

Codec Mode

VBR/CBR

Data Rate

Three Streams,  Main: 1500kbps-8Mbps  Sub: 50-1000kbps

Frames

1-30 frame adjustable

Record

Video and Audio Recording and Playback,  MP4 Format

Internet

Free P2P, No Port Forwarding Needed. Free DDNS

Network Video

Standard RTSP, FLASH

Remote Access

QR Scan Free APP (iphone/Andriod Smartphone), WEB (IE/Safari/Chrome/

Firefox/Opera), Plug and Play NVR

User Access

8

Compatibility

Onvif 2.4 and latest version, Customized compatibility with main stream

CMS and NVRs: Hikvision, Dahua, Samsung, Nuuo, Miletone, Axxon,

Luxriot, etc.

WIFI

NO

POE

Inside, IEEE802.3af

Network Protocol

IPv4/v6, RTSP/RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS, FTP,

DDNS, PPPOE, SMTP, SIP, UPNP, SMTP, RTSP

System

Time Sync. (Auto/Mannual//NTP/PC/NVR/RTC) Online upgrade /Alarm

/System Status Reports

Audio&Video

Audio (G.711A/U) / Video (Three Streams) / Video Mask /

Motion Detection

Storage

Micro-SD (Max. 32G  for Snapshot and Recording Locally), NVR, Cloud

Events/Security/Log

Events (Events Setting/Schedule Recording/Schedule FTP and Snapshot),

Security (Filter of User and IP Address),

Log (System/Alarm/Acceess etc.)

Network Interfaces

RJ-45,  10/100Base-T

Microphone

Inside Water Proof MIC (- 32dB)

Audio via Cable

Audio In/Out, Talkback  (G.711A, G.711U)

Local Storage

Inside Micro SD up to 32G

Others

Hardware Reset, CVBS Analog Output

Materials

Outer: Zinc alloy metal, The window and the ball cover: PC, Inter: ABS

Color

White (OEM)

Application

Indoor and Outdoor

Installation

Wall-mounting, Ceiling-mounting

Power Supply

DC12V & POE

Work Temperature

-10-50

Work Humidity

10%-90%

Size

ϕ102*56mm  ( ϕ4.02*2.2 in)

Reliability

IP65, Waterproof,  Vandal Proof

Weight

450g




Payment Terms:TT/ western union/ paypal

Product Image

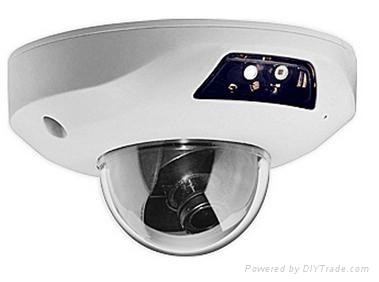

5.0MP Network IR IP Dome Cameras 1
