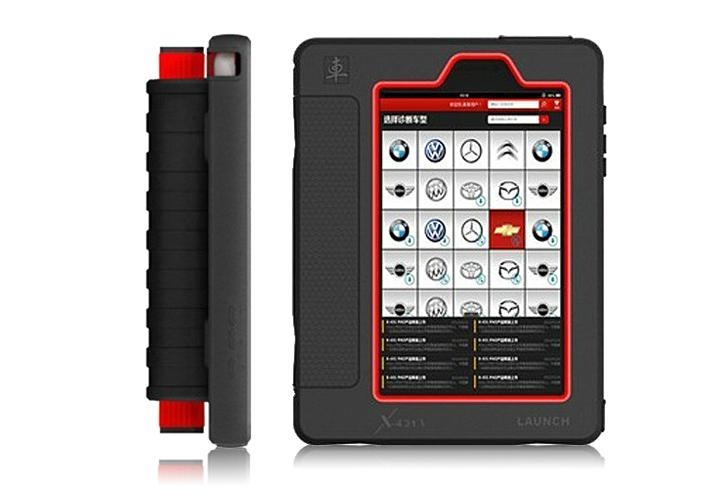

Launch X431 V(X431 Pro) Wifi/Bluetooth Tablet Full System

X431 V Full System Automotive Diagnostic Tool is a new diagnostic tool release by LAUNCH. It support one click online update, support full range car model from USA, European and Asian. X431 V is perfect tool for car diagnose.

Description:
Launch X431 V with Bluetooth/Wifi based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. X-431 V completely substitutes X431 IV and X431 Diagun III. It passes on Launch advantages in car fault diagnostic technology, such as vast car model coverage, powerful test function, special function and accurate tast data, etc.,  X-431 V achieves the full car model and full system fault diagnosis through the bluetoooth communication between DBSCar connector and intelligent mobile terminal. X-431 V taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.

Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese

Support Wi-Fi/Bluetooth

X431 V Product Features:
Panel PC:High configuration of hardware, Fast running speed
Capacitor Screen: Multi-touch capacitor screen,More smooth operation
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, Small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia, other software application,etc.
One Click Update: You do not have to download software to memory card anymore, can do one click update directly through your machine.

X431 V Original Supported Car Models:
 Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Benz, Fiat, Holden, Maruti, Opel, Peugeot, Saab, Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton, Qirui, Tlisuzu, Zhongshun, EOBD2, Euroford, GM, Jagar, Renault, Smart, Sprinter, USA Ford, VAZ, VW, Changcheng, Dacia, Ford, HaoQing, Jinlong, Liuwei, Rover, ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda, Suzuki, BMW, Daihatsu, Mitsubishi, Porsch, Toyota, Volvo, Audi, Chr er, Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo and Subaru.


Pannel PC Parameters:
Operating System: Android
CPU: Dual core 1GHz
Battery: 3000mh, rechargeable polymer lithium battery
Standby time: it is subject to the using environment. Generally it can keep working for 4 hours.
Extension memory card: 32G Micro SD(TF) card supported
Memory: 512MB
Storage capacity: 2GB
LCD: 7.0 inch
LCD resolution: 1024X600
Touch screen: 5 points capacitive touch screen
Cameras: 2 mega rear and 0.3 mega front
Working temperature: -10°C ~ 55°C (14°F to 131°F)
Storage temperature: -20°C ~ 70°C (-4°F to 158°F)

DBSCar Connector Parameters:
Working Voltage: 9 ~15V
Average working current: about 35mA
Standby current: about 25mA
Working temperature: -20 to 55°C (-4°F to 131°F)
Storage temperature: -30 to 70°C (-22°F to 158°F)
Storage humidity: <80%
Working humidity: <60%
Net weight: about 26g
Bluetooth Distance: 10M (without obstacle)


What is Difference Between X431 V and X431 IV?

Operation System:
X431 IV: LINUX
X431 V: Android

Screen
X431 IV: LCD Touch with backlight, 240*320
X431 V: 7 inch Capacitive Touch

Processor:
X431 IV: 72MHz 32-bit ARM7
X431 V: 1GHz Dual Core

Memory:
X431 IV: 16M
X431 V: 512M

Storage:
X431 IV: 1GB CF Card
X431 V: 2GB, extendible to 32G

Battery
X431 IV: No
X431 V: 3000mAh, Endurance: 4h

Printer:
X431 IV: Thermal Printer
X431 V: NO

Diagnostic Method:
X431 IV: Test Cable
X431 V: Bluetooth/WIFI

Diagnosis
X431 IV: Wired diagnosis, independently diagnose full system and analysis & display through smart terminal.
X431 V: Bluetooth diagnosis, independently diagnose full system and analysis & display through smart terminal

Diesel Vehicle
X431 IV: Yes, 12V
X431 V: NO

Upgrade method
X431 IV: Download to CF Card
X431 V: Online one-click upgrade

Multi Group Display
X431 IV: 2
X431 V: 4,6,12

Camera:
X431 IV: NO
X431 V: Front: 0.2 megapixel, Rear: 2.0 megapixel

Startup Time:
X431 IV: 35s
X431 V: 25s

Picture/Audio/Video/Instant Chat
X431 IV: NO
X431 V: YES

Design Feature:
X431 IV: Encapsulate design at side and bottom, anti-knock, powerful function, economical cost
X431 V: Tablet, Multi-touch, Customer Management

Packing List:
 X-431 V pad computer
Password envelope
X-431 v protection sleeve
DBScar diagnostic connector
OBD II extension cable
Cigarette lighter cable
Power adaptor
USB data cable
Non-16pin connector
