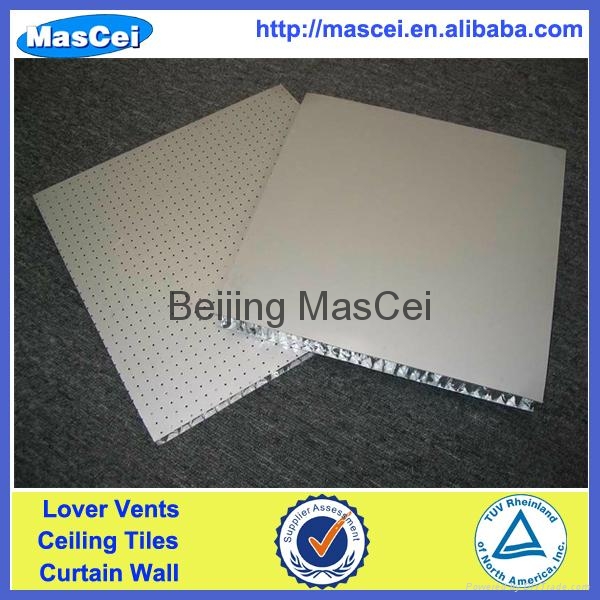

Aluminium Honeycomb Composite Panel And Aluminium Sandwich Wall Panel

Products Information
Aluminium honeycomb panel is structured of the interlining of honeycomb type. It is a kind of high strength external building material, which was only applied in the aeronautic industry in the past. The surface layer of aluminium honeycomb panel is aluminium alloy panel, while the central layer is the honeycomb structure made of aluminium foil. Aluminium honeycomb panel has the characteristics of light weight, high intensity, high stiffness, strong corrosion resistance and stable performance.

Compared to other wall decoration materials, Aluminium honeycomb panel has good heat preservation and heat insulation. The reason is that the air between the face and the bottom layer is separated into lots of cellular closed holes, for which the propagation of heat and sound wave is extremely limited. Today, aluminium honeycomb panel has been widely used in the decoration of modern architectures, train, auto mobile and ship manufacturing industries.

Features

Weight: One of the primary reasons for utilizing aluminium honeycomb panels is that they exhibit excellent strength-to-weight ratios compared to traditional construction materials.

Strength: The ability to configure panels with different materials allows us to create much stronger panels than one can achieve with solid structures.

Fire Resistance:  Mascei uses a number of materials that are non-combustible and self extinguishing. Most flammability ratings and building codes can  be easily met with some combination of materials.

Thermal Control:  Most aluminium honeycomb panels have excellent insulation properties simply due to the nature in which they are designed. Since both honeycomb and foam cores trap air between the skins, they are inherently insulating to some degree.

Sound Control:  While we do not specialize in acoustical panels, we are happy to incorporate any type of sound deadening specifications into the composite panels that we design.

Impact Resistance: Impact resistance can be accounted for by adjusting the honeycomb cell size, utilizing different core materials and skins, or adding thickness to the surface material or core.

Moisture Resistance: All types of aluminium honeycomb cores can be used to improve water and moisture resistance.

Classify
According to the lacquer of Coating,
A. PVDF aluminum honeycomb panels
B. Polyester aluminium honeycomb panels
Specification
A. General size
   Length:1000mm-5000mm
   Width:1220mm-1500mm
   Thickness:6.0mm, 10.0mm, 15.0mm, 20.0mm, 25.0mm

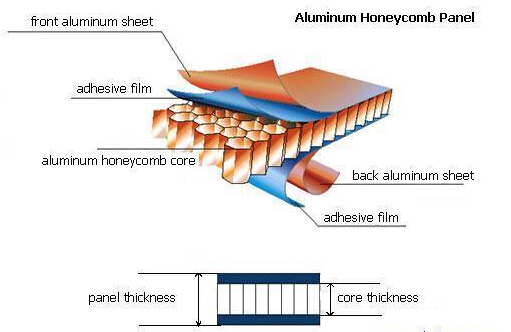

Aluminium honeycomb panels' structure

B. If you need special specification of aluminium honeycomb, please tell us.
Applications of aluminium honeycomb panels
1) Building exterior curtain walls
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
4) Shop door decoration .
5) Advertisement board display platforms and signboards.
6) Wallboards and ceilings for tunnels.

7) bodywork of commercial transportaion vehicle and container truck,shipbuilding

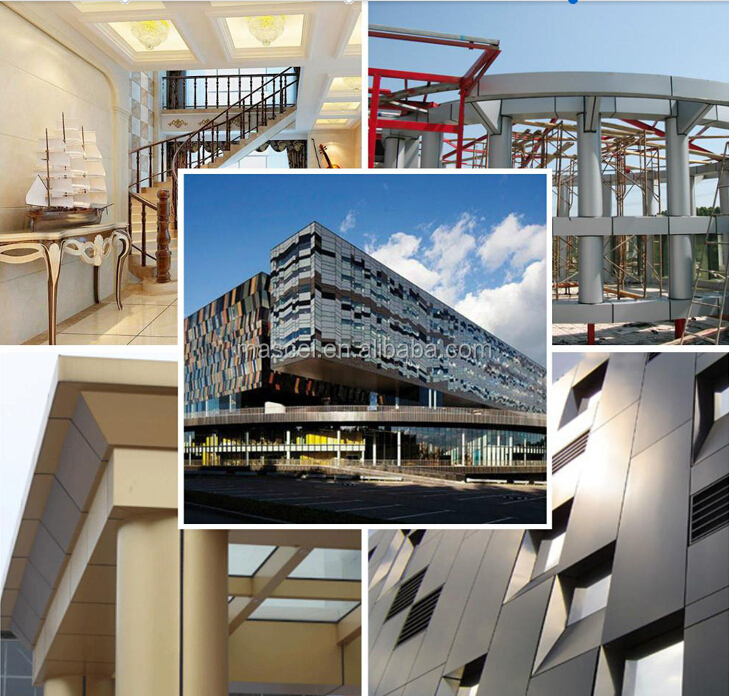

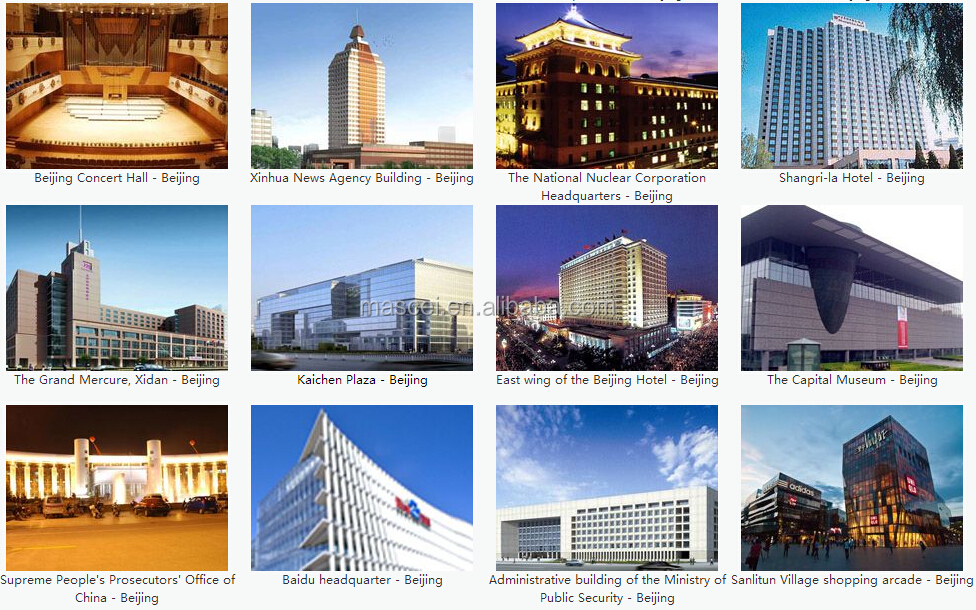

Project Show
