| Model: | AT-002 |
|---|---|
| Brand: | TS |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Non-metallic Mineral Products |
| Label: | aluminum titanate , sprue bushing , ceramic sprue cup |
| Price: |
US $10
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:03 Nov, 2016 |

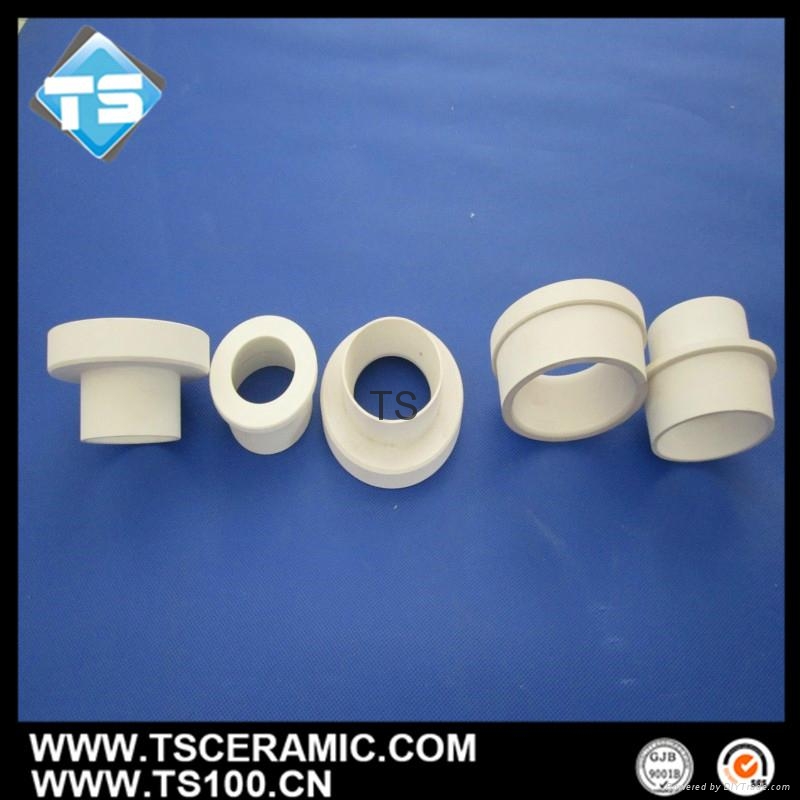

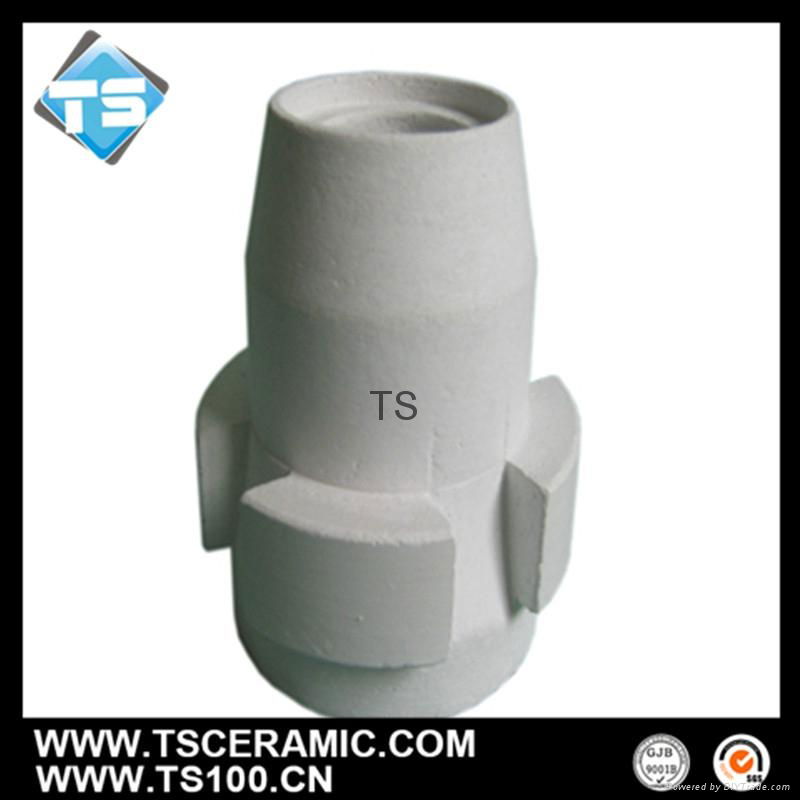

Aluminium Titanate Sprue Bushing:
Product Description:
Aluminum Titanate Sprue bush is also known as insulating sleeve. It is a part on the low pressure casting machine for alloy wheel and other similar casting. Bushings can make alloy liquid smoothly filling mould without inclusions and help exhaust in the cavity for avoid secondary oxide slag during casting.
Physical and Chemical Index:
|
Items |
Datas |
|
Bulk Density |
3.3-3.5g/cm³ |
|
Flexural Strength |
30-50Mpa |
|
Porosity |
<8% |
|
Thermal-expansion coefficient |
0.5-1.5*10-6℃ |
|
Heat Conductivity (800℃) |
0.86W/m.K |
Feature:
1,Excellent thermal shock resistance
2,No infiltration with the non-ferrous metal
3,Excellent wear resistance
4,Low thermal-expansion coefficient
5,Long service life
Popular Dimension:
|
Diameter |
Thickness |
Length |
|
Φ60、Φ80、Φ100 |
18mm |
<1,150mm |
We can manufacture the tubes based on your drawings.
