| Model: | FD2B-4 |
|---|---|
| Brand: | Faraday |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | 40KW alternator , ac alternator , brushless alternator |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:15 Sep, 2015 |

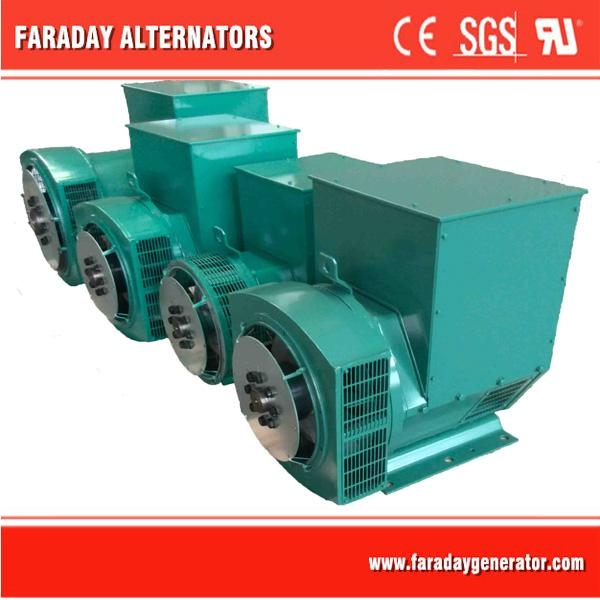

FD2 Series
Alternator Specification:
3-PH, 50HZ/60HZ,1500RPM/1800RPM, 190V-690V(Also can be made according to customers’ special requirements)
| Alternator Model | FD2 Series |
| Power | 34KW-70KW |
| Exciter type | Brushless, Self excitation system |
| Power factor | 0.8 |
| Voltage regulation | ± 1.0 % |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Winding Pitch | 2/3 |
| Winding Leads | 12 |
| Waveform Distortion | NO LOAD < 1.5% NON-DISTORTING BALANCED LINEAR LOAD < 5.0% |
Standard Feature
• Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSA22.2-100
• Single or double bearings are available,options for all kinds of adaptors and disc plates
• 12-end reconnectable winding terminals to get different voltages
• Standard "H" insulation class
• Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts
• Standard sealed maintenance-free bearings
• Standard IP23 protection, optional severe environment protection
• Optional auxiliary winding in excitation system
Options:
• Winding RTD
• Winding protection thermistor and relay
• Anti-condensation heater
• Air filter
• Droop CT
