normally open door contact switch | magnetic proximity switch

Model:soway
Brand:soway
Origin:Made In China
Category:Electronics & Electricity / Switch / Sensor Switch
Label:reed switch , intelligent switch , door contact switch
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Soway Tech Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:23 Sep, 2022

Product Description

Introduction

The principle of Magnetic switches is produce a magnetic field around the sensor through changed the position and polarity of trigger so that make the contacts of the sensor action. Hermetically sealed, life at least 1 million times, easy installation, can adjustment according to different customers' application environment.

Magnetic door switch, Magnetic contact sensor:

  • Classic design, No standby power requirement.
  • Choice of normal open or normal closed
  • Various output design, 0-5V, Resistance,NC, NO.
  • Customer can define activated distance, cable length and connector.
  • Hermetically sealed, suit to tough environment and long life.
  • Special disign: consult SOWAY for more detail.

Contact Type

Normally Open

Normally Closed

Normally Open High Voltage

     Change Over

Contact Code

AL1

BL1

BH1

AH1

CL1

CH1

Switch Power(Max)

10W

5W

70W

70W

5W

100W

DC Switched Voltage(Max)

180V

175V

200V

200V

175V

500V

AC Switched Voltage(Max)

130V

125V

250V

250V

125V

240V

DC Switched Current(Max)

250mA

280 mA

1000mA

1000mA

280 mA

400mA

AC Switched Current(Max)

250mA

200 VDC

1000mA

1000mA

200 VDC

1000 VDC

Operating Temperature

-40~80°C

-40~80°°C

-40~80°C

-40~80°C

-40~80°C

-40~80°C

contact us for more information.


Product Image

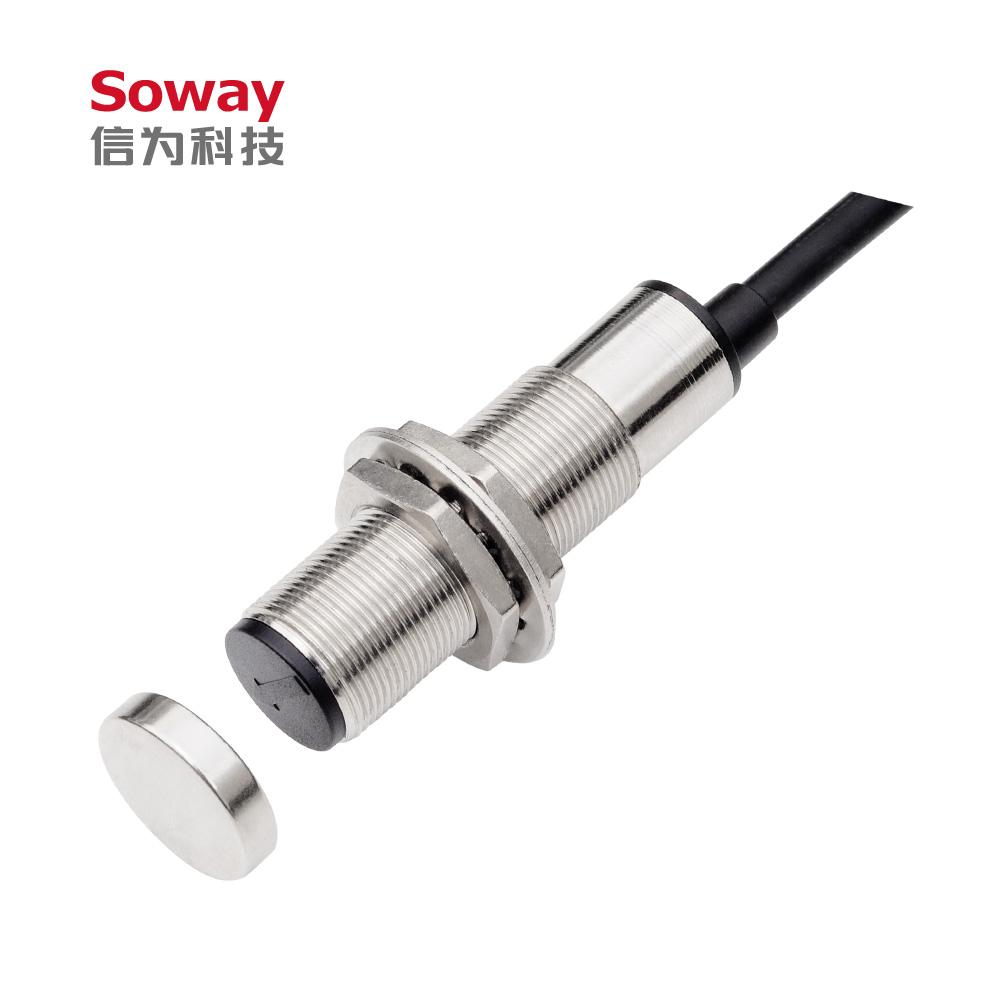

normally open door contact switch | magnetic proximity switch  1
