| Model: | CMX-800 |
|---|---|
| Brand: | COMIX |
| Origin: | Made In China |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | rubber , conveyor belt , vulcanizer |
| Price: |
US $13000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Jul, 2017 |
Industry Application
•Metallurgical plants
•Mines
•Electric power plants
•Docks
•Rubber
•Escalator
Product Show

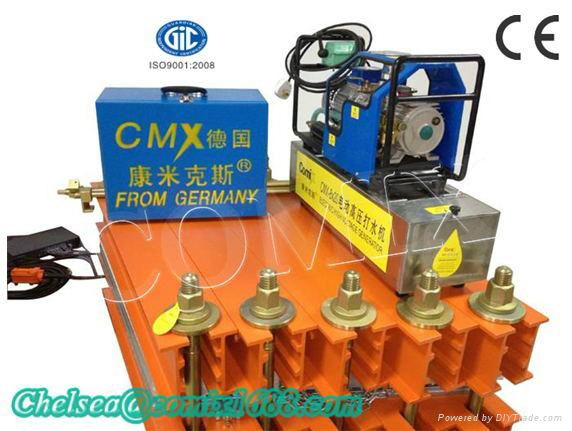

COMIX is an emerging Germany high-end brand,which mainly involves the mine mechanical and electrical, tape equipment and other fields. COMIX advanced touch screen + PLC controlled vulcanizing machine is the most advanced and popular with the users all over the world, which is an automatic intelligent touch screen + PLC controlled 4.0 belt vulcanizing equipment. All materials used in COMIX vulcanizing machine, such as the PVC module intelligent control system, heating element, control system, high precision platinum sensors, are derived from Germany.
COMIX Advantages

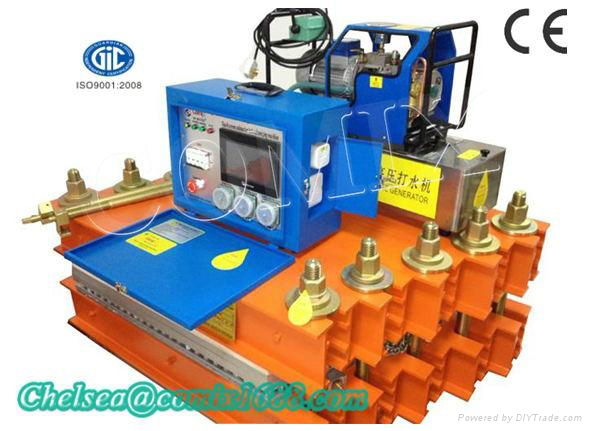

1.COMIX Controller (touch screen + PLC controlled).
2.Use it like the mobilephone, Please touch it lightly!
3.2015 Newest COMIX pressure bags - 22 degree or other degree accords to your requirements.
COMIX heating platen-With rapid water cooling system
4.Aviation light and hard aluminum alloy -more light, more hard, more convinient!
5. Other machines we can supply: more information pls freely to visit our website--www.comixvulcanizer.com
Technical Parameters
1.Machine Maximum size: from 300MM-6000MM;
2.Voltage: 220V 380V 415V 660V 50HZ;
3.Fast Cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4.Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 25 minutes;
5.The temperature difference of sulfide surface: ±2°c.
6.Temperature adjustment range: 0~300°c.
7.Vulcanizing pressure: 0~2.5 MPa (details refer to users’ specifications and factory markings); 8.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10. rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
11. Users could order spare electric pumps additionally according to requirements.
| Specification Sheet of COMIX Vulcanizing Machine | ||||||
| Model | Width of Conveyor Belt(mm) | Rectangle Spec (mm) | Hot Plate Size (mm) | Power(KW) | Machine Size(mm) | Machine Weight(kg) |
| CMX-650 | 650 | 650*820 | 820*800 | 10 | 1000*820*585 | 410 |
| 650*1000 | 1000*800 | 12 | 1000*1000*585 | 500 | ||
| CMX-800 | 800 | 800*820 | 820*950 | 12 | 1200*820*585 | 500 |
| 800*1000 | 1000*950 | 14.5 | 1200*1000*585 | 600 | ||
| CMX-1000 | 1000 | 1000*820 | 820*1150 | 14.5 | 1400*820*585 | 600 |
| 1000*1000 | 1000*1150 | 17 | 1400*1000*585 | 700 | ||
| CMX-1200 | 1200 | 1200*820 | 820*1350 | 17.3 | 1600*820*640 | 730 |
| 1200*1000 | 1000*1350 | 20 | 1600*1000*640 | 880 | ||
| CMX-1400 | 1400 | 1400*820 | 820*1550 | 20.3 | 1800*820*750 | 850 |
| 1400*1000 | 1000*1550 | 23.5 | 1800*1000*750 | 1000 | ||
| CMX-1600 | 1600 | 1600*820 | 820*1750 | 22 | 2000*820*795 | 1080 |
| 1600*1000 | 1000*1750 | 25 | 2000*1000*795 | 1380 | ||
| CMX-1800 | 1800 | 1800*820 | 820*2000 | 24 | 2250*820*900 | 1370 |
| 1800*1000 | 1000*2000 | 28 | 2250*1000*900 | 1560 | ||
| CMX-2000 | 2000 | 2000*820 | 820*2200 | 26 | 2450*820*900 | 1500 |
| 2000*1000 | 1000*2200 | 31 | 2450*1000*900 | 1780 | ||
| CMX-2200 | 2200 | 2200*820 | 820*2400 | 29 | 2650*820*980 | 1670 |
| 2200*1000 | 1000*2400 | 35 | 2650*1000*980 | 1960 | ||
| CMX-2400 | 2400 | 2400*820 | 820*2550 | 40 | 2800*820*1060 | customed |
| 2400*1000 | 1000*2550 | 45 | 2800*1000*1060 | customed | ||
| CMX -2600~3600 | 2600~3600 | (2600~3600) *820 | 820* (2750~3750) | 42~69 | (3000~4000) *820* (1060~1200) | customed |
| (2600~3600) *1000 | 1000* (2750~3750) | 48~80 | (3000~4000) *1000* (1060~1200) | customed | ||
