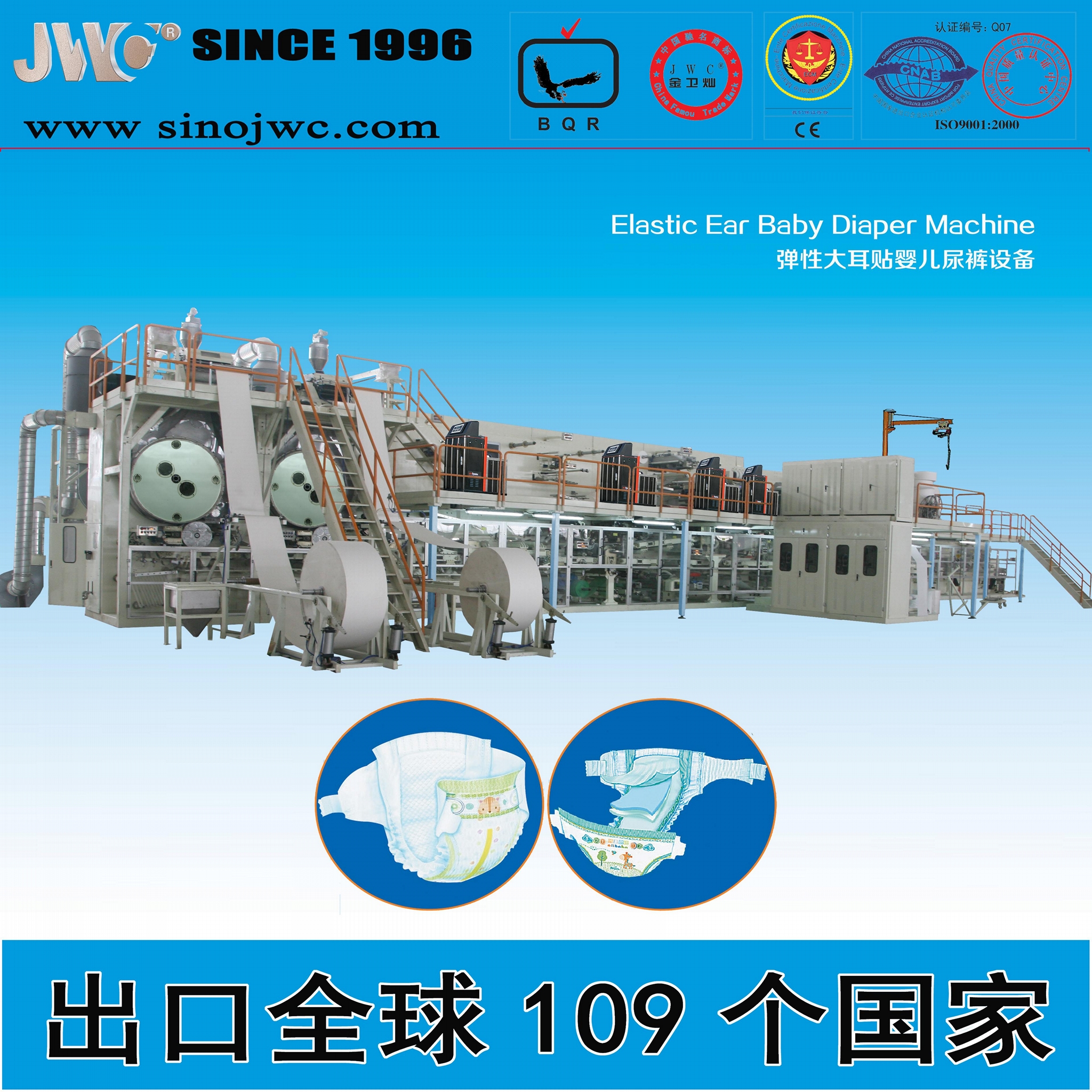

Semi-Servo Elastic Ear loop Baby Diaper Machine

Model:JWC-NK550-EB-SV
Brand:JWC
Origin:Made In China
Category:Industrial Supplies / Paper Machinery
Label:baby diaper machine , full servo diaper , diaper machine
Price: US $51.5 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Jiangsu JWC Machinery co.Ltd

Biz MemberJiang Su - China
Live Chat:点击这里给我发消息Last Online:14 Oct, 2020

Product Description

Model



Drive Mode

Speed (Pcs/min) Weight (T) Capacity Machine size (m) (L*W*H)
JWC-NK550-EB-SV Full-servo 450-550 85 320kW 32x8x5
JWC-NK450-EB Semi-servo 350-450 42 140kW 26.5x6x4.5






Specifications:1. Design speed 450pcs/min
2. Working speed 350-400 pieces/min
3. Qualified rate 97%
(calculate based on 7.5 hours, the rate between qualified products and total production quantity, except substandard products caused by glue applicator error)
4. Production efficiency ≥85%
( calculate based on 7.5 hours, the rate between real production quantity and theory production quantity)
5. Capacity 270KW
6. Power Three phases four wires 380V/50Hz
(3×95mm2+1×35 mm2+1×16 mm2)
7. Lowest pressure 6kg/cm³
8. Air compressor ≥0.8Mpa 1.8m³/min
9. Total weight About 42 tons
10. Machine size 26.5×6×4.5 M (L×W×H)
11. Working space 32×10×6 M (L×W×H)
12. Machine color Metal beach yellow+ sky blue can be changed by order
13. Product size S、M、L、XL (according to order)
14. Operation direction Can be customized
(Facing the frontal of the machine)
15. Containers 4X40HQ+1X20FT
Advantages:Machine controlling way: servo motor+ frequency converter+PLC+tri-axis driving
Export Markets:all
Pricing:0-800000 usd
Payment Details:T/T,L/C
Min Order:1SET
Ship Date:50-80DAYS
Standard Met:CE,ISO9001
