1000M network signal surge protector with 24 ports

Model:TQS-NH-24
Brand:tianqin
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment
Label:network signal , surge protector , 1000M transmission
Price: US $260 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen World Fortune Technologies. Co., Ltd

Free MemberGuang Dong - China
Live Chat:
Last Online:22 Feb, 2016

View all products. (15)

Product Description

  1. Product features
  • Multi stage surge protection
  • Gas-Tube + TVS technology
  • TVS array technology
  • Dual protection in Common mode and differential mode, multi-channel optional
  • Low insertion loss
  • Quick response
  • High current capacity
  • Low limited voltage
  • 24 ports
  1. Applications
  • Lightning protection of 100/1000Mbps network equipments
  • Computer
  • Server
  • Switch
  1. Technical data



Model

TQS-NH-24

Nominal operating voltage Un

5V

Nominal discharge current In (8/20μs)

3KA

Maximum discharge current Imax (8/20μs)

5KA

Protection level Up (8/20μs,3KA）

≤20V

Response time Ta

≤1ns

Transmission rate

1000Mbps

Insertion loss

≤0.5dB

Protection modes

1/2, 3/6, 4/5, 7/8

Protection route

24

Dimension

482*86*44mm

Weight per unit

120g

Mounting type

Series connected before the protected equipments

Housing material

A3 steel

Index of protection

IP20

Operating environment

Temperature:-40—+85℃ humidity: ≤95%

warranty

Five-year warranty, three-year replacement

Related items

TQS-NH, TQS-NH-4, TQS-NH-8, TQS-NH-16




Product Image

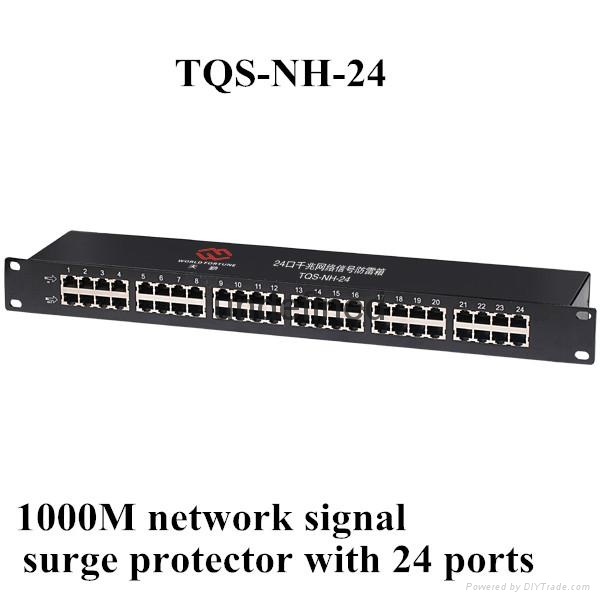

1000M network signal surge protector with 24 ports 1
