Ultrasonic Cutter

Model:UC800
Brand:Longco
Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Machinery
Label:Ultrasonic Cutter , Ultrasonic Food Cut
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Longco Industry Co.,Limited

Free MemberFu Jian - China
Live Chat:
点击这里给我发消息Last Online:26 Mar, 2020

Product Description

Ultrasonic Cutter (Ultrasonic Cutting Machine)

Product Patent NumberZL201230021973.5ZL201420078395.2

Ultrasonic Cutter is one of the specialized ultrasonic equipment for cutting, which makes the material to be cut heating and melting by ultrasonic energyso as to achieve the purpose of cutting the material. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzz balls and other shortcomings of laser cutting machine.

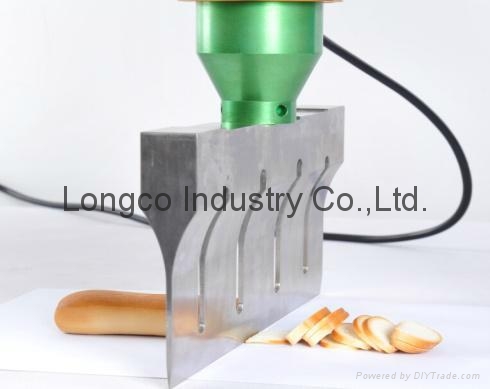

The ultrasonic food cutting machine (cutter) is composed of ultrasonic transducer (converter), booster, titanium blade and digital generator. And our ultrasonic cutter will be able to install easily in your current production system.

As the high-grade ultrasonic equipment manufacturers, our company can provide you with the best ultrasonic core parts (transducer, booster, and generator) and ultrasonic application solutions based on our strong technical strength and strict quality management system.



The advantages of ultrasonic cutting

Cut the material quickly and precisely without deformation.

Smooth and traceless cutting edge, no raising, fuzzing, spinning, wrinkling.

  • It can sealing the fabric when cutting.

Easy operation, low cost, fast speed, high efficiency, no pollution.

The cutting blade is made of titanium. It is completely inert and enduring material.

Smooth and traceless cutting effect.







Difference between common cutting and ultrasonic cutting



Common Type

Ultrasonic Cutter Type

Cutting speednon-woven fabrics)

1m/s

10m/s

Cutting effect( )

Common

Good

Cutting thickness(rubber)

Within 1mm

Within 20mm

Cutting and welding effect

Not suitable

Good

Applied pressure

large



common

Rubber

Not suitable

Good

Plastic Sheets

Not suitable

Good

Plastic Mold

Not suitable

Good

Plastic film

Common

Good

Ordinary fabric

Common

Good

Synthetic fabrics

Not suitable

Common

Metallic foil

Common

Good

Food

Common

Good



Specification

Type

                   UC100

 (Small hand held Cutter)

UC800

(Rubber Cutter)

UC500

(Food Cutter)

Frequency(kHz)

40

40

20

Voltage / Power

120V, 230V/ 100W

120V, 230V/ 800W

120V, 230V/ 500W

Outside dimension(mm)

Drive Power265L*155W*170H

BladeΦ32*170

Drive Power380L*250W*150H

Blade72L*82.5W*25.5 H

Drive Power450L*300W*135H

Blade130L*255W*26H

Weight(Kg)

Drive Power3.6kg

Blade0.2kg

Drive Power11.7kg

Blade0.6kg

Drive Power: 8kg

Blade4kg

Application

Natural Fiber

Synthetic Fiber

Thin plastic products

Paper, tape and Film

Rubber, Silica Gel

ABS\PP\PE with thickness no more than 2mm

Polyester Fabric

Rubber

Nylon

Tread sidewall, Triangular circle and etc.

Synthetic fabrics

Plastic, Sheet, etc.

Cake

Biscuit

Cheese

Bread

Pizza

Candy

Dried fruits

Features

Alternative blade, improve productivity, reduce costs

Cooling hose, more stable performance

Compact design and light weight, reduce processing fatigue

Cut the material quickly and precisely

Large output and cutting easier

  • Smooth and traceless cutting edge

High precision cutting, rubber unchanged

Clean cutting surface, bonding performance

Fast speed, high efficiency, no pollution

Low cost, simple operation, no shaking when cutting

Smooth and traceless cutting edge

Reduce the debris generated when cutting food, cleaning time, increase productivity

Effective cutting depth greater than 50mm

Titanium blade, high efficiency and durable

Can be used on existing food processing and packaging equipment




Price Terms:FOB FuZhou
Payment Terms:T/T
Packing:Individual Box
Lead Time:Within 5 days after receiving the payment
