| Model: | (WD-GSP) |
|---|---|
| Brand: | WORLD |
| Origin: | Made In China |
| Category: | Construction & Decoration / Building Steel & Structure |
| Label: | Walkway Plank , Steel Plank , Metal Decks |
| Price: |
US $10
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:29 Jul, 2015 |

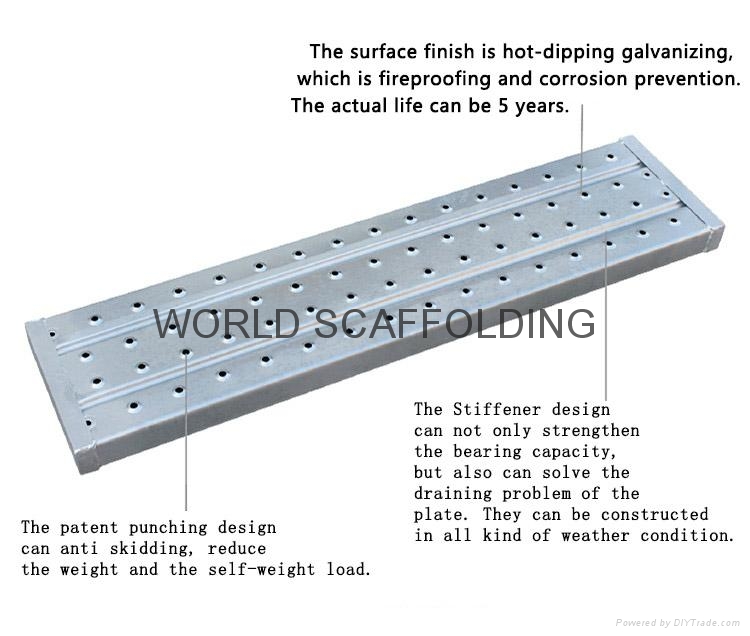

The features of the Steel Plank:
Better Side box design with better anti - deforming capability
Strengthen support designs with much stronger support force
500mm support spacing with better anti - deforming capability
hot dip galvanizing surface & lifespan > 5 years
Punching design to anti-skid & lighten weight
Stiffener design to reinforce the load bearing capacity
The Specification of the Steel Plank:
Length：4m,3m,2m
Width：500mm,480mm,450mm,420mm,300mm,250mm,240mm,225mm
Height：50mm,45mm,38mm,
|
Width(mm) |
Height(mm) |
Plate Thickness(mm) |
Length(mm) |
|
210 |
45 |
0.9-2.5 |
500-4000 |
|
225 |
45 |
0.9-2.5 |
500-4000 |
|
240 |
45 |
0.9-2.5 |
500-4000 |
|
250 |
40 |
0.9-2.5 |
500-4000 |
|
250 |
50 |
0.9-2.5 |
500-4000 |
|
300 |
63.5 |
0.9-2.5 |
500-4000 |
|
300 |
65 |
0.9-2.5 |
500-4000 |
| Payment Terms: | TT/ LC |
|---|---|
